Thor Fiber H-16ATSC-IP-16QAM QAM to IP Gateway – ATSC QAM IPTV Broadcast System Up to 16 Freq

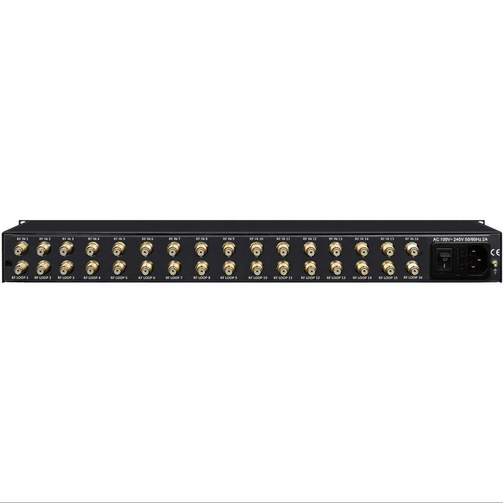

Thor Fiber H-16ATSC-IP-16QAM 16 RF Inputs to IP outputs +16 RF Outputs (RF to IP Gateway + RF to RF transmodulator). This unit can take existing ATSC channels and convert them to IP streams and QAM RF channels simultaneously (RF input = IP + RF output).

FTA tuner inputs can be set to any non-adjacent carrier and converted to IP UDP unicast, multicast streams.
After setting the frequency the unit scans for Video/Audio programs and once discovered they can be converted individually to IP streams or re-modulated on different frequencies(channels) or a different modulation standard.

It supports up to 512 IP inputs and one IP (MPTS) output through GE1 and TS input for re-mux through 2 ASI ports. This is the next generation of Gateways of which will create a seamless conversion of RF programs to IP TS that are easily managed via a secure NMS system developed by Thor to help distribute all of your programs via IP and ASI. Convert 16 CATV in either DVBS2, QAM, or ATSC to IP or Transmodulate one format of RF to another form of RF. This family of products equipped with 16RF tuners is model dependent for QAM/ ATSC/ DVBS2 and works as RF to IP Gateway and can output Multicast or Unicast also can act as an RF Translator.

Because we use RF Tuners with specific modulation formats, these models are all independent of each other and must be ordered correctly because they are hardware based; we offer them in standards used across the globe so you can use your specific modulation standard for your country (please check model selection, reach out to your local dealer or call Thor directly). Essentially there are 3 hardware sets we manufacture, one specifically for ATSC, one for DVBS-S2, and the third is for QAM (the QAM model has built in modulation standards for QAM Annex A and Annex B, DVB-T, DVB-T2, and ISDB-T; this is selectable through the NMS GUI)
