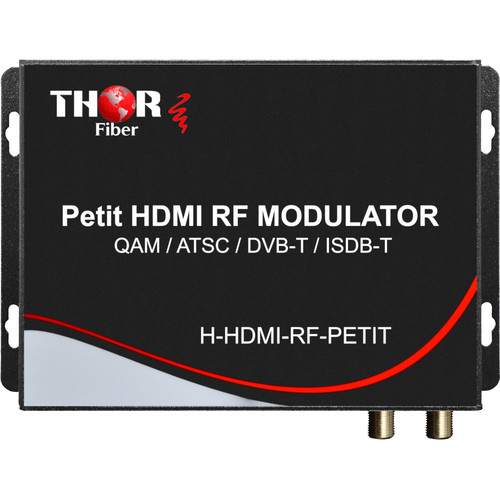

Thor PETIT HDMI RF Modulator


Key Features
  • HDMI to Coax RF Conversion
  • Supports up to 1080p Input
  • Supports QAM, ATSC, DVB-T, ISDB-T
  • +24 dBmv HDTV Coax Distribution Power
  • MPEG2 Video and AC3 Audio Encoding
  • 57-1000 MHz RF, Channels 2-135
  • Easy-to-Use Network Management System
  • HDCP Compliant

2,399.00 د.إ

Thor RF-PETITĀ Overview

ThisĀ PETIT HDMI RF ModulatorĀ fromĀ ThorĀ enables the conversion and transmission of video signals from HDMI sources such as a camera, DVD, receiver, or computer device to RF television broadcast signals. The unit’s +24 dBmv RF output is powerful enough to transmit a signal for an HDTV broadcast to hundreds of TVs and supports QAM, ATSC, DVB-T, and ISDB-T CATV formats.

The unit supports video signals up to 1920 x 1080p at up to 19.5 Mb/s, MPEG2 video encoding, and AC3 audio encoding. Management is made easy with the built-in network management system (NMS) which is accessed via the PETIT’s 10/100 Ethernet LAN port. The NMS allows you to control the bit rate, channel selection, and resolution and to monitor your broadcast. It supports 57 to 1000 MHz RF signals and channels 2 to 135. Its compact form allows it to be located anywhere in your broadcast setup, and the unit can be wall mounted. A 12 VDC power adapter is included to get the modulator quickly powered up and running.

  • Allows you to distribute HDMI video to hundreds of HDTVs using standard coax cables.
  • It supports video up to 1920 x 1080p video with MPEG2 and AC3 encoding.
  • The unit is compatible with any HDTV compatible television, and its output can also mix with existing channels.
  • Custom network management system (NMS) to control, set up, and monitor the broadcast over Ethernet.
  • The modulator outputs QAM, ATSC, DVB-T, or ISDB-T signals, which you select via the NMS.
  • The unit incorporates one HDMI and one coax RF ATSC/QAM antenna input; it also features one HDMI monitoring output and one coax RF broadcast output.
  • Power is provided by an included 12 VDC power supply, and built-in tabs permit mounting the item securely to a wall or desktop surface using separately available mounting screws.
SKU: H-HDMI-RF-PETIT Category: Tag:

Thor RF-PETITĀ Specs

Video and Audio
Inputs
1 x HDMI Type-A
1 x RF Coax
1 x USB Upgrade
Outputs
1 x RF Coax
1 x HDMI Loop
Network Port
1 x 10/100 Ethernet for NMS
RF Format
QAM
ATSC
DVB-T
ISDB-T
Video Encoding
MPEG2
Encoding Data Rate
2 to 24 Kb/s
Video Format Support
Input:
1080p60
1080i50
720p60

Output:
1080p30 Maximum

Video Bit Rate
1 to 19.5 Mb/s
Audio Encoding
MPEG1 Layer2, MPEG2 AAC, AC3
Audio Sample Rate
48 kHz
RF Output Power
+24 dBmv
RF Channels
57 to 1000 MHz
Channels 2 to 135
Audio Bit Rate
MPEG1 Layer 2: 128 Kb/s
MPEG2 AAC: VBR
AC3: 128 Kb/s
Display
Front-Channel LED
Modulator
RF Modulator
Standard: ISDB-T
MER: Typ. 35 dB
RF Range: 50-950 MHz, 1 kHz Step
RF Output Level: 100 dB (70 to 100 Adjustable)
Bandwidth: 6M
Constellation: QPSK, 16QAM, 64QAM
Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval: 1/4, 1/8, 1/16, 1/32
FFT: 2K, 8K
RF Modulator
Standard: DVB-T
Bandwidth: 6M, 7M, 8M
Constellation: QPSK, 16QAM, 64QAM
Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval: 1/4, 1/8, 1/16, 1/32
FFT: 2K, 8K
RF Modulator
Standard: DVB-C J.83A
Constellation: 64QAM, 128QAM, 256QAM
Symbol Rate: 5.000-9.000 Ms/s Adjustable
RF Modulator
Standard: DTMB
Bandwidth: 8M
Constellation: GB20600-2006
RF Modulator
Standard: ATSC
Bandwidth: 6M
Constellation: 8VSB
RF Modulator
Standard: QAM J.83B
Bandwidth: 6M
Constellation: 64QAM, 256QAM
General
Power
Input: 12 VDC
Power Supply: Barrel
Dimensions
4.1 x 2.5 x 0.9″ / 10.3 x 6.4 x 2.4 cm
Weight
10.6 oz / 300 g
Packaging Info
Package Weight
1.945 lb
Box Dimensions (LxWxH)
9.6 x 5.7 x 2.4″
