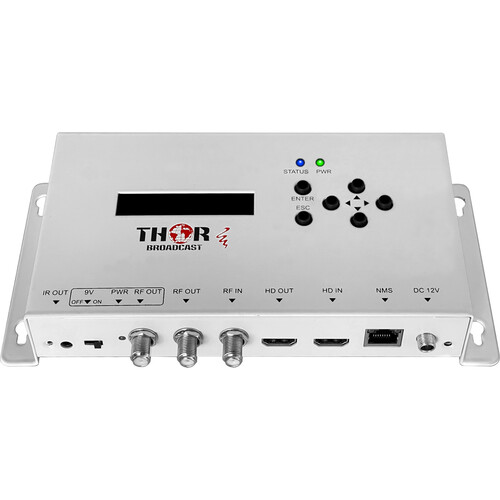

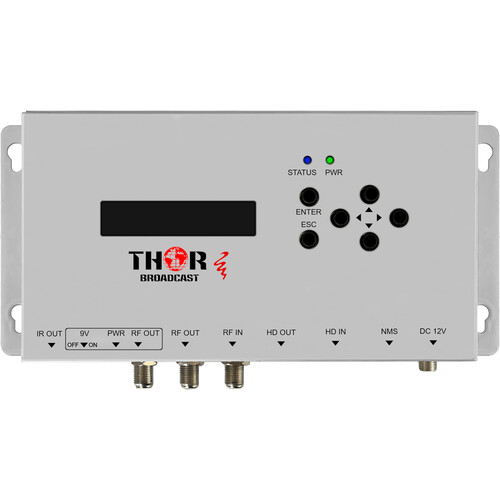

Thor Petit HDMI RF Modulator with Loop-Out and IR


Key Features
  • Compact HDCP-Compliant Modulator
  • HDMI Loop Out
  • LCD Display and Control Buttons
  • Output Resolutions up to 1080p30

AED2,399.00

TheĀ Petit HDMI RF Modulator with Loop-Out and IRĀ fromĀ ThorĀ is a compact, HDCP-compliant modulator with an HDMI input and an HDMI loop output that can send out video signal with resolutions up to 1080p30. An LCD display and control buttons make it possible to set desired settings and functions directly on the unit, or you can connect an Ethernet cable to the modulator’s NMS port and link that to a computer for control over a Web GUI.

The RF output allows you to connect as many televisions as necessary to your application when using the modulator with an existing coax network. An RF input enables the connection of an antenna and then adding any HDMI source into the ATSC channel lineup. The unit supports all major RF modulation standards.

Key Features
  • HDMI loop-out for convenient monitoring on a local TV
  • 10/100 Ethernet NMS port for control and setup
  • RF output to any CATV format as QAM, ATSC, DVB-T, or ISDB-T
  • RF output power is +100dBμV (30dB attenuation) for distributing HD video over the existing coax cable network
  • RF power can be controlled over the network via a proprietary NMS GUI
  • MPEG2 video encoding is supported
  • Supports AC3, MPEG-1, and AAC audio encoding
  • Supports any CATV RF agile channels from 50 to 950 MHz, channels 2 to 135
  • Supports output resolutions up to 1080p30

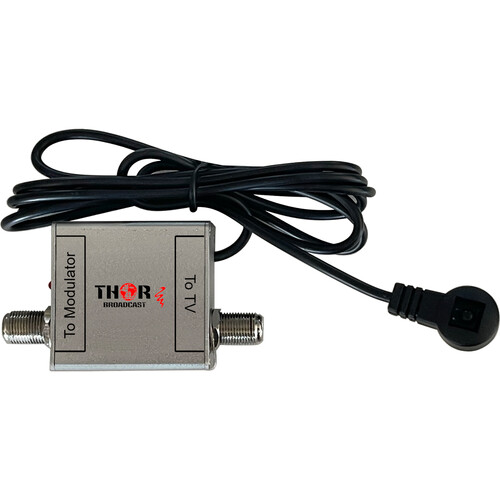

  • IR return with 9 VDC
SKU: H-HDMI-RF-PETIT-IR Category: Tag:
General
Video Encoding
MPEG-2
Resolution
Input:Ā 720p at 50/60 fps, 1080p at 50/60 fps, 1080i at 50/60 fps
Output:Ā up to 1080p30
Bitrate
5 to 25 Mb/s
Audio Encoding
MPEG-1 Layer2, AAC, AC3
Sample Rate
48 kHz
System Management
Control Buttons with LCD Display, Ethernet Web GUI
MER
35 dB9 (Typical)
RF Range
50 to 950 MHz, 1 kHz Step
RF Output Level
100dBμV (30 dB Attenuation)
Standard
ATSC
Constellation
8VSB
Standard
QAM J.83B, Annex A , DVB-T, ISDB-T
Constellation
64QAM, 128QAM, 256QAM
RF Output
2 x RF Outputs (9 VDC for IR Pass)
Display
Panel Type
LCD
Display Size
Not Specified by Manufacturer
Touchscreen
No

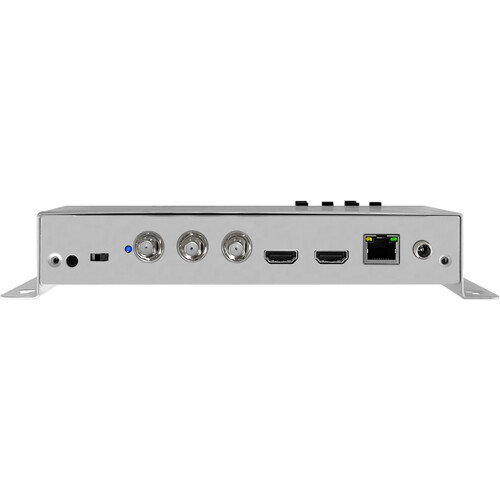

Inputs / Outputs
Video I/O
1x HDMI Input
1x HDMI Loop Output
1x Coaxial F-Type Input
2x Coaxial F-Type Output
Other I/O
1 x RJ45 NMS

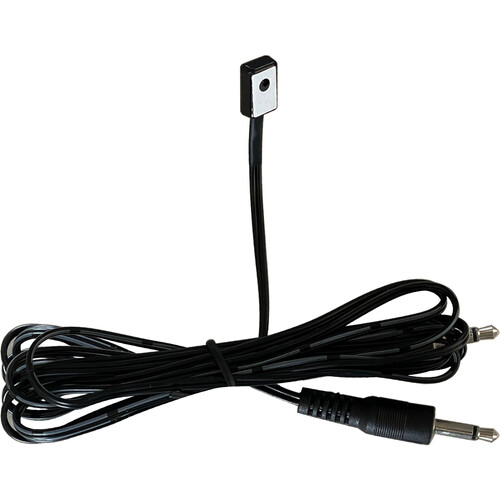

1 x 3.5 mm IR Output
Power
Power Source
AC Adapter with Power Brick (Included)
DC Input Power
12 VDC at 1 A
Physical
Dimensions
8.9 x 4.1 x 1.6″ / 225 x 105 x 41Ā mm
Weight
1.5Ā lb / 680Ā g
