Thor SPARTAN-1 Single-Channel CVBS/SDI/HDMI IPTV Video Streaming Encoder

Add to Wishlist
Key Features
  • H.264 Video and AC3/MPEG Audio Encoding
  • CVBS, SDI, and HDMI Inputs
  • Supports Input Resolutions up to 1080p60
  • LAN/WAN Direct Streaming
  • LCD and Front-Panel Control
  • USB Port for Media Playback

AED7,499.00

Add to Wishlist

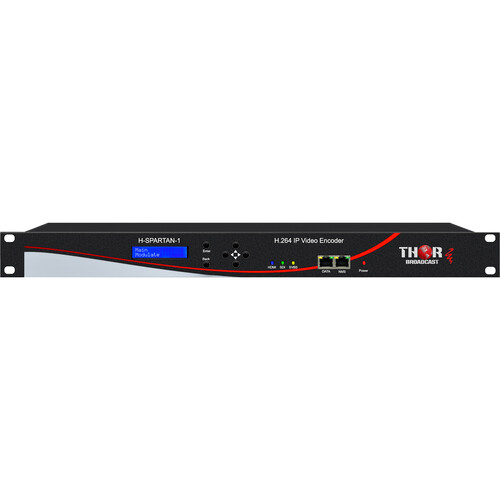

The SPARTAN-1 Single-Channel CVBS/SDI/HDMI IPTV Video Streaming Encoder from Thor is a 1 RU single-channel encoder unit that features CVBS, SDI, and HDMI inputs for video sources up to 1080p60 and two RJ45 LAN connections for sources up to 1080p30. Encode H.264 video and AC3/MPJEG audio using one device. Its single-channel configuration makes it suitable for use in UDP/RPT unicast or multicast over LAN or local streaming via WAN connection.

Directly stream to platforms like YouTube or Facebook with low latency and minimal bit rate. You can even play TS files via USB port on the front of the unit. Use the integrated LCD screen and front-panel controls for further monitoring and customization. One of the unit’s two RJ45 ports supports MNS (managed network services) control.

Features at a Glance
  • H.264 video encoding
  • MPEG, AC3, AAC audio encoding
  • UDP/RTP unicast/multicast
  • HLS, RTMP, HTTP
  • Supports RTMP with key
  • CBR/VBR control mode
  • Closed caption support
  • Internal power supply
  • NMS port for monitoring with own IP address
  • Data Ethernet port for streaming output
  • Video encoding for UDP/RTP up to 14 Mb/s
  • Video encoding for HLS/RTMP/HTTP up to 8 Mb/s
  • Control and status on LCD
SKU: H-SPARTAN-1 Category: Tag:
Key Specs
Video I/O
Input
1x HDMI
1x RCA
1x BNC
Broadcast System Compatibility
NTSC, PAL
IP Video
Encoding
H.264 1920 x 1080 at 50i, 50p, 60i, 60p
MPEG2 1280 x 720 at 50p, 60p
IP Audio
Encoding
AAC/AC3/MPEG Layer 2
Other I/O
Input/Output
2x RJ45 (10/100/1000 Ethernet)
1x USB-A
Reclocking
No
Standards
Broadcast System Compatibility
NTSC, PAL
IP Streaming
IP Video
Encoding
H.264 1920 x 1080 at 50i, 50p, 60i, 60p
MPEG2 1280 x 720 at 50p, 60p
IP Audio
Encoding
AAC/AC3/MPEG Layer 2
Transport Protocols
HLS, HTTP, RTMP, RTP, UDP
Hardware
Display
LCD
Power
Power I/O
1x IEC C13 Input
Power Consumption
Power Supply: 100 to 240 VAC
Environmental
Operating Temperature
41 to 104°F / 5 to 40°C
Operating Humidity
80%
General
Rack Form Factor
1 RU
Dimensions
19 x 5.3 x 1.7″ / 483 x 135 x 44.4 mm
Weight
2.2 lb / 1 kg
