Toa Electronics A-912MK2 120W 8-Channel Modular Mixer/Amplifier

Add to Wishlist
  • For Background Music, Paging, On-Hold
  • For Education, Transportation, Medical
  • 8 Slots for Line or Mic Input Modules
  • 4/8 Ohms & 25/70V Operation
  • Master and Individual Volume Controls
  • Bass and Treble Controls
  • Paging Priority Modes
  • Terminals for Remote Volume/Mute Control
  • Low-Cut Filter, Insert Jacks, Aux Output

4,299.00 د.إ

Add to Wishlist

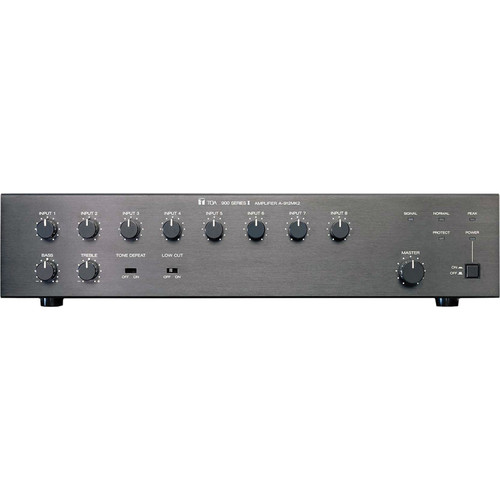

From the TOA 900 series of mixer/amplifiers, the A-912MK2 is a customizable unit ideal for background music, paging, on-hold messages, and other applications in hospitals, airports, schools, and other similar venues. The A-912MK2 is designed for high performance with a low self-noise, a wide frequency response, and excellent output regulation. This 120W unit features 8 input channels that accept any combination of TOA’s plug-in modules for ultimate customizability. The front panel features a master volume control and individual channel volume controls as well as bass and treble controls.

Input capacity may be increased by connecting another mixer or mixer/amplifier to the bridge in/out jack. The unit features transformer-isolated outputs, and a direct output mode if non-transformer operation is desired.

Modular Input Design

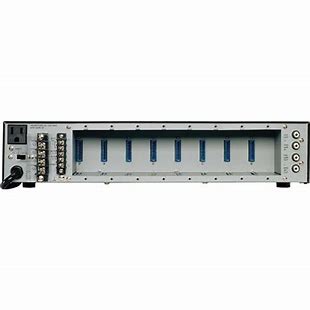

Eight expansion input slots house modules that provide line or microphone level connections.
25 and 70 Volt Operation
The mixer/amplifier is capable of 70V operation, suitable for long speaker runs throughout offices, airports, hospitals, restaurants, etc.
Paging Priority Modes
A Dual Mute Bus permits multiple levels of paging priority, using optional mute-type modules.
External Mute Terminals
Accommodate external mute switchers for remote mute operation.
Remote Master Volume Terminals
Enable remote master volume control.
Low-Cut Filter
A master low-cut filter switch eliminates low-frequency noise and rumble.
Auxiliary Output
The auxiliary output accommodates an external recording device, mixer, and more.
Insert Jacks
Insert jacks accommodate outboard signal processing.
Delayed Power Up
A power up delay feature protects the outputs and connected speakers from damage caused by surges during abrupt amplifier power up.
SKU: A-912MK2 UL Category: Tag:
Number of Channels
8
Amplifier Power Rating
120 W
Audio I/O
1x RCA Unbalanced Aux Output
Digital Audio I/O
No
Network I/O
No
USB I/O
No
Amplifier
Form Factor/Type
Tabletop (Rack-Mountable with Optional Hardware)
Number of Channels
8
Amplifier Power Rating
120 W
Performance
Protections
Overload, Power-On Delay, Short Circuit, Thermal
Frequency Response
20 Hz to 20 kHz
Input Sensitivity
Bridging:
100 mV
I/O Impedance
Bridging Input:
3.3 Kilohms
SNR
105 dB (Power Amp Only)
THD
0.02%
Signal Processing
EQ
2-Band
Filters
High-Pass
Connectivity
Audio I/O
1x RCA Unbalanced Aux Output
Digital Audio I/O
No
Network I/O
No
Other I/O
1x RCA Bridging In/Out
Speaker Outputs
1x Barrier Strip Balanced 8-Ohm/25 V/70 V
1x Barrier Strip Unbalanced 4-Ohm
Number of Module Slots
8
USB I/O
No
Media/Memory Card Slot
No
Power
AC Input Power
120 VAC, 50 / 60 Hz
Power Consumption
180 W
AC Outlet
120 VAC / 500 W Max Load / 4 A Max Draw (Unswitched)
Physical
Display & Indicators
1x LED (Signal)
1x LED (Status)
1x LED (Protect)
Operating Temperature
12 to 140°F / -11 to 60°C
Dimensions
16.5 x 3.9 x 14.1″ / 419.0 x 99.0 x 358.0 mm
Weight
25.1 lb / 11.4 kg
Packaging Info
Package Weight
34.6 lb
Box Dimensions (LxWxH)
20.5 x 18 x 8″
