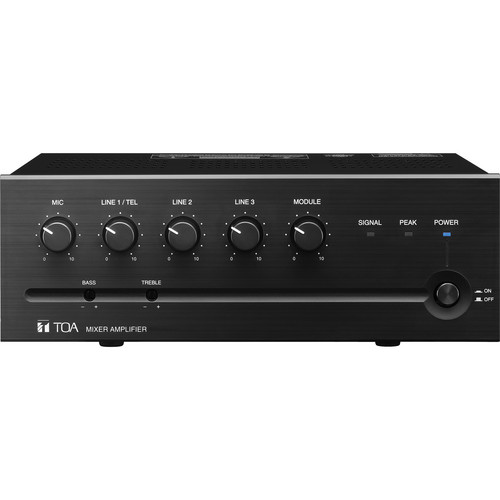

Toa Electronics BG-2035 CU Mixer Amplifier

Add to Wishlist
  • 35 Watts
  • Background Music Applications
  • 5-Input Channels
  • 2-Zone
  • Euroblock Connections

2,099.00 د.إ

Add to Wishlist

TheĀ Toa BG-2035 CU Mixer AmplifierĀ is designed to operate as the front end to any commercial audio system in background music (BGM), foreground music, paging applications and more. The BG-2035 CU features 5-channels and a power rating of 35 watts, with 2-zone operation allowing for separate programming in 2 discrete zones. The front panel features an intuitive set of controls with level dials for each channel. The rear is fitted with removable euroblock connectors and DIP switches for easy programming. The rugged chassis is easily rack mounted with the optional MB-1000 rack mount brackets.

Compact five channel Mixer-Amplifier for paging, background/foreground music distribution and music/messaging-on-hold.
All inputs/outputs with removable terminal blocks allow quick and easy installation.
Any of five inputs assignable to MOH/ZONE 2 output.
RCA pin jacks for LINES 2 & 3.
Phantom Power (+ 24V DC) incorporated for MIC input.
Module slot accepts optional 900 Series plug-in modules for custom system configurations.
Rear panel-mounted DIP switches allow easy configuring of settings.
Provides auto/manual mute function with adjustable muting sensitivity.
Incorporates Remote volume control connection.
2-channel broadcast capability together with zone 2 expansion capability in conjunction with BA-200 Series.
Tamper-proof, front-panel bass and treble controls are recessed to protect their settings.
Thermal protection circuitry prevents potential damage from excessive heat build-up.
AC Mains Circuit Breaker
Supplied accessory security knobs for volume controls prevent unauthorized volume setting changes.
Optional rack-mount kit.
UL/cUL Listed.
SKU: BG-2035 CU Category: Tag:
Number of Channels
5
Amplifier Power Rating
35 W
Load Impedance / Voltage
4 Ohms
25 V (18 Ohms Minimum)
70 V (140 Ohms Minimum)
Audio I/O
1x Block 3-Pin Balanced Mic Input
1x Block 3-Pin Balanced Line/Telephone Input
2x Block 2-Pin Unbalanced Line Input
2x Stereo RCA Unbalanced Line Input
Amplifier
Form Factor/Type
Tabletop
Number of Channels
5
Amplifier Power Rating
35 W
Load Impedance / Voltage
4 Ohms
25 V (18 Ohms Minimum)
70 V (140 Ohms Minimum)
Performance
Frequency Response
50 Hz to 20 kHz
I/O Impedance
Mic Input:
600 Ohms (Balanced)
Line/Telephone Input:
10 Kilohms (Balanced)
Line Input:
10 Kilohms (Unbalanced)
MOH Output:
600 Ohms (Balanced)
Line Output:
600 Ohms (Unbalanced)
SNR
Mic:
ā‰„ 60 dB (20 Hz to 20 kHz)
Line/Telephone Module:
ā‰„ 75 dB (20 Hz to 20 kHz)
THD
< 0.5% (1 kHz, at Rated Power)
Signal Processing
EQ
2-Band:
Bass:Ā Ā±10 dB at 100 Hz
Treble:Ā Ā±10 dB at 10 kHz
Ducking/Muting
Yes
Connectivity
Audio I/O
1x Block 3-Pin Balanced Mic Input
1x Block 3-Pin Balanced Line/Telephone Input
2x Block 2-Pin Unbalanced Line Input
2x Stereo RCA Unbalanced Line Input
Speaker Outputs
Block
Phantom Power
24 VDC, Selectable On/Off per Mic Input
Power
AC Input Power
120 VAC, 60 Hz
Power Consumption
94 W (Full Power)
50 W (cULus)
Physical
Operating Temperature
32 to 104Ā°F / 0 to 40Ā°C
Operating Humidity
35 to 80% ()
Dimensions
10.4 x 3.7 x 10.5″ / 264.0 x 94.3 x 267.3Ā mm
Weight
11.7Ā lb / 5.3Ā kg
Packaging Info
Package Weight
14.195 lb
Box Dimensions (LxWxH)
14.75 x 12.7 x 6.35″
