Toa Electronics IR-702T Infrared Wireless Tuner

Add to Wishlist
Key Features
  • For TOA IR Wireless System
  • 2-Channel Tuner
  • 2x BNC Inputs
  • Supports Up to 4 Receivers
  • 2 Level Controls

1,699.00 د.إ

Add to Wishlist

Toa Electronics IR-702T Overview

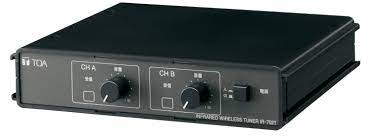

The TOA IR-702T Infrared Wireless Tuner is intended for use with the TOA Infrared (IR) Wireless Microphone System. The tuner features 2 BNC inputs for connecting 2 IR510R, 520R and 500R infrared receivers, and up to 4 receivers may be used with the YW-1022 distributor (all sold separately).

A pair of 1/4″ phone audio outputs on the rear panel may be set to send a stereo mixed or discrete signal to a PA system. Level dials and channel switches are featured on the front panel, and the IR-702T may be rack mounted using the optional MB-WT3 and MB-WT4 hardware brackets.

Comes with a built-in 2-channel fixed-frequency tuner
Enables installation of up to 4 infrared light receivers per unit
Equipped with signal reception light and knob for microphone volume control
Two line outputs, one with a MIX output switch allowing output of mixed voices from channels A and B
Rack-mountable with optional brackets (MB-WT3/MB-WT4)
SKU: IR-702T US Category:

Toa Electronics IR-702T Specs

Carrier Frequency Channel A: 3.100 MHz
Channel B: 3.350 MHz
Connector 75 ohm BNC Connector x2
Signal-to-Noise Ratio 61dB or more
Squelch 32.768kHz
Operating Temperature 14 to 122°F (-10 to +50°C)
Finish ABS Resin, Black
Power AC Mains 50/60Hz (AC Adapter Included)
Power Consumption 15W or Less
Dimensions 8.27 x 1.73 x 8.3″ (210 x 44 x 210.9mm)
Weight 1.39 lb (630 g)
Packaging Info
Package Weight 2.93 lb
Box Dimensions (LxWxH) 13.39 x 9.84 x 2.95″
