Toa Electronics LENUBIO AM-CF1W Integrated Audio Collaboration System (White)

Add to Wishlist
Key Features
  • For Huddle Rooms and Meeting Spaces
  • Internal 8-Element Microphone Array
  • Integrated 2-Way Stereo Speaker System
  • Auto Echo Cancellation & Noise Reduction
  • Built-In Bluetooth Interface
  • 3-Port USB Hub
  • Aux, Codec, and Control I/O
  • RJ45 Network Connection
  • Detailed Configuration via Web Browser

10,099.00 د.إ

Add to Wishlist

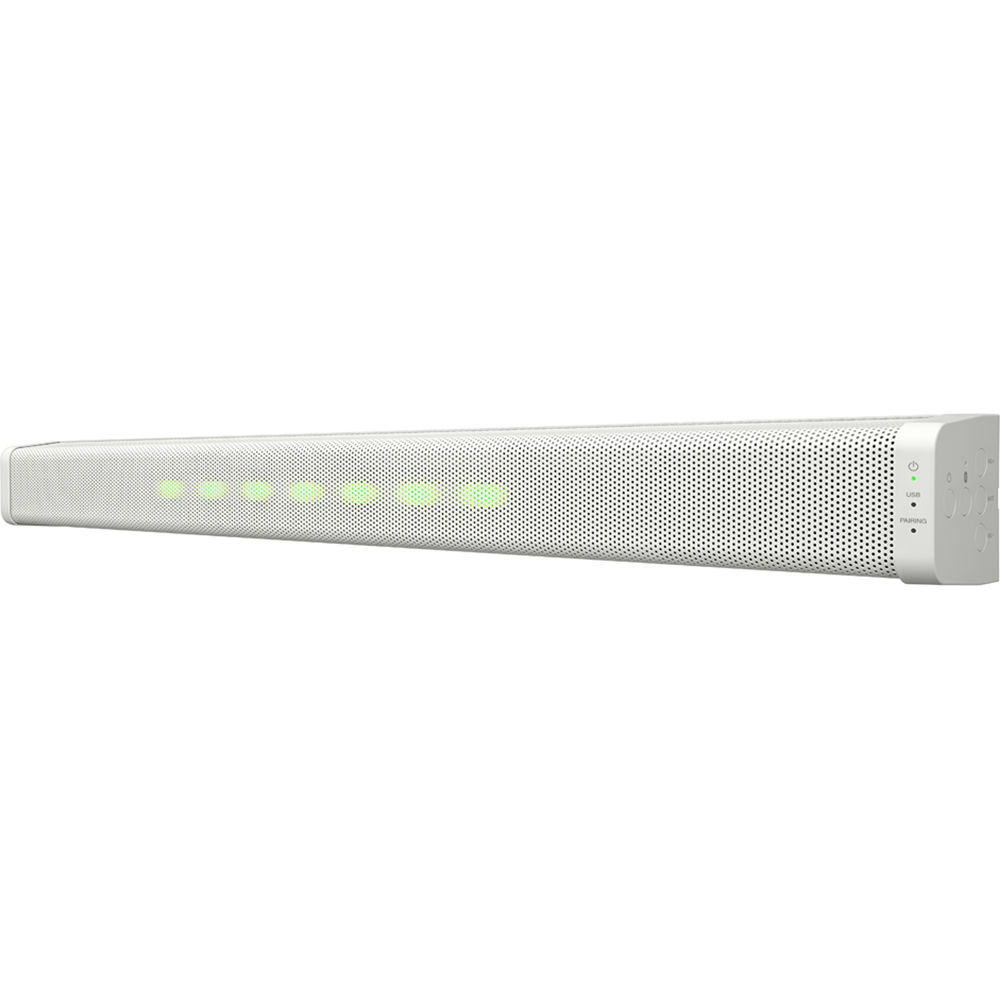

Toa Electronics AM-CF1W Overview

The whiteĀ Toa Electronics LENUBIO AM-CF1WĀ is an integrated audio collaboration system offering clear and natural conversation for a variety of huddle rooms and meeting spaces. Its 8-element microphone array tracks participants’ voices in real time for reliably intelligible speech while the integrated 2-way stereo speaker system ensures audibility for the listeners.

The internal DSP includes automatic echo cancellation and automatic noise reduction for optimal sound quality. Detailed settings and audio mixing can be adjusted via a convenient web browser interface. With interactive LED indicators, each person can easily verify the status of their signal.

From the built-in Bluetooth interface and 3-port USB hub to the auxiliary, codec, and control connections, the LENUBIO provides versatile I/O for effectively integrating an array of devices. The LENUBIO can be powered by a 12 VDC power adapter or a 52 VDC PoE extender (both available separately).
Designed for huddle rooms and meeting spaces up to 20 x 20′ with four to eight participants
Powerful soundbar with two active 2-way speakers
Built-in DSP improves sound quality with functions such as automatic echo cancellation and automatic noise reduction
Line array with eight microphone elements enable automatic sound tracking for enhanced intelligibility
Bluetooth interface allows attendees on the public phone line
Seven LEDs allow visual monitoring of presenter location, microphone gain level, and microphone mute status
The AM-CF1 has a dedicated web browser interface for detailed device settings such as voice tracking field and sensitivity adjustment, audio mixing or DSP settings to achieve the best performance in every project
Bluetooth interface for wireless connections
Auxiliary stereo audio I/O
Codec I/O and contact closure connections
Built-in USB Hub for webcam integration
RJ45 network connection
Supports third-party controls
Powered via 12 VDC power adapter or 52 VDC PoE extender (both available separately)
Wallmount installation gives more free desktop space
SKU: AM-CF1W E Category:

Toa Electronics AM-CF1WĀ Specs

System Requirements macOS 10.13
1366 x 768 Minimum Screen Resolution
Google Chrome 63.0.3239.132 or Safari 11.0.3 Web BrowserWindows 7 (32-Bit) or Windows 10 (64-Bit)
1366 x 768 Minimum Screen Resolution
Google Chrome 63.0.3239.132 or Safari 11.0.3 Web Browser
Inputs 2 x RCA Coaxial Aux Inputs (One Stereo Pair, Unbalanced)
1 x RCA Coaxial Codec Input (Unbalanced)
Outputs 1 x 6-Pin Euroblock (Balanced)
1 x RCA Coaxial Codec Output (Unbalanced)
USB Ports 2 x USB 3.0 Type-A (USB 3.2 Gen 1)
1 x USB 3.0 Micro-B (USB 3.2 Gen 1)
Network Interface 1 x RJ45 (10Base-T, 100Base-TX)
Bluetooth Input: 2 Channels
Output: 1 Channel
Control I/O 1 x 6-Pin Euroblock
Contact Ratings Control Input: ā‰¤2 mA Short-Circuit Current, ā‰¤12 VDC Open-Circuit Voltage
Control Output: 40 VDC Withstand Voltage, 2 to 300 mA Current
Microphone 8-Element Unidirectional Electret Condenser
Internal Speakers 2 x Woofers
1 x Tweeter
Frequency Response 20 Hz to 20 kHz (Aux In to Aux Out)
Impedance Codec Input: 10 kilohms
Aux Input: 10 kilohms
Codec Output: 600 ohms
Aux Output: 600 ohms
Input Level Codec Input: -10 dB
Aux Input: -10 dB
Output Level Codec Output: -10 dB
Aux Output: +4 dB
Controls Power, Bluetooth Pairing, Mute, and Volume Up/Down
Indicators Power, USB Connection, Bluetooth, and Multifunction
Operating Temperature 32 to 104Ā°F / 0 to 40Ā°C
Operating Humidity ā‰¤90% Relative Humidity (No Condensation)
Construction Material Body: Surface-Treated Aluminum Plate
Punched Net: Surface-Treated Steel Plate
Side Cover: ABS Resin
Power Requirements AC Adapter (12 VDC, 5 A, Positive Center Pin) or TRENDnet TPE-117GI PoE Extender (52 VDC)
Current Consumption <3.5 A
Dimensions 31.5 x 3.3 x 3.4″ / 79.9 x 8.3 x 8.6 cm
Weight 10.1 lb / 4.6 kg
Packaging Info
Package Weight 14.045 lb
Box Dimensions (LxWxH) 34.3 x 8.9 x 7.1″
