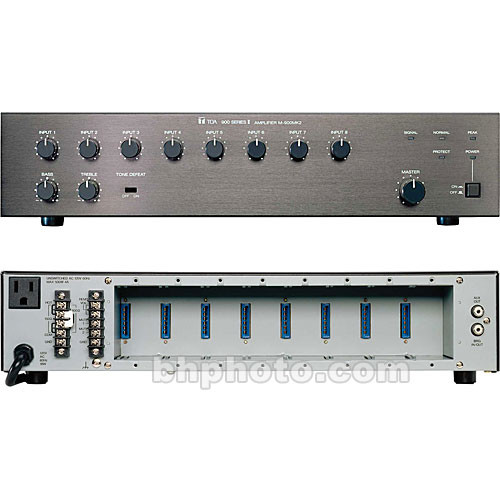

Toa Electronics M-900MK2 – 8-Channel Modular Mixer/Preamplifier

Add to Wishlist

د.إ2,599.00

Add to Wishlist

The M-900MK2 from TOA Electronics is an eight-channel modular mixer/preamplifier that delivers professional-quality audio with a wide frequency response, low noise, and low distortion for accurate reproduction. The eight module slots accept any combination of TOA plug-in modules for the ultimate in customizability, giving you the input and output options you need. The balanced, transformer-isolated terminal block output connector has a selectable impedance for a wider variety of output options.

An aux output is provided for connection to an external mixer or recording device, and a bridging in/out jack is available for input expansion or output to a recording device. A dual mute bus allows multiple levels of paging priority when used with muting modules. The master volume of the M-900MK2 can be controlled via the front panel, or remotely with an external potentiometer. Each of the inputs has an individual volume control.

2U rack space unit
Eight module slots for customizability
Terrific audio with a wide frequency response and low noise and distortion
Dual mute bus for multiple levels of paging priority
Individual channel and master volume controls
Master volume can be controlled via an external potentiometer
Balanced, transformer-isolated screw terminal output with switchable impedance
Auxiliary output for connecting additional mixer or recording device
Bridge in/out jack for system expansion
Bass and treble controls
Status LEDs for power, peak, protect, normal, and signal
Protection circuitry for overheat and overload
SKU: M-900MK2 UL Category: Tag:
Output Power
+4 dBm, +20 dBm (Max)
Power Bandwidth
30Hz – 20kHz, +20 dBm 0.5% THD
250Hz – 20kHz, +18 dBm 0.5% THD
Frequency Response
20Hz – 20kHz
Total Harmonic Distortion (THD)
0.01%
Inputs
8 x Module Slots, Each Accepts Any Input Module
1 x Bridging In/Out RCA Jack
Input Sensitivity
Module Slots: 100mV
Bridging In/Out: 100mV
Input Impedance
Module Slots: 10 k ohms
Bridging In/Out: 3.3 k ohms
Outputs
Main: Balanced Terminal Block, 150/600 ohms
Aux: Unbalanced RCA Jack, 10 k ohms
Output Regulation
Less than 1.5dB
Dynamic Range
90dB @ Min. Volume
77dB @ Max. Volume
Tone Control
+/-10dB Bass and Treble
Indicators
LEDs for Power, Peak, Protect, Signal, and Normal
Protection
Self-Protection with Internal AC Fuses
Power Consumption
18W
Temperature Range
12 to 140°F (-10 to +60°C)
Dimensions
16.5 x 3.9 x 12.1″ (420 x 99 x 308mm)
Weight
11.7 lbs (5.3 kg)
Packaging Info
Package Weight
18.35 lb
Box Dimensions (LxWxH)
22.8 x 17.4 x 6.7″
