04 3550600 052 7036860

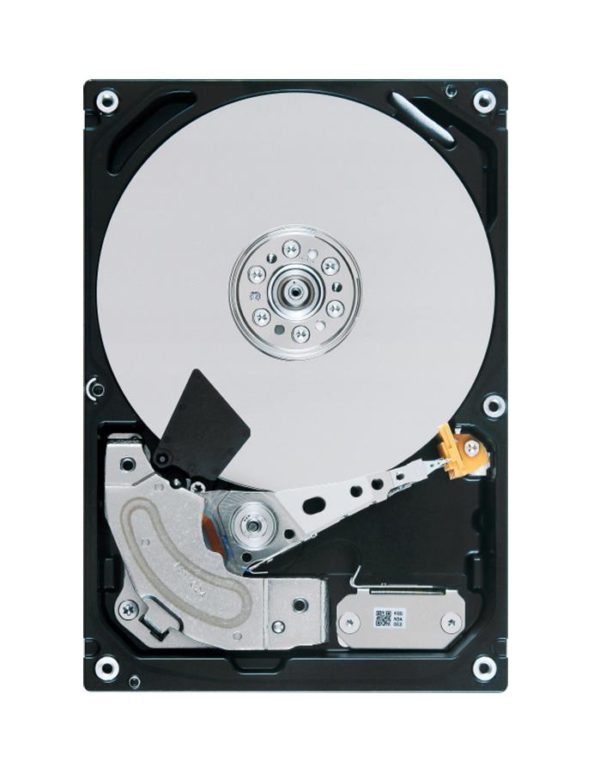

Toshiba MG04ACA100N 1TB SATA Hard Drive

Add to Wishlist

699.00 د.إ

Add to Wishlist

Toshiba MG04ACA Series MG04ACA100N 1TB 3.5-Inch LFF 6Gbps 7.2K RPM Enterprise SATA Hard Drive – Brand New

Toshiba MG04ACA Series MG04ACA100N 1TB / 1000GB 3.5″ LFF / Large Form Factor 6.0 Gb/s 7200 RPM Enterprise SATA / Serial ATA HDD / Hard Drive – Brand New

Enterprise Capacity HDD MG04AxxN Series
The Enterprise Capacity HDD 512 native, 7,200 rpm SATA models (MG04ACA-N) come in a robust design providing 1, 2 and 4TB in a 3.5-inch form factor. Features of MG04ACA-N series include a SATA 6Gbit/s interface, and industry-standard 512 native format sector technology for environments and applications that require 512 native. Model options supporting Sanitize Instant Erase (SIE) are also available. This feature randomizes data instantly in case of unintended disclosure in the event that drives are re-purposed or moved outside of data center environments.

Key Features

  • Large-Capacity (4 / 2 / 1 TB models) in an industry standard 3.5-inch Form-Factor
  • 7,200 rpm Performance
  • SATA 6Gbit/s Interface
  • Designed for 24 Ɨ 7 workloads of up to 550 total TB Transferred per Year
  • 512 Native Sector Technology
  • Rotational Vibration Technology
  • Sanitize Instant Erase (SIE) Option Available

Applications

  • Engineered for Mid-line / Nearline Business Critical Workloads
  • Tier 2 Business-Critical Servers and Storage Systems
  • Servers Supporting Workloads that Benefit from High Capacity per Spindle
  • Capacity-Optimized Data Center Storage Systems
  • Applications and hypervisors that require legacy 512 Native Sector Technology
SKU: MG04ACA100N Category: Tags: ,
Weight 0.720 kg
Enterprise SATA HDD
Model Number MG04ACA100N
Basic Specifications
Interface SATA
Interface Speed 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Formatted Capacity 1TB / 1000GB
Logical Data Block Length (HOST) 512
Logical Data Block Length (DISK) 512
Environmental Compliance RoHS Compatible
Performances
Buffer Size 128 MiB
Rotation Speed 7,200 rpm
Average Latency Time 4.17 ms
Data Transfer Speed (Sustained) 195 MiB/s
Reliability
Unrecoverable Error Rate 10 per 10e16 bits read
MTTF 1,400,000 hors
24 x 7 Operation Yes
Workloads 550 TB/y
Power Requirements
Supply Voltage 5 V Ā±5 % , 12 V Ā±5 %
Power Consumption (Read / Write) 11.3 W
Power Consumption (Idle-B) 6.0 W Typ
Dimensions
Height 26.1 mm Max
Width 101.6 mm Ā± 0.25 mm
Lenth 147 mm Max
Weight 720 g Max
Environmental Requirements
Temperature (Operating) 5 to 55 Ā°C
Temperature (Non-operating) -40 to 70Ā°C
Humidity (Operating) 5 to 90 % R.H.
Humidity (Non-operating) 5 to 95 % R.H.
Altitude (Operating) -305 to +3,048 m
Altitude (Non-operating) -305 to +12,192 m
Vibration (Operating)
  • 7.35 m/s2 { 0.75 G } ( 5 to 300 Hz )
  • 2.45 m/s2 { 0.25 G } ( 300 to 500 Hz )
Vibration (Non-operating) 49 m/s2 { 5.0 G } ( 5 to 500 Hz )
Shock (Operating) 686 m/s2 { 70 G } ( 2 ms duration )
Shock (Non-operating) 2,940 m/s2 { 300 G } ( 2 ms duration )
