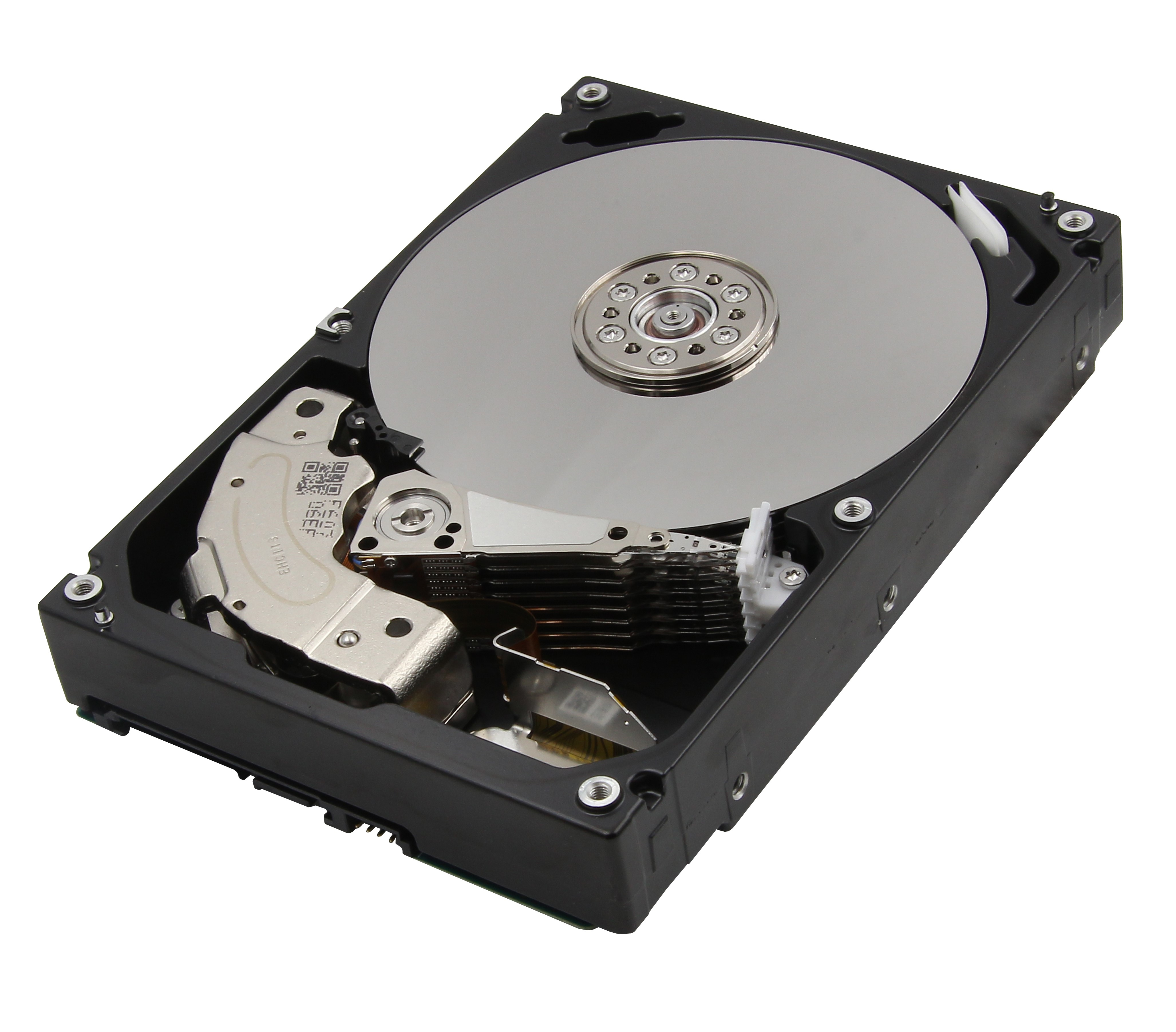

Toshiba MG06SCA Series MG06SCA10TE 10TB SAS Hard Drive

Add to Wishlist

AED1,399.00

Add to Wishlist

Toshiba MG06SCA10TE 10TB 3.5-Inch LFF 12Gbps 7.2K RPM 512e MG06SCA Series Enterprise SAS Hard Drive – Brand New

Toshiba MG06SCA10TE 10TB / 10000GB 3.5″ LFF / Large Form Factor 12.0 Gb/s 7200 RPM 512e / 512 Emulation MG06SCA Series Enterprise SAS / Serial Attached SCSI HDD / Hard Drive – Brand New

MG06SCA Series
The MG06SCA Enterprise Capacity HDD models provide capacities up to 10 TB and 7,200 rpm performance, in a robust design engineered for nearline business-critical workloads.

The MG06SCA series utilizes industry-standard 3.5-inch 26.1 mm height form factor and Advanced Format sector technologies for optimum capacity and data reliability. Toshiba Persistent Write Cache technology helps enhance performance while also maintaining data integrity in the event of a sudden loss of power.

Equipped with 12 Gbit/s SAS interface, the Enterprise Capacity MG06SCA models help save rack space and reduce the footprint and operational burden of business critical servers and storage systems.

512e or 4Kn Advanced Format sector technology models are available. 4Kn models (MG06SCAxxxA) offer optimum performance and compatibility with 4K-capable applications and operating environments. 512e models (MG06SCAxxxE) are broadly supported today and also help provide support for legacy applications and operating environments that require 512 B sector lengths.

Key Features

  • Industry Standard 3.5-inch 26.1 mm Height Form Factor
  • Large Capacity (10 / 8 / 6 TB Models)
  • 7,200 rpm Performance
  • Dual-Port 12 Gbit/s SAS Interface
  • MTTF 2.5M hours
  • 550 total TB Transferred per Year Workload Rating
  • 512e or 4Kn Advanced Format Sector Technology
  • Toshiba Persistent Write Cache Technology to help Maintain Data Integrity during Power-Loss Events
  • Sanitize Instant Erase (SIE) option model available

Applications

  • Engineered for Mid-line / Nearline Business Critical Workloads
  • Tier 2 Business-Critical Servers and Storage Systems
  • Servers Supporting Application Workloads that Benefit from High Capacity per Spindle
  • Capacity-Optimized Data Center Storage Systems
  • Object and File Storage Solutions
SKU: MG06SCA10TE Category: Tags: , ,
Weight 0.770 kg
Toshiba MG06SCA
Enterprise Capacity HDD
512 Emulation (512e) Model# MG06SCA10TE
SPECIFICATIONS
Sector Size 512E
Form Factor 3.5-Inch
Interface SAS 12.0 Gbit/s
Formatted Capacity 10TB / 10,000GB
Performance Interface Speed

  • 12.0 Gbit/s
  • 6.0 Gbit/s
  • 3.0Gbit/s
  • 1.5 Gbit/s

Rotation Speed

  • 7,200 RPM

Buffer Size

  • 256 MiB

Maximum Data Transfer Speed (Sustained)

  • 237 MiB/s
Logical Data Block Lenth MG06SCAxxxA

  • 4,096 B / 4160 B / 4224 B

MG06SCAxxxE

  • Host: 512 B, Disk: 4,096B
  • Host: 520 B, Disk: 4160 B
  • Host: 528 B, Disk: 4224 B
Supply Voltage Allowable Voltage

  • 12 V ± 10% / 5 V + 10% / -7%
  • 5 V +10/-7%
Power Consumption Random Read / Write 4KB Q1

  • 10.78 W Typ

Active Idle (Idle-A)

  • 7.49 W Typ
Acoustics (Sound Power) Idle

  • 34 dB Typ
Environmental Limits
Ambient Temperature Operating

  • 5° C to 55° C

Non-Operating

  • -40° C to 70° C
Relative Humidity Operating

  • 5 % to 90 % R.H. (No condensation)

Non-Operating

  • 5 % to 95 % R.H. (No condensation)
Altitude Operating

  • -305 m ti 3,048 m

Non-Operating

  • -305 m ti 12,192 m
Shock Operating

  • 686 m/s2 { 70 G } ( 2 ms duration )

Non-Operating

  • 2,450 m/s2 { 250 G } ( 2 ms duration )
Vibration Operating

  • 7.35 m/s2 { 0.75 G } ( 5 to 300 Hz )
  • 2.45 m/s2 { 0.25 G } ( 300 to 500 Hz )

Non-Operating

  • 29.4 m/s { 3.0 G } ( 5- 500Hz )
Reliability
MTTF 2,500,000 hours
Non-recoverable Error Rate 10 error per 1016 bits read
Load / Unload 600,000 times
Availability 24 hours/day, 7 days/week
Rated Annual Workload (Total TB Transferred per Year, R/W) 550 TB per Year
Mechanical Specifications
Width 101.85 mm Max
Height 26.1 mm Max
Length 147.0 mm Max
Weight 770 g Max
