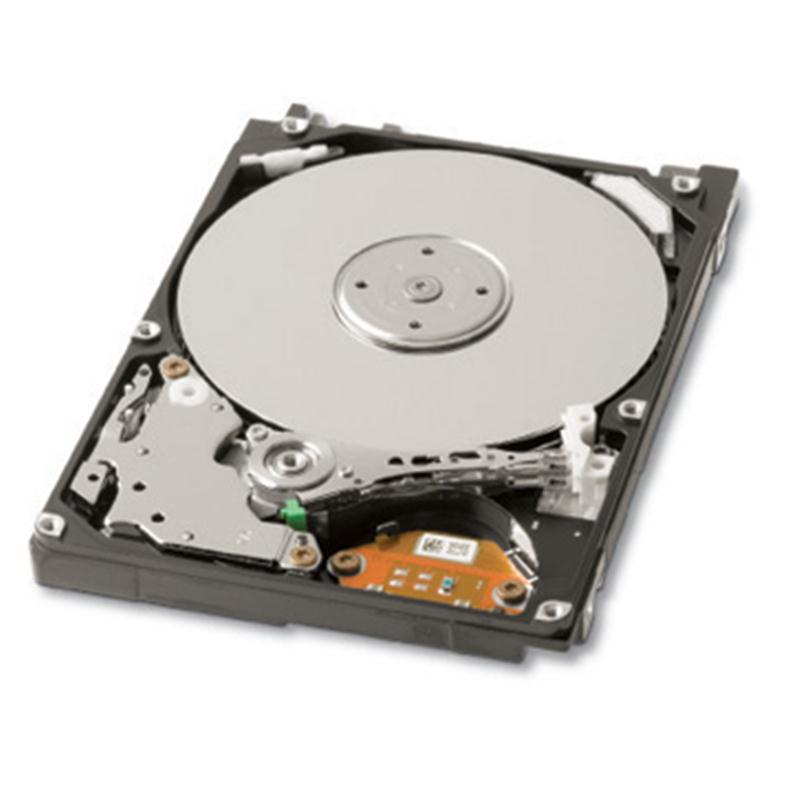

Toshiba MK1661GSYB 160GB 2.5in 3Gbps 7.2K RPM SATA HDD – Brand New
Toshiba MK1661GSYB 160GB 2.5″ 3.0 Gbps 7200 RPM Serial ATA Hard Disk Drive – Brand New
Leveraging Toshibaās extensive experience in the enterprise market, the MKxx61GSYB Series 7,200 RPM hard disk drive is a high-durability model targeted at demanding 24×7 applications such as network routers, network switches, blade servers, and point-of-sale terminals. With up to 500GB of storage capacity, the MKxx61GSYB offers the reliability and performance in a 2.5-inch small form factor design required for such applications.
Demonstrating Toshibaās ability to supply optimized designs for specific application requirements, the MKxx61GSYB Serial ATA drive offers greater power efficiency over 3.5-inch drives and extremely quiet acoustics. Continuing Toshibaās tradition of innovation, the drive is halogen-free and delivers lowered heat generation and power consumption during operation.
| Weight | 0.115 kg |
|---|
| SPECIFICATIONS | ||
|---|---|---|
| Model Number | MK1661GSYB | |
| Drive Capacity | 160GB | |
| Drive Interface | Serial ATA 3.0 Gb/sec, Revision 2.6 (ATA-8) |
|
| Number of Platters (disks) | 1 | |
| Number of Data Heads | 2 | |
| RoHS Compliant | Yes | |
| Transfer Rate to Host | 3 Gb/sec | |
| PERFORMANCE | ||
| Track-to-track Seek | 1 ms | |
| Average Seek Time | 10.5 ms | |
| Rotational Speed | 7,200 RPM | |
| Average Latency | 4.17 ms | |
| Buffer Size | 16MB | |
| POWER REQUIREMENTS | ||
| Voltage | 5V(+/-5%) | |
| Spin up (start) Power | 5.5 watts | |
| Seek Power | 2.3 watts | |
| Read/Write Power | 2.1 watts | |
| Low Power Idle | 0.8 watts | |
| Standby Power | 0.16 watts | |
| Sleep Power | 0.13 watts | |
| PHYSICAL SIZE | ||
| Dimensions (W) x (D) x (H) | 69.85 mm (2.75″) x 100 mm (3.94″) x 9.5 mm (0.37″) | |
| Weight | 115 g (0.2535 lb) | |
| ENVIRONMENTAL | ||
| Temp – Operating | 5Ā° to 55Ā°C (41Ā° to 131Ā°F) | |
| Temp – Non-Operating | -40Ā° to 65Ā°C (-40Ā° to 149Ā°F) | |
| Vibration – Operating | 9.8 m/s (1.0G) 5 to 500 Hz | |
| Vibration – Non-Operating | 49 m/s (5.0G) 15 to 500 Hz | |
| Shock – Operating | 3,185 m/s (325G) 2 ms | |
| Shock – Non-Operating | 8,820 m/s (900G) 1 ms | |
| ACOUSTICS | ||
| Acoustics (Idle) | 23 dB | |
| Acoustics (Seek) | 23 dB | |
