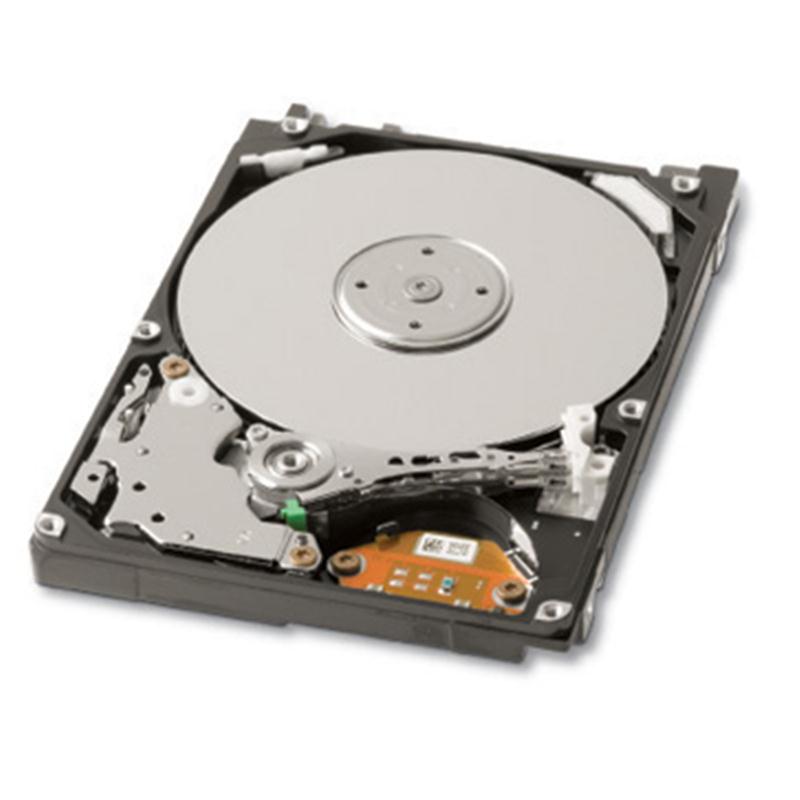

Toshiba MQ01ABD032 320GB SATA Hard Drive


399.00 د.إ

Toshiba MQ01ABD032 / HDKEB04 320GB 2.5in 3Gbps 5.4K RPM AF512e SATA HDD – Brand New

Toshiba MQ01ABD032 2.5″ 3.0 Gb/s 5400 RPM Advanced Format 512 Emulation Serial Attached Technology Attachment Hard Disk Drive – Brand New

2.5-Inch SATA Hard Disk Drives

Capacity and power efficiency for data-intensive and energy-sensitive applications

Toshiba MQ01ABD series offers capacity up to 1TB using 500GB per platter technology. At 744.1Gb/in, the MQ01ABD hard disk drives deliver state-of-the-art storage solution with higher performance than engineered for superior energy efficiency and offers improved acoustic performance at a maximum of 19dB in idle mode and 24dB during seek operation. This combination of areal density, power efficiency and acoustic performance enables PC an d consumer electronics makers to build differentiated systems based on capacity, performance, heat dissipation, and power utilization.

The MQ01ABD drive series continues Toshiba Corporation’s global commitment to design, develop, manufacture, and distribute Environmentally Conscious Products (ECPs) with minimal environmental impact. As part of this voluntary initiative, Toshiba has reduced or eliminated additional hazardous substances in the MQ01ABD drives.

The MQ01ABD series is ideal for notebooks and desktop PCs, mobile workstations, gaming consoles, DVR set-top boxes, external storage solutions and other applications requiring high-capacity, durability and cost –effective storage.

  • Up to 1,000GB of Storage Capacity
  • 5,400 RPM Rotational Speed
  • Advanced Format 542e
  • Eco-Conscious Design
  • MTTF of 600,000 Hours

Alt Model Number: HDKEB04

SKU: MQ01ABD032 Category: Tags: ,
Weight 0.125 kg
2.5-Inch SATA Hard DisK Drives
Model/Part No. MQ01ABD032
Alt Model No. HDKEB04
Series Overview
Drive Capacity 320GB
Drive Interface Serial ATA, Revision 2.6 / ATA-8
Number of Platter (disks) 1
Nuber of Data Heads 2
Sector Size (bytes) AF 512e
Transfer Rate Host 3 Gb/sec
RoHS Compliant Yes
Performance
Areal Density (max) 744.1 Gb/in
Track-to-track Seek 2 ms
Average Seek Time 12 ms
Rotational Speed 5,400 RPM
Average Latency 5.55 ms
Buffer Size 8 MB
Power Requirements
Voltage 5V(+/-5%)
Spin up (start) Power 4.5 watts
Seek Power 1.85 watts
Read/Write Power 1.5 watts
Low Power Idle 0.55 watts
Standby Power 0.18 watts
Sleep Power 0.15 watts
Physical Size
Weight 125gm
Form Factor 2.5″ 15mm
Dimensions (W x D x H) 69.85mm (2.75″) x 100.0mm (3.94″) x 9.5mm (0.37″)
Weight 102g (3.60 oz)
Environmental
Temp – Operating 5° to 55°C (41° – 131°F)
Temp – Non-Operating -40° to 60°C (-40° – -140°F)
Vibration – Operating 9.8 m/s (1.0G) 5 to 500 Hz
Vibration – Non-Operating 49 m/s (5.0G) 15 to 500 Hz
Shock – Operating 3,920 m/s (400G) 2ms
Shock – Non-Operating 8,820 m/s (900G) 1ms Hz
Acoustics
Acoustics (idle) 17dB
Acoustics (seek) 23dB
