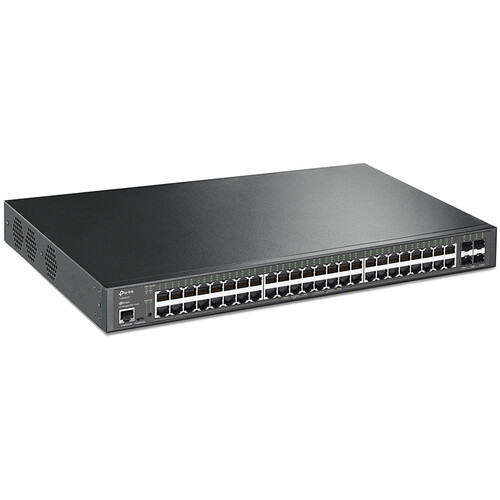

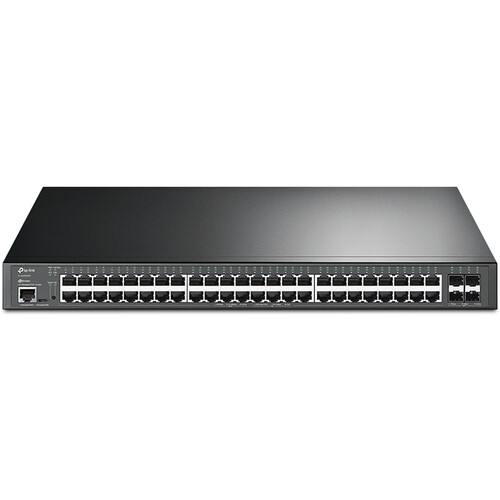

TP-Link JetStream TL-SG3452XP 48-Port PoE+ Compliant Gigabit Managed Network Switch with 10G SFP+

Add to Wishlist
Key Features
  • 48 x Gigabit Ethernet PoE+ Ports
  • 4 x 10G SFP+ Ports
  • 176 Gb/s Switching Capacity
  • 130.9 Mpps Forwarding Rate
  • 500W Budget
  • Desk & Rack-Mountable Design
  • 3 x Cooling Fans
  • Centralized Management
  • Abundant L2+ & L3 Features
  • Comprehensive Security Features

AED4,299.00

Add to Wishlist

Expand your office or business network capacity to handle a multitude of high-bandwidth applications and powered devices with the JetStream TL-SG3452XP 48-Port PoE+ Compliant Gigabit Managed Network Switch from TP-Link. This managed rack-mountable switch features 48 Gigabit speed Ethernet ports, each of which supports up to 30W of power with PoE+ compatible devices such as security cameras, access points, and VoIP phones. The 500W power budget provides you with room to plan your network topography. There are also four 10 Gigabit SFP+ ports for high-speed fiber uplinks. With a 176 Gb/s switching capacity and 130.9 Mpps forwarding rate, this switch provides reliable data transfers.

The broad range of L2+ and L3 features allows you to configure and manage your network to best suit your business’s needs. A host of security features includes an Access Control List (ACL), Storm Control, and DHCP Snooping to help defend your network against threats. Use the Omada Software Defined Networking platform to manage your connected network devices remotely with the Omada app.

Centralized Management
The Omada Software Defined Networking (SDN) platform integrates access points, switches, gateways, and other network devices to provide high efficiency, security, and reliability. Configure, manage, and monitor your network using a single interface, from almost anywhere in the world, through the cloud portal interface and Omada smartphone and tablet app.
L2+ and L3 Support
Extensive L2+ and L3 features help to build a highly scalable and robust network for businesses, campuses, and ISPs.
Note:

ISP L3 features can only be configured in standalone mode.
Security Features
Protect your network from attacks and intrusions with IP-MAC-Port-VID Binding, Access Control List, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, VLAN ID, and more.
Enterprise Level Features
The complete lineup of L2+ features includes 802.1Q VLAN, Port Mirroring, Link Aggregation Control Protocol, and 802.3x Flow Control.
Optimized Video & Voice Traffic
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more to help ensure smooth broadcasts and clear calls, even when bandwidth is limited.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are included with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
Note:

ISP features can only be configured in standalone mode.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover help to ensure that your network is ready for the Next Generation Network (NGN) without having to upgrade your hardware.
Quiet Cooling
Three fans help to maintain optimal performance while minimizing noise.
SKU: SG3452XP Category: Tag:
Key Specs
Inputs/Outputs
48x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
4x SFP+ 10 GbE WAN
1x RJ45 LAN
1x Micro-USB
Stackable
No
Switching Bandwidth
176 Gb/s
PoE Power Budget
500 W
Stackable
No
Protocols
Layer Services Supported
Layer 2, Layer 3
Supported Protocols
DHCP Server
IGMP Snooping
IPv4
IPv6
Link Aggregation
Port Mirroring
Queuing
Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support
9000 Bytes
MAC Address Table Size
16K
Security
Security Features
DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Storm Control
Performance
Forwarding Rate
130.9 Mpps
Switching Bandwidth
176 Gb/s
Priority Queues
8
Packet Buffer
12 Mb
Electrical
PoE per Port
30 W
PoE Power Budget
500 W
Power Draw
635.7 W (Max)
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Supply Type
Internal
General
Certifications
FCC, CE, RoHS
Operating Conditions
32 to 77°F / 0 to 45°C at 10 to 90% Humidity
Storage Conditions
-40 to 158°F / -40 to 70°C at 5 to 90% Humidity
Cooling System
Fan
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
17.3 x 13 x 1.7″ / 440 x 330 x 44 mm
Packaging Info
Package Weight
14.36 lb
Box Dimensions (LxWxH)
21.2 x 17.9 x 3.9″
