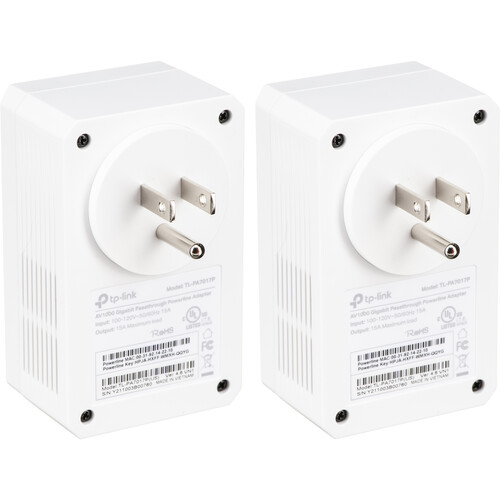

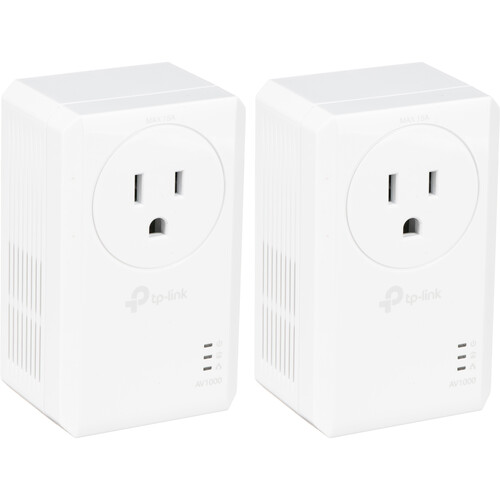

TP-Link TL-PA7017P AV1000 Gigabit Passthrough Powerline Starter Kit (US)

Add to Wishlist

Key Features
2 x AV1000 Powerline Modules
1 x Gigabit Ethernet Port (Each)
3-Pin US Plug with Passthrough
HomePlug AV2 Compliant
Up to 984.3′ Range
IEEE 1901, 802.3/3u/3ab Standards
128-bit AES Encryption
Dedicated Pairing Button
Power Saving Mode
Works with Windows, Mac, and Linux

Add to Wishlist

Quickly expand your wired Gigabit network to reach across your home with the TL-PA7017P AV1000 Gigabit Powerline Starter Kit from TP-Link. This kit includes two HomePlug AV2-compliant modules that plug into 3-prong U.S. wall outlets to reliably transfer data up to 984.3′ using your home’s electrical wiring. Setup is easy.

TP-Link TL-PA7017 Overview

Quickly expand your wired Gigabit network to reach across your home with the TL-PA7017P AV1000 Gigabit Powerline Starter Kit from TP-Link. This kit includes two HomePlug AV2-compliant modules that plug into 3-prong U.S. wall outlets to reliably transfer data up to 984.3′ using your home’s electrical wiring. Setup is easy. Simply connect one module to your router and the other to a remote device through using their respective Gigabit Ethernet ports, then press the pairing buttons to link them. Each module has an outlet passthrough that allows you to plug in one powered device, such as a lamp, television, or video game console. Your data connection is secured with 128-bit AES encryption. The TL-PA7017P AV1000 Powerline Starter Kit supports the IEEE 1901, 802.3/3u/3ab standards and is designed to work with Windows, Mac, and Linux computers.

Power Saving Mode
The TL-PA7017P AV1000 powerline modules are designed to automatically switch from their regular “working” mode to “Power Saving” mode when they’re not in use, which can reduce energy consumption by up to 85%.
SKU: TL-PA7017P KIT Category: Tag:

TP-Link TL-PA7017 Specs

Maximum Data Rate
1 Gb/s
Number of Ethernet Ports
1
Ethernet Standards
IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet Speed
10/100/1000 Mb/s
Powerline Technology
HomePlug AV, HomePlug AV2
Maximum Networking Distance
984.3′ / 300 m
Plug Type
US (3-Pin)
AC Pass-Through
Yes
Encryption
128-Bit AES
AC Input Power
220 VAC, 50 Hz
Active Power Consumption
2.3 W
Power-Saving Mode
Yes
Standby Power Consumption
0.5 W
OS Compatibility
Linux
Windows
macOS
*As of May, 2021: Check with manufacturer for the most up-to-date compatibility
Operating Humidity
10 to 90%
Storage Temperature
-40 to 158°F / -40 to 70°C
Storage Humidity
5 to 90%
Dimensions (W x H x D)
2.3 x 3.7 x 1.7″ / 58 x 95 x 42 mm
Packaging Info
Package Weight
1.155 lb
Box Dimensions (LxWxH)
7.6 x 5.4 x 4″
