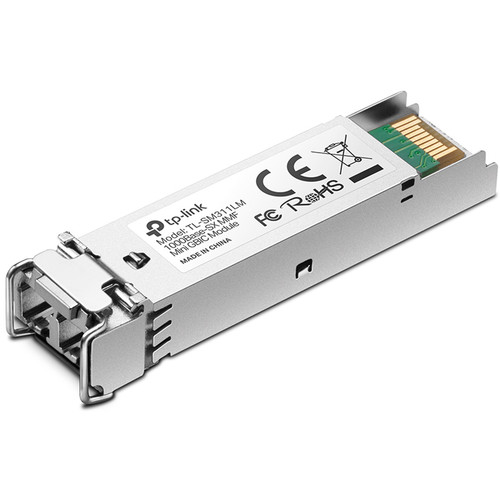

TP-Link TL-SM311LM Mini-GBIC Multi-Mode Module


Key Features
  • 1 x LC/UPC-Type Mini-GBIC Port
  • Up to 1.25 Gb/s Throughput
  • 802.3z Fiber Channel
  • Supports Multi-Mode Fiber Connection
  • Up to 1804.46′ Cable Distance
  • 850nm Wave Length

AED99.00

Connect theĀ TP-Link TL-SM311LM Mini-GBIC Multi-Mode ModuleĀ to a compatible switch to extend data transfer distances. This module is compatible with all SFP ports and works with a multi-mode fiber connection using the IEEE 802.3z protocol to transfer data at up to 1.25 Gb/s.

TP-Link TL-SM311LMĀ Overview

Connect theĀ TP-Link TL-SM311LM Mini-GBIC Multi-Mode ModuleĀ to a compatible switch to extend data transfer distances. This module is compatible with all SFP ports and works with a multi-mode fiber connection using the IEEE 802.3z protocol to transfer data at up to 1.25 Gb/s. Featuring a 850nm wave length, the TL-SM311LM has a transmission range of up to 1804.46′ using 50/125 µm multi-mode fiber cables and a 902.23′ range over 62.5/125µm multi-mode cables.

TP-Link TL-SM311LMĀ Specs

Form Factor
SFP
Ethernet Standards
IEEE 802.3z
Ports
1 xĀ Duplex LC/PC
Wavelength
850 nm
Protocol
CSMA/CD
Maximum Networking Distance
1804.5′ / 550Ā m
Maximum Data Rate
1.25 Gb/s
Mode
Multi-Mode
DC Input Power
3.3 VDC
Operating Temperature
32 to 158°F / 0 to 70°C
Operating Humidity
10 to 90%
Storage Temperature
-40 to 176°F / -40 to 80°C
Packaging Info
Package Weight
0.25 lb
Box Dimensions (LxWxH)
8.1 x 6 x 1.5″
