TP-Link TL-SX3016F JetStream 16-Port SFP+ 10GE Managed Switch

Add to Wishlist
Key Features
  • 16 x 10G SFP+ Ports
  • 320 Gb/s Switching Capacity
  • 238.08 Mpps Forwarding Rate
  • Rackmount Design
  • Centralized Network Management
  • Extensive Layer 2 & Layer 3 Features
  • Dual Redundant Power Supplies
  • Works with Omada App

AED2,599.00

Add to Wishlist

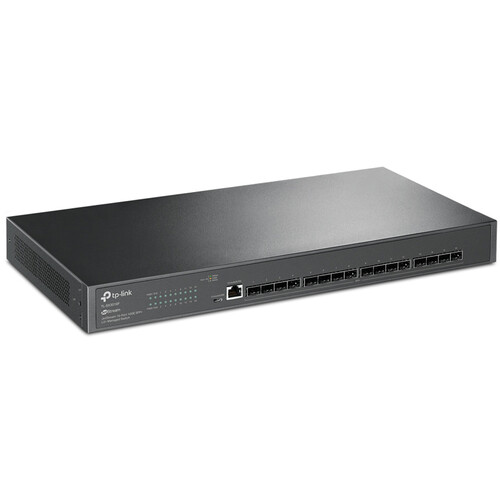

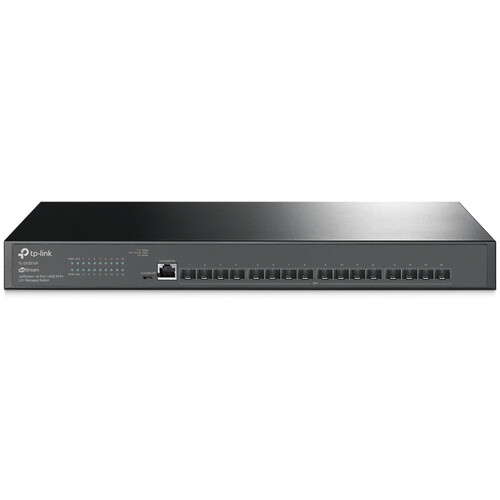

TP-Link TL-SX3016F Overview

Whether you have a small office or large business, you can quickly expand your network capacity to handle a multitude of high-bandwidth applications with the TL-SX3016F JetStream 16-Port SFP+ 10GE Managed Switch from TP-Link. This managed switch features sixteen 10G SFP+ ports, supporting a 320 Gb/s switching capacity and 238.08 Mpps forwarding rate to deliver exceptionally fast and reliable data transfers over fiber connections to compatible devices such as network storage and servers. Robust Layer 2 and 3 features include link aggregation for up to eight groups containing eight ports in addition to IGMP snooping, port mirroring, and static routing. Your data is protected by a host of security features, including an Access Control List (ACL) and VLAN support. Use the Omada Software Defined Networking platform to manage your connected network devices remotely with the Omada app.

Centralized Management
The Omada Software Defined Networking (SDN) platform integrates access points, switches, gateways, and other network devices to provide high efficiency, security, and reliability.
Omada App
Configure, manage, and monitor your network devices from almost anywhere in the world using your smartphone or tablet.
Access Control List
Allow or deny connected devices access to data with user-defined network rules.
Optimized Traffic
Configure the switch to prioritize voice and video traffic to help ensure clear calls and smooth media streaming.
VLAN Support
Group devices using VLAN to help improve network security and reduce data congestion.
Security Features
Protect your network from attacks and intrusions with IP-MAC-Port Binding, Access Control List, DoS Defend, Storm control, DHCP Snooping, 802.1x, Radius Authentication, and more.
ISP Features
Internet Service Providers benefit from features such as sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM, and Device Link Detection Protocol (DLDP) to quickly troubleshoot Ethernet links across the network.
IPv6 Support
Built-in IPv6 functionality such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, means that you won’t need to upgrade your hardware when you’re ready to set up a next generation network.

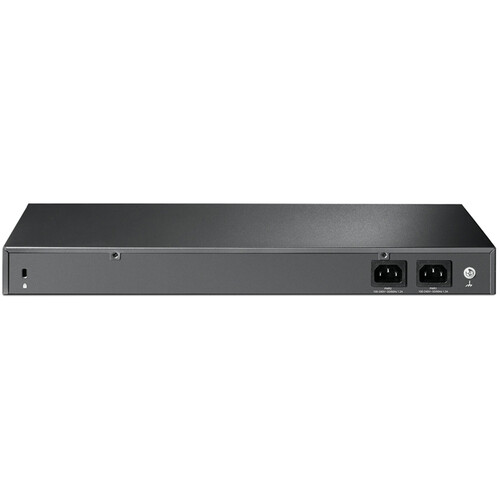

Dual Redundant Power Supplies
Two power supplies backing each other up help to provide high reliability.
SKU: TL-SX3016F Category: Tag:
Key Specs
Inputs/Outputs
16x SFP+ 10 GbE
1x RJ45 LAN
1x Micro-USB
Stackable
No
Switching Bandwidth
320 Gb/s (Non-Blocking)
Stackable
No
Protocols
Layer Services Supported
Layer 2, Layer 3
Supported Protocols
IGMP Snooping
IPv4
IPv6
Link Aggregation
Port Mirroring
Queuing
Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support
9000 Bytes
MAC Address Table Size
32K
Security
Security Features
DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Storm Control
Performance
Forwarding Rate
238.08 Mpps
Switching Bandwidth
320 Gb/s (Non-Blocking)
Priority Queues
8
Electrical
Power Draw
32.74 W
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Supply Type
Internal
Environmental
Operating Temperature
32 to 77°F / 0 to 45°C
Operating Humidity
10 to 90%
Storage Temperature
-40 to 158°F / -40 to 70°C
Storage Humidity
5 to 90%
General
Certifications
No
Cooling System
Fan
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
17.3 x 8.7 x 1.7″ / 440 x 220 x 44 mm
Packaging Info
Package Weight
8.575 lb
Box Dimensions (LxWxH)
21.2 x 13.2 x 4″
