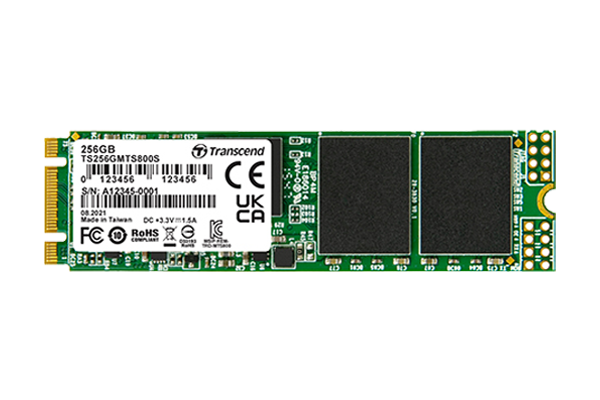

Transcend MTS800 TS256GMTS800 256GB M.2 2280 SATA Solid State Drive

Add to Wishlist

Capacity: 256GB

Speed: Solid State Memory

Interface Types: SATA M.2 NGFF

Form Factor: M.2 x 80mm

Sector Size: 512 / 512e

Electrical Interface: SATA 600 – 6.0Gbps

SSD Type: MLC

AED699.00

Add to Wishlist

Transcend MTS800 TS256GMTS800 256GB M.2 2280 6Gbps MLC SATA Solid State Drive – Brand New

Transcend MTS800 TS256GMTS800 256GB M.2 2280 6.0 Gb/s MLC / Multi-Level Cell SATA / Serial ATA SSD / Solid State Drive – Brand New

SATA III 6Gb/s MTS800 M.2 SSD
Transcend’s MTS800 with SATA III 6Gb/s interface and ultra compact dimensions makes it best suited to address the high-performance needs and strict size limitations of small form factor devices. This means it is perfect for use in today’s modern ultrabooks, thin and light notebooks, and tablets. Built with the latest SATA III 6Gb/s specifications, and with a powerful controller and exceptional transfer speeds, the M.2 SSD easily handles everyday computing tasks as well as demanding multimedia applications.

Features

  • Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
  • Supports DevSleep mode, which allows devices to completely shut down the SATA interface and conserve battery life unlike existing partial/slumber states
  • DDR3 DRAM cache
  • Supports S.M.A.R.T., TRIM and NCQ command
  • RoHS compliant
  • MLC NAND Flash
  • Compliant with TCG Opal specifications (optional)



Compatibility:

This drive is compatible with any server that accepts M.2 x 80mm SATA drives

Category:
MTS800 M.2 SSD
PART NUMBER TS256GMTS800
APPEARANCE
Dimensions (Max.) 80.0 mm x 22.0 mm x 3.58 mm (3.15″ x 0.87″ x 0.14″)
Weight (Max.) 9 g (0.32 oz)
Form Factor M.2
M.2 Type 2280-D2-B-M
INTERFACE
Bus Interface SATA III 6Gb/s
STORAGE
Flash Type MLC NAND flash
Capacity 16 GB/32 GB/64 GB/128 GB/256 GB/512 GB/1 TB
OPERATING ENVIRONMENT
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage 3.3V±5%
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 0% ~ 95%
Shock 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 3 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)
Vibration (Non-operating) 5 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)
POWER
Power Consumption (Operation) 3.67 watt(s)
Power Consumption (Sleep) 0.55 watt(s)
PERFORMANCE
Read Speed (Max.) 560 MB/s
Write Speed (Max.) 460 MB/s
MTBF 1,500,000 hour(s)
WARRANTY
Warranty Three-year Limited Warranty
Warranty Policy
  • Please click here for more information about the Transcend Warranty Policy.
  • Warranty does not apply when SSD Scope’s wear-out indicator displays 0% within the warranty coverage.
  • Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
  • SSD Scope Pro software is required by request. Please contact us for more information.
