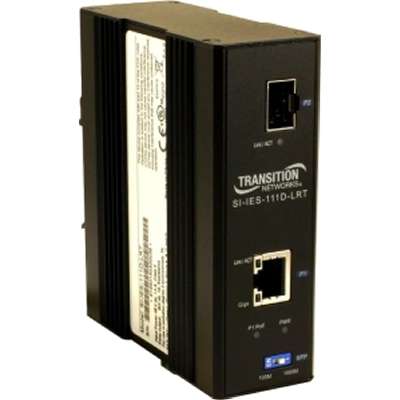

Transition Networks Hard Ethernet PoE+ Injector 1GB Cop 1GB Fiber
- IEEE 802.3at PoE+ to supply 30 Watts on 10/100/1000Base-T port
- Supports IEEE 802.3af
- Supports dual speed for SFP slot
- Non-blocking architecture
- Compact size
- IP31 housing protection
- Link Pass Through
- Extended operating temperature (-40°C to 75°C)
- DIN Rail mount / optional wall mount brackets included
- Full/half-duplex flow control
- Auto-MDI/MDIX
- Auto-Negotiation
- Store-and-forward transmission
- 10K byte jumbo frames
AED2,499.00
SI-IES-111D-LRT has one SFP slot and one RJ45 port. The RJ45 port supports 802.3at (PoE+), and can provide 30W for high powered application. The SFP slot provides more flexibility when planning and implementing the network. The slot can accept either a 100m or 1000m SFP module. This makes it possible to easily change the transmission mode and distance of the connection by using a different module. The SFP module is hot-swappable, and there is a dip switch to adjust the LFP function.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | Hard Ethernet PoE+ Injector 1GB Cop 1GB Fiber |
| Product Model | SI-IES-111D-LRT |
| Product Type | PoE Injector |
| Interfaces/Ports | |
| Input Ports | 1 x 100/1000Base-X SFP Ethernet 1 x Ethernet |
| Output Ports | 1 x 10/100/1000Base-T 1 x 10/100/1000Base-T PoE+ RJ-45 Ethernet (30 Watts) |
| Power Description | |
| Input Voltage | 57 V DC 48 V DC |
| Maximum Output Power | 30 W |
| Physical Characteristics | |
| Form Factor | External |
| Mount Type | DIN Rail / Wall Mountable |
| Height | 4.3″ |
| Width | 1.4″ |
| Depth | 3.7″ |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
