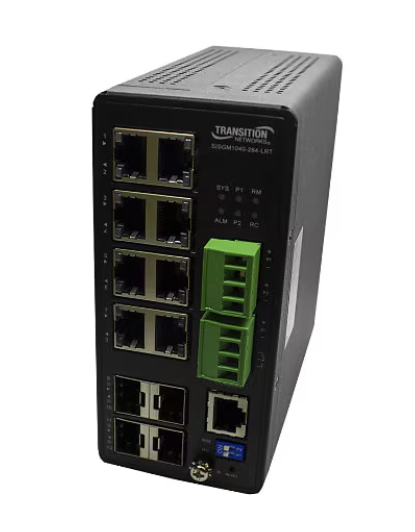

Transition Networks Hardened SISGM1040-284-LRT – switch – 12 ports – managed


Quick tech specs

  • 284-LRT
  • managed
  • DIN rail mountable, wall-mountable
  • Switch
  • 4 x 10/100/1000 + 4 x Gigabit SFP
  • DC power

4,999.00 د.إ

Know your gear

The SISGM1040-284-LRT is a managed switch suitable for connecting devices in hardened environments. The switch has 24Gbps switching capacity. The switch also includes the embedded Device Management System (DMS) software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost, less downtime and easier management of the entire network.
SKU: SISGM1040-284-LRT Category: Tag:
Category Details
Overview
Brand Transition Networks
Product Line Transition Networks Hardened
Model SISGM1040-284-LRT
Manufacturer Transition Networks
Network & Communication
Compliant Standards IEEE 1588v2, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8031, ITU-T G.8032, ITU-T Y.1731
Features DMS, DHCP relay, DHCP server, DHCP snooping, Firmware upgradable, IGMP snooping, IP source guard, IPv4 support, IPv6 support, LACP support, LLDP support, MRP, MLD snooping, MVR, MSTP support, Port mirroring, QoS, RRPP support, RSTP support, STP support, Static routing, Store and forward, Syslog support, VLAN support
Form Factor (Hubs & Switches) DIN rail mountable, Wall-mountable
MAC Address Table Size 8K entries
Manageable Yes
Ports 12
Product Type Switch
Remote Management CLI, HTTP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x console RJ-45 management, 4 x 1000Base-X SFP, 8 x 1000Base-T RJ-45
Port Quantity 4
Port Type 10/100/1000
Ports Type (2nd) Gigabit SFP
Power
Redundant Power Supply Yes
Technical Information
Max Operating Temperature 167 degrees Fahrenheit
Min Operating Temperature -40 degrees Fahrenheit
Product Information
Authentication Method RADIUS, TACACS+
Packaged Quantity 1
Performance Backplane switching capacity: 24 Gbps
Ports (2nd) Quantity 4
Dimensions & Weight
Height 5.1 inch
Weight 2.2 lbs
Width 2.4 inch
Depth 5.3 inch
Physical Characteristics
Color Category Black
Certifications & Listings FCC Class A certified, IEC 61850-3, IEC 62439-2, IEEE 1613, IP30, NEMA TS-2, UL
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
