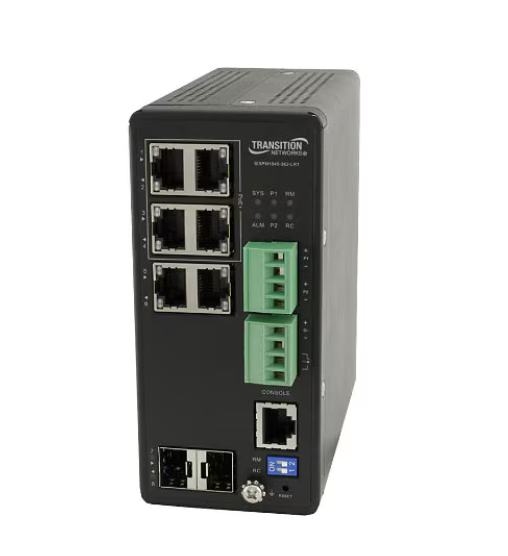

Transition Networks Hardened SISPM1040-362-LRT – switch – 8 ports – managed

Add to Wishlist

Quick tech specs

  • 362-LRT
  • managed
  • DIN rail mountable, wall-mountable
  • DC power
  • Switch
  • 6 x 10/100/1000 (4 PoE+) + 2 x Gigabit SFP
  • PoE+ (120 W)

5,299.00 د.إ

Add to Wishlist

Know your gear

The SISPM1040-362-LRT is a full managed PoE+ switch suitable for connecting and powering devices in hardened environments.
SKU: SISPM1040-362-LRT Category: Tag:
Category Details
Overview
Brand Transition Networks
Product Line Transition Networks Hardened
Model SISPM1040-362-LRT
Manufacturer Transition Networks
Network & Communication
Compliant Standards IEEE 1588v2, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8031, ITU-T G.8032, ITU-T Y.1731
Features Auto Power Reset, Device Management System, DHCP client/server, Dynamic VLAN (GVRP), Ethernet Protection Switched Ring, Ethernet Ring Protection Switching, Find my Switch, Flow mirroring, IP source guard, IPv4/IPv6 support, LLDP support, MAC based VLAN, Port mirroring, Private VLAN Edge, Quality of Service (QoS), Rate limit, Reset button, PoE scheduling, SNMP trap, Syslog support, Temperature sensor, VLAN management, Voice VLAN
Form Factor DIN rail mountable, Wall-mountable
Jumbo Frame Support 9.6KB
MAC Address Table Size 8K entries
Manageable Yes
PoE Budget 120 watt
Ports 8
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, SNMP 1, SNMP 2c, SNMP 3, Telnet
Status Indicators Alarm, Coupling, Port status, Power, Ring master, System
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x 10/100/1000 Base-T RJ-45, 1 x console RJ-45 management, 2 x SFP, 4 x 10/100/1000 Base-T RJ-45 PoE+
Port Quantity 6
Port Type 10/100/1000 (4 PoE+)
Ports Type (2nd) Gigabit SFP
Technical Information
Max Operating Temperature 167 degrees Fahrenheit
Max Storage Temperature 185 degrees Fahrenheit
Min Operating Temperature -40 degrees Fahrenheit
Min Storage Temperature -40 degrees Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Product Information
Authentication Method RADIUS, Secure Shell (SSH), SSH v2, TACACS+
Capacity ACL entries: 256, Port queues: 8, VLAN groups: 4000
Packaged Quantity 1
Performance Switching capacity: 16 Gbps
Ports (2nd) Quantity 2
Dimensions & Weight
Height 5.1 inch
Weight 31.74 ounce
Width 2.4 inch
Depth 5.3 inch
Physical Characteristics
Color Category Black
Certifications & Listings EN 50121-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, FCC Part 15, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IEC 60950-1, IEC 61850-3, IEEE 1613, IP30, NEMA TS-2, UL Class I Division 2
ENERGY STAR Certified No
