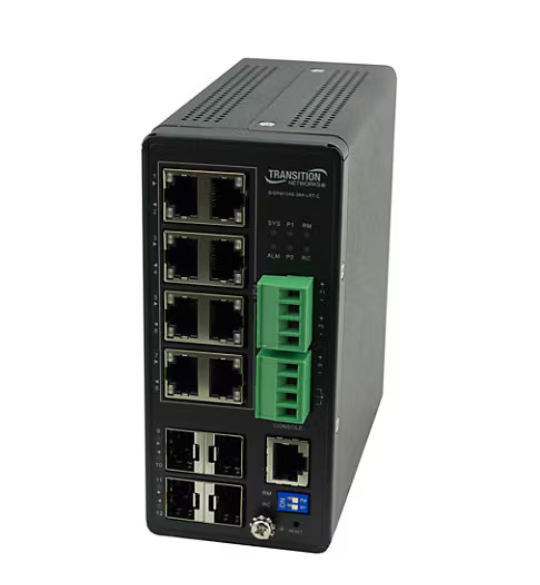

Transition Networks Hardened SISPM1040-384-LRT-C – switch – 8 ports – managed
Quick tech specs
- Backplane: 24Gbps
- Power Input: 48-57V DC
AED7,399.00
Know your gear
The SISPM1040-384-LRT-C is a full managed PoE+ switch suitable for connecting and powering devices in hardened environments. The switch can supply up to 30 Watts per port on all eight ports simultaneously. The switch also includes the embedded Device Mana
| Category | Details |
|---|
| Overview |
| Brand | Transition Networks |
| Product Line | Transition Networks Hardened |
| Model | SISPM1040-384-LRT-C |
| Manufacturer | Transition Networks |
| Network & Communication |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8031, ITU-T G.8032, ITU-T Y.1731 |
| Features | ACL support, Auto Power Reset (APR), Device Management System (DMS), DHCP client/relay/server, DiffServ, Dynamic VLAN Support (GVRP), Ethernet Ring Protection Switching (ERPS), IP source guard, IPv4/IPv6 support, LLDP support, VLAN management, Voice VLAN, Weighted Round Robin (WRR), and more |
| Form Factor | Wall-mountable |
| Jumbo Frame Support | 9.6KB |
| MAC Address Table Size | 8K entries |
| Manageable | Yes |
| PoE Budget | 240 watt |
| Ports | 8 |
| Power Over Ethernet (PoE) | PoE+ |
| Product Type | Switch |
| Remote Management | CLI, DHCP, HTTPS, ICMP, RADIUS, SNMP 1/2c/3, SSH, TACACS+, Telnet |
| Routing Protocol | Static IP routing |
| Status Indicators | Alarm, Coupling, Port status, Power 1/2, Ring master, System |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x serial (console) RJ-45, 4 x 1000Base-X SFP, 8 x 1000Base-T RJ-45 PoE+ (30 W) |
| Port Quantity | 8 |
| Port Type | 10/100/1000 (PoE+) |
| Ports Type (2nd) | 1000Base-X |
| Technical Information |
| Max Operating Temperature | 167°F |
| Max Storage Temperature | 185°F |
| Min Operating Temperature | -40°F |
| Min Storage Temperature | -40°F |
| Operating Humidity | 5 – 95% (non-condensing) |
| Product Information |
| Authentication Method | RADIUS, SSH, SSH2, TACACS+ |
| Capacity | ACL entries: 256, QoS hardware queues: 8, Virtual interfaces (VLANs): 4000 |
| Packaged Quantity | 1 |
| Performance | Switching bandwidth: 24 Gbps |
| Ports (2nd) Quantity | 4 |
| Dimensions & Weight |
| Height | 5.1 inch |
| Weight | 2.2 lbs |
| Width | 2.4 inch |
| Depth | 5.3 inch |
| Physical Characteristics |
| Color Category | Black |
| Certifications & Listings | DNV, EN 50121-4, EN 50155, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, FCC Part 15, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IEC 60950-1, IEC 61850-3, IEEE 1588v2, UL Class 1 Division 2 |
