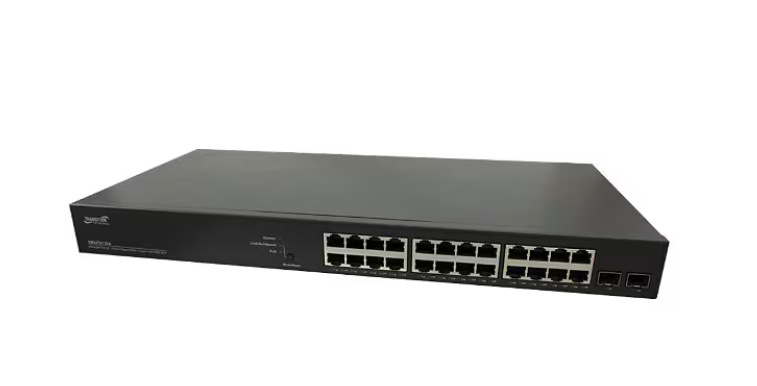

Transition Networks SM24TAT2SA – switch – 24 ports – managed


Quick tech specs

  • Switch
  • 24 x 10/100/1000 (PoE+) + 2 x 100/1000 SFP
  • PoE+ (370 W)
  • managed
  • desktop

4,299.00 د.إ

Know your gear

This switch is a next generation smart managed switch with 52Gbps switching capacity. It provides 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability and additional 100/1000 dual speed SFP slots. The embedded Device Management System (DMS) provides the benefits of ease of use in the IP surveillance, wireless Access Point and other applications. The DMS capability built into the switches is the from Transition Networks and provides time-saving features enabling security integrators or network administrators to establish and document a baseline deployment, automatically discover and remotely configure attached IP-powered devices.
SKU: SM24TAT2SA-NA Category: Tag:
Overview
Brand Transition Networks
Product Line Transition Networks
Model SM24TAT2SA
Manufacturer Transition Networks
Network & Communication
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 6KV Surge protection, Access Control List (ACL) support, Auto Power Reset (APR), DHCP relay, DHCP server, DHCP snooping, Firmware upgradable, IGMP snooping, IP source guard, IPv4 support, IPv6 support, LLDP support, MLD snooping, Port Security, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Store and forward, Syslog support, Weighted Round Robin (WRR) queuing
Form Factor Desktop
Jumbo Frame Support 9KB
MAC Address Table Size 8K entries
Manageable Yes
PoE Budget 370 watt
Ports 24
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, HTTP, SNMP 1, SNMP 2c, SNMP 3, Telnet
Routing Protocol IGMP, IGMPv2, IGMPv3
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 2 x 1000Base-X SFP, 24 x 1000Base-T RJ-45 PoE+ – 15.4 W
Port Quantity 24
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 100/1000 SFP
Power
Frequency 50/60 hertz
Technical Information
Max Operating Temperature 122 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 10 – 90% (non-condensing)
Product Information
Authentication Method RADIUS, TACACS+
Capacity QoS hardware queues: 8, Virtual interfaces (VLANs): up to 4000
Country North America
Packaged Quantity 1
Performance Backplane switching capacity: 52 Gbps
Ports (2nd) Quantity 2
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Weight 6.61 lbs
Width 17.4 inch
Depth 8.3 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards FCC Class A certified, IEC 60950
ENERGY STAR Certified No
