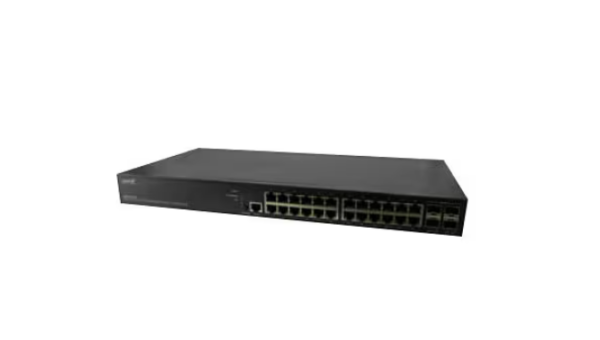

Transition Networks SM24TAT4XB – switch – 24 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Switch
  • managed
  • rack-mountable
  • L3
  • 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
  • PoE+ (370 W)

7,399.00 د.إ

Add to Wishlist

Know your gear

This switch is a high performance managed PoE+ switch with (48) 10/100/1000 copper ports and (4) dual speed 1G/10G SFP+ slots.
SKU: SM24TAT4XB-NA Category: Tag:
Category Details
Overview
Brand Transition Networks
Product Line Transition Networks
Model SM24TAT4XB
Manufacturer Transition Networks
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features Class of Service (CoS), Device Management System (DMS), DHCP client, DHCP relay, DHCP server, DiffServ Code Point (DSCP) support, DiffServ support, Dynamic VLAN Support (GVRP), Firmware upgradable, IGMP proxy, IGMP querier, IP Precedence, IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, Loopback detection, Multiple Spanning Tree Protocol (MSTP) support, Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Store and forward, Trivial File Transfer Protocol (TFTP) support, Weighted Round Robin (WRR)
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 14000 bytes
MAC Address Table Size 32K entries
Manageable Yes
PoE Budget 370 watt
Ports 24
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, HTTP, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP
Routing Protocol IGMP, IGMPv2, IGMPv3, MLD, MLDv2, Static IP routing
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet
Connectivity
Interface Provided 1 x serial (RS-232), 24 x 1000Base-T RJ-45 PoE+ – 30 W, 4 x 10GBase-X SFP+ uplink
Port Quantity 24
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
Power
Frequency 50/60 hertz
Power Consumption Operational 44 watt
Technical Information
Encryption SSL
Max Operating Temperature 122 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 5 – 90% (non-condensing)
Product Information
Authentication Method RADIUS, Secure Shell (SSH), TACACS+
Capacity ACL entries: up to 512
Country North America
Device Type Internal power supply
Packaged Quantity 1
Performance Switching capacity: 128 Gbps
Ports (2nd) Quantity 4
Dimensions & Weight
Height 1.7 inch
Weight 8.38 lbs
Width 17.4 inch
Depth 8.3 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards FCC Class A certified, IEEE 1588v2, UL
ENERGY STAR Certified No
EPEAT Compliant No
