This switch is a next generation smart managed switch with 20Gbps switching capacity. It provides 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability and additional 100/1000 dual speed SFP slots. The embedded Device Management System (DMS) provides the benefits of ease of use in the IP surveillance, wireless Access Point and other applications. The DMS capability built into the switches is the from transition networks and provides time-saving features enabling security integrators or network administrators to establish and document a baseline deployment, automatically discover and remotely configure attached IP-powered devices.
switch ports

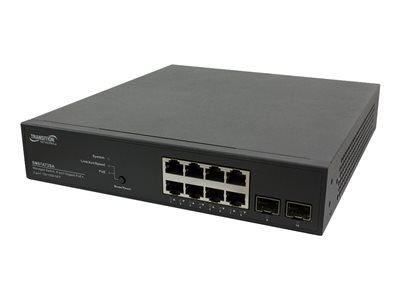

Transition Networks SM8TAT2SA-NA – switch – 8 ports – managed
Transition Networks SM8TAT2SA-NA – Switch – managed – 8 x 10/100/1000 (PoE+) + 2 x 100/1000 SFP – desktop – PoE+ (130 W) – AC 100 – 240 V
1,899.00 د.إ
Device Type | Switch – 8 ports – managed |
Enclosure Type | Desktop |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 (PoE+) + 2 x 100/1000 SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 130 W |
Performance | Backplane switching capacity: 20 Gbps |
Capacity | QoS hardware queues: 8 |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 9KB |
Routing Protocol | IGMPv2, IGMP, IGMPv3 |
Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, CLI |
Authentication Method | RADIUS, TACACS+ |
Features | IGMP snooping, Syslog support, firmware upgradable, Per-VLAN Spanning Tree (PVST), DHCP snooping, Access Control List (ACL) support, DHCP server, MLD snooping, LLDP support, DHCP relay, Port Security, Multicast VLAN Registration (MVR), IP source guard, Auto Power Reset (APR) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at |
Expansion / Connectivity | Interfaces: 8 x 1000Base-T RJ-45 PoE+ – 130 W <br> 2 x 1000Base-X SFP |
Power | Voltage Required: AC 100 – 240 V |
Miscellaneous | Included Accessories: Mounting brackets |
Compliant Standards | FCC Class A certified, IEC 60950 |
Localization | North America |
Dimensions & Weight | Width: 8.7 in <br> Depth: 9.5 in <br> Height: 1.7 in <br> Weight: 4.41 lb |
