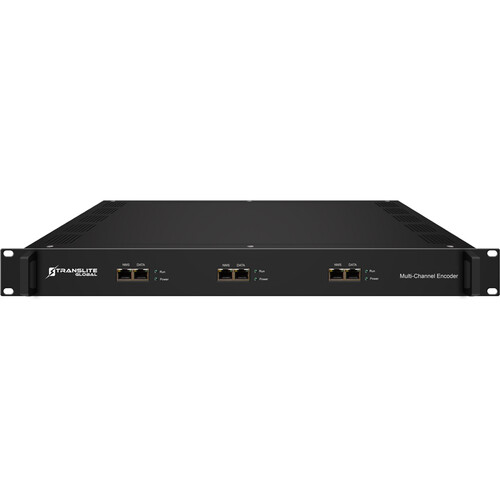

Translite Global 24-Channel HDMI H.264 Multichannel Encoder

Add to Wishlist
Key Features
  • MPEG4 AVC/H.264 Encoding
  • 24 x HDMI Video Inputs
  • Supports up to 1080p60 In/1080p30 Out
  • 3 x MPTS & 24 x SPTS Outputs
  • 3 x NMS & 3 x Data Ports
  • Streams via UDP and RTP/RTSP via GbE
  • Bit Rate up to 13 Mb/s per Channel
  • AAC-LC, AAC-HE, and MPEG Layer 2 Audio
  • Supports QR Codes, Logos & Captioning
  • Web UI Network Management

20,799.00 د.إ

Add to Wishlist

Encode and stream HDMI video for cable distribution and digital broadcasting using the 24-Channel HDMI H.264 Multichannel Encoder from Translite Global. This MPEG4 AVC/H.264 streaming encoder supports up to 1080p60 video input resolution and up to 1080p30 streaming output via UDP and RTP/RTSP. The 24 HDMI input ports share 3 encoder modules that support 3 multipoint and 24 single-point outputs. A power cord and 24 4.9′ HDMI cables are included with the encoder.

HDMI Input
  • The TL-9228S-24 encoder provides 24 HDMI inputs that share two encoder modules.
  • The integrated modules support 3 multipoint and 24 single-point outputs.
Video Encoding
  • This encoder uses the popular MPEG4 AVC/H.264 video encoding format.
Audio Encoding
  • Audio encoding includes MPEG-1 Layer II, LC-AAC, and HE-AAC formats.
  • Audio features include AC3 pass-through and gain adjustment.
IP Streaming
  • IP streaming is output over UDP and RTP/RTSP protocols.
  • Optional single ASI output as a mirror of the MPTS.
Customization
  • This encoder supports QR codes, logos, and caption insertions for customizing your output.
Null Packet Filter Support
  • Supports a filter function to remove unnecessary null packets while producing a steady stream.
Control Options
  • Control and update the encoder via web management.
SKU: TL-9228S-24 Category: Tag:
Inputs / Outputs
Video Inputs
24x HDMI Female
Audio Inputs
No
Audio Outputs
No
Other I/O
3x RJ45 LAN Input/Output
Expansion Slots
No
Format Support
Input Video Format
HDMI
1080p at 50/60 fps
1080i at 50/60 fps
720p at 50/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 60 fps
Embedded Audio
HDMI Input
LAN (RJ45) Output
Standards
HDR Support
No
IP Streaming
Video IP Encoding
H.264, RTP, RTSP, UDP: 1920 x 1080 at 25p, 30p (1 to 13 Mb/s)
H.264, RTP, RTSP, UDP: 1280 x 720 at 25p, 30p (1 to 13 Mb/s)
H.264, RTP, RTSP, UDP: 720 x 576 at 25p (1 to 13 Mb/s)
H.264, RTP, RTSP, UDP: 720 x 480 at 30p (1 to 13 Mb/s)
Audio IP Encoding
AAC-LC, MPEG Layer 2: 24-Bit / 48 kHz (48.00 to 384.00 Kb/s)
AAC-HE: 24-Bit / 48 kHz (48.00 to 128.00 Kb/s)
Hardware
Tally Light
Yes
Wireless
No
Power
Power I/O
1x IEC C14 (110 to 220 VAC ) Input
Environmental
Operating Temperature
32 to 113°F / 0 to 45°C
Storage Temperature
-4 to 176°F / -20 to 80°C
Operating Humidity
20 to 80%
General
Dimensions
19 x 15.7 x 1.7″ / 482 x 400 x 44 mm
