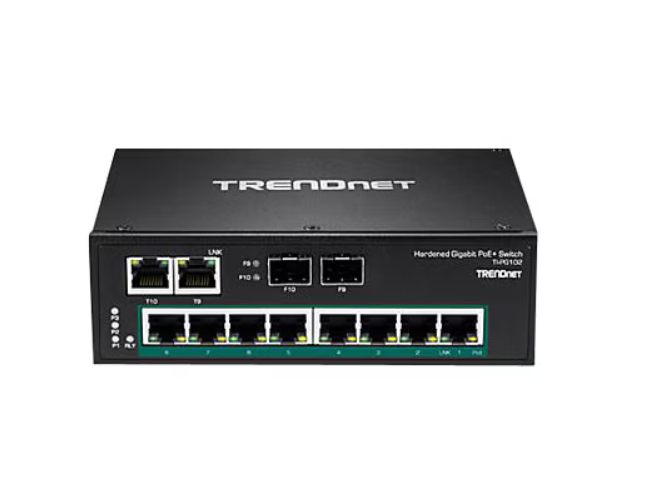

TRENDnet 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, 8 x Gigabit PoE+ Ports, DIN-Rail Mount, 2 x SFP Slots, 240W


Quick tech specs

  • 8 x Gigabit PoE+ ports & 2 x Gigabit RJ-45 / SFP shared ports
  • 20 Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Operating temperature range of -40°
  • 167°F)
  • Alarm output triggered by power failure
  • Power supply sold separately (models:
  • 240 W PoE power budget
  • Power supply sold separately (models: TI-S24048 / 48VDC3000)

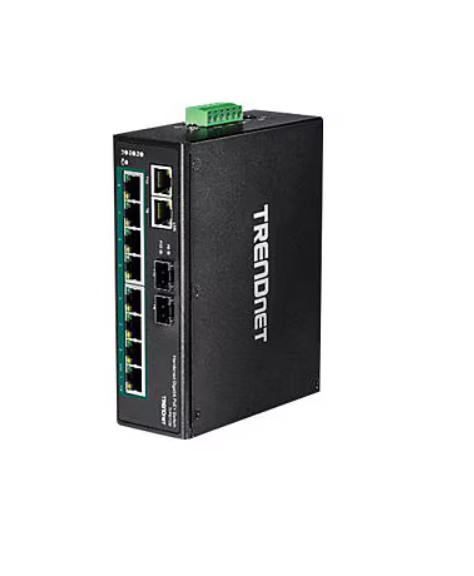

  • Includes DIN-rail and wall mounts
  • 75°C (-40°

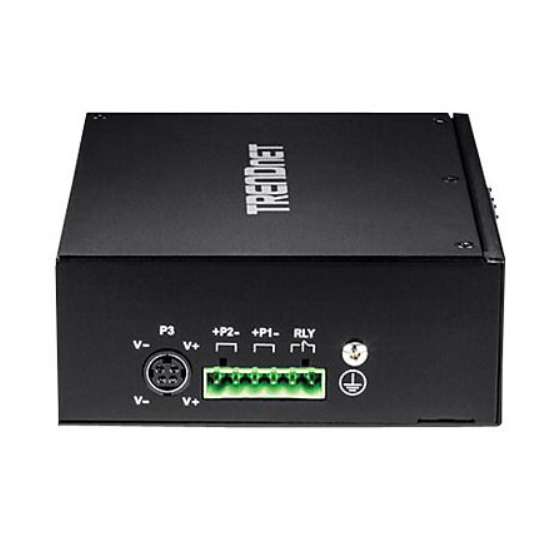

  • Dual redundant power inputs with overload current protection
  • Lifetime TRENDnet

AED2,199.00

Know your gear

8 x Gigabit PoE+ ports & 2 x Gigabit RJ-45 / SFP shared ports, 240 W PoE power budget, 20 Gbps switching capacity, Power supply sold separately (models: TI-S24048 / 48VDC3000), Hardened IP30 rated metal switch, Includes DIN-rail and wall mounts, Operating temperature range of -40° – 75°C (-40° – 167°F), Dual redundant power inputs with overload current protection, Alarm output triggered by power failure, Lifetime TRENDnet Manufacturer’s Warranty, Power supply sold separately (models: TI-S24052, TI-S24048, 48VDC3000),TRENDnet’s 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.PoE PowerA 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.Fault ToleranceFeatures dual redundant power inputs with output alarm relay.Industrial Hardened DesignEquipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 – 75°C (-40 – 167°F).Package Contents:- TI-PG102- Quick Installation Guide-Removable terminal block- DIN-Rail and wall mount kitNDAA / TAA compliant (U.S. and Canada only)
SKU: TI-PG102 Category: Tag:
Category Attribute Value
Overview Brand TRENDnet
Model TI-PG102
Manufacturer TRENDnet
Network & Communication Data Link Protocols Gigabit Ethernet
Form Factor DIN Rail Mountable, Wall Mountable
Layer Supported 2
Network Technology 1000Base-T, 1000Base-X
Connectivity Expansion Slot Details 2 x Gigabit Ethernet Expansion Slot, 2 x Gigabit Ethernet Network, 8 x Gigabit Ethernet Network
Power Power Source Power Supply
Redundant Power Supply Supported Yes
Product Information Country of Origin Taiwan
Product Type Ethernet Switch
Dimensions & Weight Height 3 inch
Length 6.1 inch
Weight 1.43 lb
Width 5 inch
Depth 10 inch
