TRENDnet TI-G262 24-Port Gigabit Unmanaged Industrial Switch

Add to Wishlist
Key Features
  • 24 x Gigabit Ethernet Ports
  • 2 x Gigabit SFP Ports
  • 52 Gb/s Switching Capacity
  • 38.69 Mpps Forwarding Rate

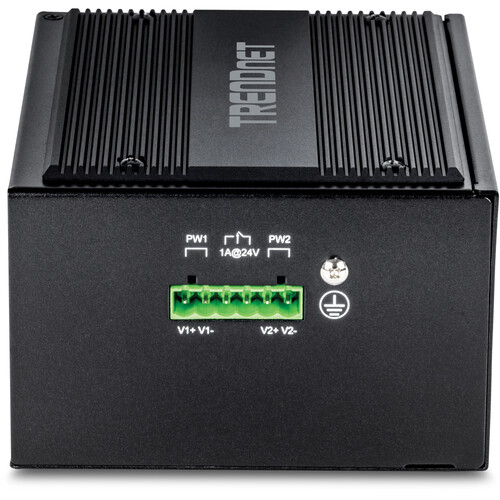

  • Includes 6-Pin Removable Terminal Block

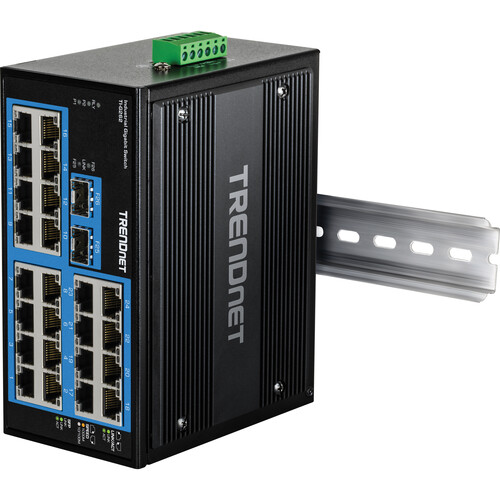

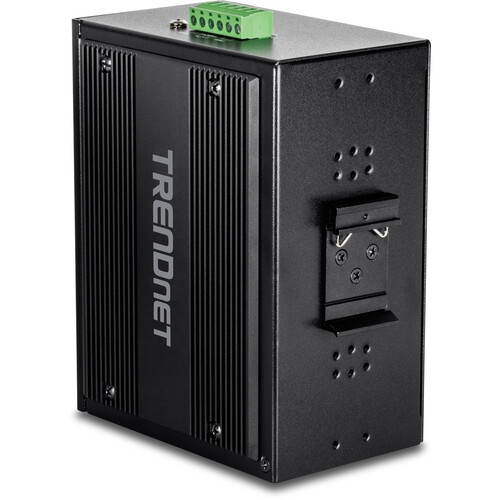

  • DIN-Rail & Wall Mountable
  • IP30 Rated Metal Case
  • Redundant Power Support
  • Plug & Play

2,599.00 د.إ

Add to Wishlist

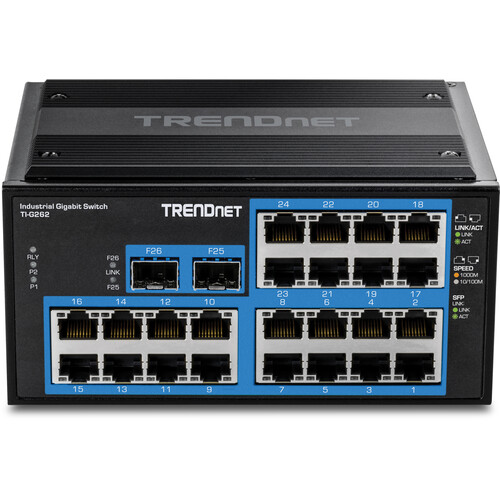

TRENDnet TI-G262 Overview

Built to withstand harsh environments, the TI-G262 24-Port Gigabit Unmanaged Industrial Switch from TRENDnet is designed to withstand temperatures between -40 and 167°F. Additionally, its hardened metal housing is IP30 rated to resist shocks, falls, and vibrations. Offering 24 Gigabit-speed Ethernet ports alongside two SFP slots for 1 Gb/s fiber uplinks, this switch may be mounted onto a DIN-rail or wall and powered through its removable 6-pin terminal block.

Performance
This switch features a 52 Gb/s switching capacity and 38.69 Mpps forwarding rate.
Redundant Power
Multiple power inputs, supporting separately purchased power supplies, provide redundant power with overload current protection, minimizing overall network downtime.
Alarm Relay
An alarm relay is triggered by power failure of primary and/or redundant power.
Grounding Point
A Grounding point provides high voltage protection.
SKU: TI-G262 Category: Tag:
Key Specs
Inputs/Outputs
24x RJ45 Gigabit Ethernet
2x SFP Gigabit Ethernet
1x Block
Stackable
No
Switching Bandwidth
52 Gb/s
Stackable
No
Protocols
Supported Protocols
Auto-MDIX/MDI
Jumbo Frames Support
9000 Bytes
MAC Address Table Size
8K
Performance
Forwarding Rate
38.69 Mpps
Switching Bandwidth
52 Gb/s
Packet Buffer
512 kB
Electrical
Power Draw
10.64 W
Power Supply Type
Internal
General
Certifications
CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6
Cooling System
Passive
Mean Time Between Failures (MTBF)
0.5 Million Hours
Indicator Lights
Yes
Rack Mountable
No
Dimensions
6.4 x 4.7 x 3″ / 163 x 120 x 77 mm
Weight
2.1 lb / 936 g
Packaging Info
Package Weight
3.015 lb
Box Dimensions (LxWxH)
9 x 7.5 x 4.2″
