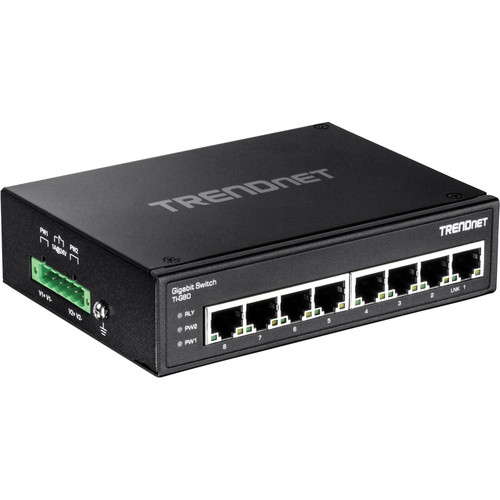

TRENDnet TI-G80 8-Port Hardened Industrial Gigabit DIN-Rail Switch

Add to Wishlist
Key Features
  • 8 x Gigabit Ethernet Ports
  • 16 Gbps Switching Capacity
  • Hardened IP30 Rated Metal Switch
  • Includes DIN-Rail and Wall Mounts
  • Extreme Operating Temperature Range
  • Dual-Redundant Power Inputs
  • Built-In Overload Current Protection
  • Alarm Output Triggered by Power Failure

AED999.00

Add to Wishlist

TRENDnet TI-G80 Overview

Designed for extreme industrial environments, the TI-G80 8-Port Hardened Industrial Gigabit DIN-Rail Switch from TRENDnet features a hardened IP30 rated metal enclosure with the ability to withstand extreme temperatures from -40 to 167°F. This rail switch features eight Gigabit Ethernet ports, a 6-pin removable terminal block, LED indicators, and a grounding point. Once installed, the switch features a 16 Gbps switching capacity to ensure sufficient bandwidth is allocated to each network port. The TI-G80 DIN-Rail Switch includes both rail- and wall-mount hardware for easy installation. Dual redundant power inputs make it easy to set up an alternate power source while the built-in alarm alerts you when the original power source fails.

Network Ports
8 x Gigabit Ethernet ports
DIN-Rail / Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
16 Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: model TI-M6024)
Alarm Output
Alarm output triggered by power failure of primary and/or redundant power
Extreme Temperatures
Hardened switch is rated for an operating temperature range of -40 to 167°F
Electro Magnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards
Certifications
Rated for information technology (ITE) equipment (EN55022/24)
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges
SKU: TI-G80 Category: Tag:

TRENDnet TI-G80 Specs

Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
Device Interface
8 x Gigabit ports
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Performance
Data RAM Buffer: 1024 KB
Switching Fabric: 16 Gbps
MAC Address Table: 8 K entries
Forwarding Rate: 11.9 Mpps (64-byte packet size)
Power
Input: 12 – 56 VDC
Compatible Power Supply: TI-M6024 (sold separately)
Consumption: Max. 5 Watts
Terminal Block
Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.34 mm2 to 2.5 mm2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
Wire strip length: 7-8 mm
Relay Mode
Alarm Relay Contact
• Relay outputs with current carrying capacity of 1 A, 24 V DC
• Open circuit mode when two power sources are connected
• Short circuit mode when only one power source is connected
MTBF
510,304 hours
Housing
IP30 metal case
DIN-rail mount
Wall mount
Grounding point
8 KV ESD protection
6 KV surge protection
Temperature & Humidity
Operating Temperature
-40 to 167° F / -40 to 75°C
Operating Humidity
Max. 95% non-condensing
Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
Dimensions
5.6 x 4.1 x 1.4″ / 143 x 104 x 36 mm
Weight
1.1 lb / 514 g
Packaging Info
Package Weight
1.8 lb
Box Dimensions (LxWxH)
8.6 x 6.6 x 2.7″
