TRENDnet TI-PG80 8-Port Hardened Industrial Gigabit POE+ DIN-Rail Switch

Add to Wishlist
Key Features
  • 8 x Gigabit Ethernet Ports
  • Up to 200 Watt PoE+ Power Budget
  • 16 Gbps Switching Capacity
  • Hardened IP30 Rated Metal Switch
  • Includes DIN-Rail and Wall Mounts
  • Extreme Operating Temperature Range
  • Dual-Redundant Power Inputs
  • Built-In Overload Current Protection
  • Alarm Output Triggered by Power Failure

AED999.00

Add to Wishlist

TRENDnet TI-PG80 Overview

Designed for extreme industrial environments, the TI-PG80 8-Port Hardened Industrial Gigabit POE+ DIN-Rail Switch from TRENDnet features a hardened IP30-rated metal enclosure with the ability to withstand extreme temperatures from -40 to 167°F. This rail switch features eight Gigabit Ethernet ports, a 6-pin removable terminal block, LED indicators, and a grounding point. Once installed, the switch features a 200-watt PoE+ power budget and a 16 Gbps switching capacity to ensure sufficient bandwidth and PoE power is allocated to each network port. The TI-PG80 DIN-Rail Switch includes both rail- and wall-mount hardware for easy installation. Dual redundant power inputs make it easy to set up an alternate power source while the built-in alarm alerts you when the primary power source fails.

Full PoE+ Power Budget
Supplies up to 30 Watts of PoE/PoE+ power per port (802.3at/802.3af) with an up to 200-Watt PoE power budget
Network Ports
8 x Gigabit PoE+ Ethernet ports
DIN-Rail / Wall Mounts

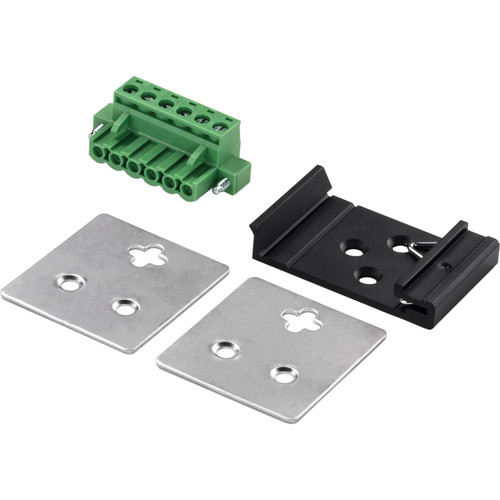

IP30-rated metal enclosure with included DIN-rail and wall-mount hardware
Switching Capacity
16 Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: model TI-S24048)
Alarm Output
Alarm output triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
Extreme Temperatures
Hardened switch is rated for an operating temperature range of -40 to 167°F
Electro Magnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards
Certifications
Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges
Additional Features
  • Auto-negotiation
  • Auto store and forward authentication
  • Automatic address learning and address aging
  • ESD 8 KV and surge 6 KV protection
SKU: TI-PG80 Category: Tag:

TRENDnet TI-PG80 Specs

Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af PoE
IEEE 802.3at PoE+
Device Interface
8 x Gigabit PoE+ ports
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Performance
Data RAM Buffer: 1024 KB
Switching Fabric: 16 Gbps
MAC Address Table: 8 K entries
Jumbo Frame: 9 KB
Forwarding Rate: 11.9 Mpps (64-byte packet size)
Power
Input: 48 – 56 V DC
Compatible Power Supply: TI-S24048 (sold separately)
Consumption: Max. 5.76 Watts (without PD)
PoE
PoE Budget: 200 Watts
Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Terminal Block
Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.34 mm2 to 2.5 mm2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
Wire strip length: 7-8 mm
Relay Mode
Alarm Relay Contact
Relay outputs with current carrying capacity of 1 A, 24 V DC
Open circuit mode when two power sources are connected
Short circuit mode when only one power source is connected
Power Consumption
Max. 5.76 Watts (without PoE)
MTBF
510,304 hours
Housing
IP30 metal case
DIN-rail mount
Wall mount
Grounding point
8 KV ESD protection
6 KV surge protection
Temperature & Humidity
Operating Temperature
-40 to 167° F / -40 to 75°C
Operating Humidity
Max. 95% non-condensing
Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
Dimensions
5.6 x 4.1 x 1.4″ / 143 x 104 x 36 mm
Weight
1.22 lb / 554 g
Packaging Info
Package Weight
1.79 lb
Box Dimensions (LxWxH)
8.7 x 6.8 x 2.7″
