TRENDnet TPE-1020WS v1.0R 10-Port Gigabit Web Smart PoE+ Switch

Add to Wishlist
Key Features
  • 8 x Gigabit PoE+ Ports
  • 2 x Gigabit Ethernet Ports
  • 2 x Shared SFP Slots
  • 20 Gb/s Switching Capacity
  • Supports IPv6 Configuration
  • Traffic Management
  • Rapid Troubleshooting
  • 8 Mb RAM Buffer
  • 14.8 Mb/s Forwarding Rates
  • Rackmountable

AED1,199.00

Add to Wishlist

TRENDnet TPE-1020WS Overview

The TPE-1020WS v1.0R 10-Port Gigabit Web Smart PoE+ Switch from Trendnet delivers a 20Gb/s switching capacity with eight PoE+ Gigabit ports and two Gigabit Ethernet uplink ports shared with two SFP slots. This IPv6 ready switch offers advanced traffic management, troubleshooting, security, energy-saving with GREENnet technology, and monitoring features at a reduced cost.

This device has a broad range of network configurations supported by 802.3ad link aggregation, asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS), and Quality of Service (QoS) queue scheduling. Real-time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting.

Hardware Design

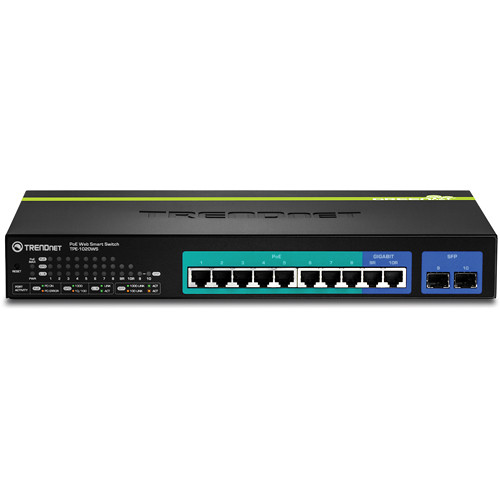

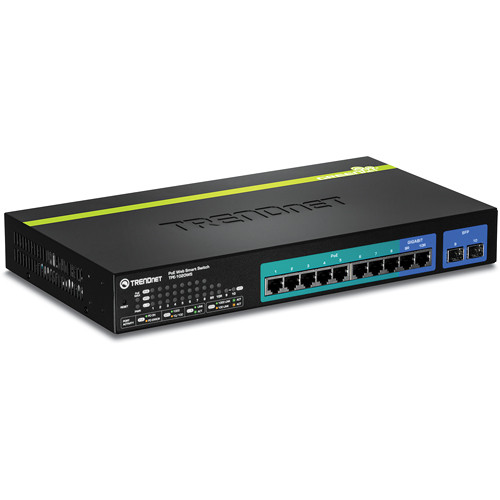

The fanless rackmountable housing features eight Gigabit PoE+ ports (automatically supplies PoE+ (30W) and PoE (15W)) and two Gigabit Ethernet uplink ports shared with two SFP slots
IPv6 Ready
This switch supports IPv6 configuration and neighbor IPv6 network support
Traffic Management
A broad range of network configurations are supported by 802.3ad link aggregation, asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS), and Quality of Service (QoS) queue scheduling
Troubleshooting
Real-time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting
Security
Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered security controls
Monitoring
RMON, SNMP, SNMP trap, and port-mirroring support administrator monitoring solutions
Energy Savings
The GREENnet technology helps to save energy up to 70%
SKU: TPE-1020WS Category: Tag:
Key Specs
Inputs/Outputs
8x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
2x RJ45/SFP Combo Gigabit Ethernet
Stackable
No
Switching Bandwidth
20 Gb/s
PoE Power Budget
75 W
Stackable
No
Protocols
Supported Protocols
Head-of-Line (HOL) Blocking
IGMP Snooping
Link Aggregation
Port Mirroring
Queuing
Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support
10,000 Bytes
MAC Address Table Size
16K
Multicast Groups
256
Security
Security Features
DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Performance
Forwarding Rate
14.8 Mpps
Switching Bandwidth
20 Gb/s
Packet Buffer
8 Mb
Electrical
PoE Power Budget
75 W
Power Draw
92.3 W (Active)
Input Power
100 to 240 VAC, 50 / 60 Hz
General
Certifications
No
Cooling System
Passive
Rack Mountable
No
Dimensions
13 x 7.2 x 1.7″ / 33 x 18.2 x 4.4 cm
Weight
4 lb / 2 kg
Packaging Info
Package Weight
6.35 lb
Box Dimensions (LxWxH)
15.6 x 11.1 x 3.3″
