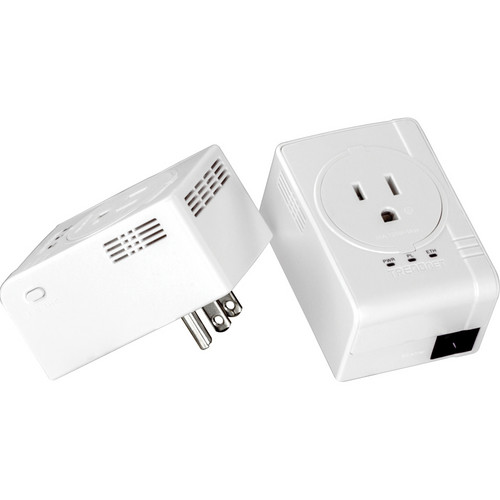

TRENDnet TPL-407E2K Powerline 500 AV Nano Adapter Kit with Built-In Outlet

Add to Wishlist

Key Features
IEEE 1901 & IEEE 802.3, 3x, and 3u
1 x 10/100 Mbps Auto-MDIX RJ-45 Port
1 x Built-In Electrical Power Socket
1 x Sync / Reset Button
2 ~ 68 MHz Frequency Band
TDMA and CSMA/CA Protocols
Up to 500Mbps Data Transfer Speed
Up to 4 Overlapping Powerline Networks
Up to 984 ft / 300 m Coverage
128-Bit AES Security Standard

199.00 د.إ

Add to Wishlist

The TPL-407E2K Powerline 500 AV Nano Adapter Kit with Built-In Outlet from TRENDnet is a powerline adapter kit complete with two adapters each equipped with one 10/100 Ethernet port as well as one built-in power socket.

TRENDnet Powerline 500 Overview

The TPL-407E2K Powerline 500 AV Nano Adapter Kit with Built-In Outlet from TRENDnet is a powerline adapter kit complete with two adapters each equipped with one 10/100 Ethernet port as well as one built-in power socket. You can see the condition of your network with the integrated LED indicators showing the power, powerline connection, and Ethernet status.

These adapters are compatible with both TDMA (timed division multiple access) and CSMA/CA (carrier sense multiple access with collision avoidance) to avoid data interruption ensuring enhanced quality of service. This powerline networking kit provides data coverage through existing electrical systems for a range of up to 984 ft, while securing your network is also made simple with 128-Bit AES (advanced encryption standard) compatibility.

Compliant with IEEE 1901 and HomePlug AV standards
High speed networking over an existing electrical system
Adapters automatically connect using an encrypted Powerline signal
One-touch Sync button changes encryption keys
Advanced electrical noise filter boosts performance
Connect one 500 Mbps Powerline AV Adapter to the Internet and then plug in up to 7 additional 500 Mbps Powerline AV adapters for instant connectivity
Share data intensive files, play games, download music and more at faster data transfer rates
Advanced 128-bit AES encryption to ensure total network security
Support for IPv6
Supports up to 16 IGMP based IPTV streams
Power Save mode reduces electrical consumption by up to 80%
Neighbor network support for up to 4 overlapping networks
Network signal transmits up to 984 ft / 300 meters
Auto QoS support through traffic classification and multiple priority queuing
Optional management utility compatible with Windows 8 (32/64-bit), Windows 7 (32/64-bit), Vista (32/64-bit), and XP (32/64-bit) operating systems
SKU: TPL-407E2K Category: Tag:

TRENDnet Powerline 500 Specs

Maximum Data Rate
500 Mb/s
Number of Ethernet Ports
1
Ethernet Standards
IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 1901
Ethernet Speed
10/100 Mb/s
Powerline Technology
HomePlug AV
Powerline Frequency Band
2 to 68 MHz
Protocol
TDMA, CSMA/CA
Modulation Technology
QAM, BPSK, QPSK, OFDM, ROBO Carrier
Maximum Networking Distance
984′ / 300 m
Plug Type
US (3-Pin)
AC Pass-Through
Yes
Maximum Nodes
8
Auto-MDIX Support
Yes
Encryption
128-Bit AES
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Active Power Consumption
3 W
Standby Power Consumption
0.5 W
Operating System Support
Windows
OS Compatibility
Windows
*As of May, 2017: Check with manufacturer for the most up-to-date compatibility
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
14 to 131°F / -10 to 55°C
Dimensions (W x H x D)
3.1 x 2.2 x 2.3″ / 78.7 x 55.9 x 58.4 mm
Weight
3.6 oz / 102 g
Packaging Info
Package Weight
1.1 lb
Box Dimensions (LxWxH)
8.4 x 5.6 x 3.6″
