TRENDnet TPL-422E2K Powerline 1300 AV2 Adapter Kit


Key Features
  • IEEE 1901/1905.1 Standards Compliant
  • IEEE 802.3/3u/3x/3ab Standards Compliant
  • 1 x Gigabit Ethernet Port
  • Dedicated LED Status Indicators
  • Up to 984′ (300m) Range
  • 128-bit AES Encryption
  • MIMO & Beamforming Technology
  • Windows Compatible

399.00 د.إ

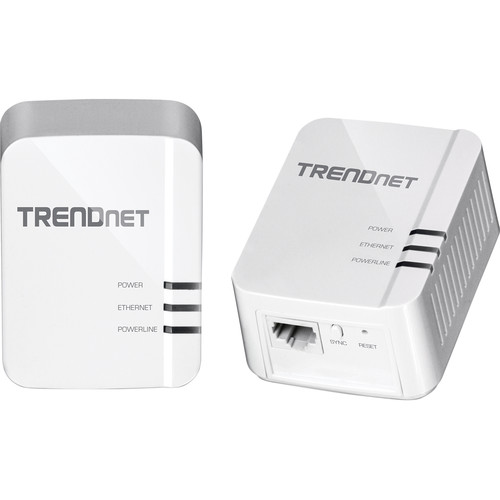

Expand the reach of your network using the powerlines right inside your walls with theĀ TPL-422E2K Powerline 1300 AV2 Adapter KitĀ fromĀ TRENDnet. This kit consists of two TPK-422E powerline adapters giving you the tools needed to set up your own powerline network.

TRENDnet Powerline 1300 AV2Ā Overview

Expand the reach of your network using the powerlines right inside your walls with theĀ TPL-422E2K Powerline 1300 AV2 Adapter KitĀ fromĀ TRENDnet. This kit consists of two TPK-422E powerline adapters giving you the tools needed to set up your own powerline network. If two adapters aren’t enough, this kit supports a total of eight powerline nodes and a maximum networking distance of up to 984′ to cover nearly any space.

Whether you are using two or eight adapters, this powerline kit supports the IEEE 1901 and 1905.1 network standards for data transfer rates of up to 1300 Mb/s via the single Gigabit Ethernet port found on each adapter. Installation is simple, thanks to the dedicated sync button. Once synced, your network connection is protected using 128-bit AES encryption while MIMO and beamforming technologies ensure you receive a reliable and stable powerline network connection.

  • Press the Sync button to change existing Powerline encryption keys
  • Powerline 1300 technology delivers fast and stable networking to seamlessly connect devices and stream 4K video
  • Gigabit port for computers, smart TVs, or other network-enabled devices
  • Cross compatible with Powerline 1200, 600, 500, and 200 adapters

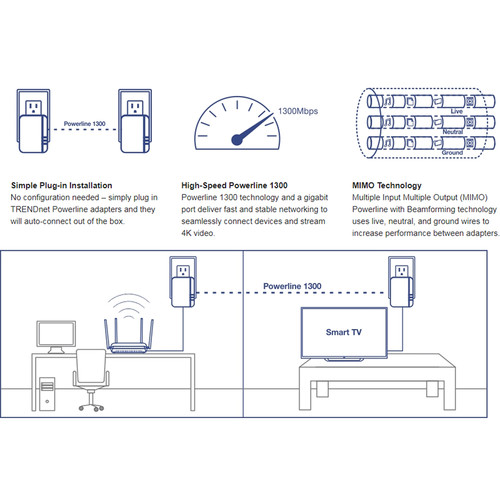

  • Multiple Input Multiple Output (MIMO) Powerline with Beamforming technology uses live, neutral, and ground wires to increase performance between adapters.
  • Use up to 8 adapters on a single Powerline network
  • TRENDnet adapters auto-connect out of the box
  • Powerline communication is protected with 128-bit AES encryption

TRENDnet Powerline 1300 AV2Ā Specs

Maximum Data Rate
1300 Mb/s
Number of Ethernet Ports
1
Ethernet Standards
IEEE 1901, IEEE 1905.1, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet Speed
10/100/1000 Mb/s
Powerline Technology
HomePlug 1.0
Powerline Frequency Band
2 to 68 MHz
Protocol
CSMA/CA
Modulation Technology
QAM, BPSK, QPSK, OFDM, ROBO Carrier
Maximum Networking Distance
984.25′ / 300Ā m
Plug Type
US (3-Pin)
AC Pass-Through
No
Maximum Nodes
8
Encryption
128-Bit AES
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Active Power Consumption
4 W
Power-Saving Mode
No
OS Compatibility
Windows
*As of May, 2018: Check with manufacturer for the most up-to-date compatibility
Operating Temperature
32 to 122°F / 0 to 50°C
Operating Humidity
0 to 90%
Certifications
ETL, FCC, IC
*as per Manufacturer
Dimensions (W x H x D)
2.3 x 3 x 2.6″ / 5.84 x 7.62 x 6.6Ā cm
Weight
3.8Ā oz / 107.73Ā g
Packaging Info
Package Weight
1.07 lb
Box Dimensions (LxWxH)
7.9 x 5.55 x 3.25″
