Tripp Lite 14.5kW 3-Phase Switched PDU, LX Interface, 200/208/240V Outlets (24 C13/6 C19), LCD, IEC 309 60A Blue, 1.8m/6


Quick tech specs

  • 14.5kW Hubbell PDU w multi-function touchscreen LCD distributes,monitors and manages AC power.Ā  Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.
  • 30 individually controllable outlets—24 C13,6 C19
  • IEC 309 60A Blue PDU input with 6 ft. AC power cord
  • 14.5kW 200/208/240V 3-phase switched 1.8-meter 0U PDU
  • Touchscreen LCD with mobile access option via QR code

AED13,599.00

Know your gear

The PDU3EVSR6G60 14.5kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

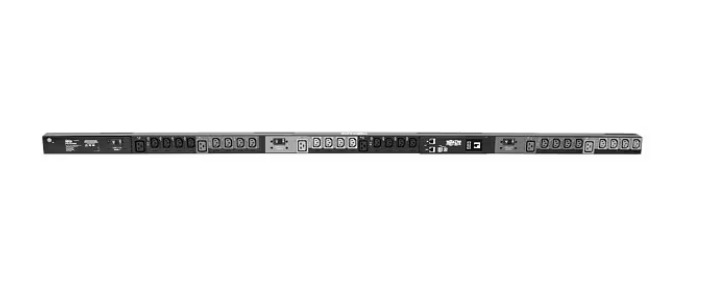

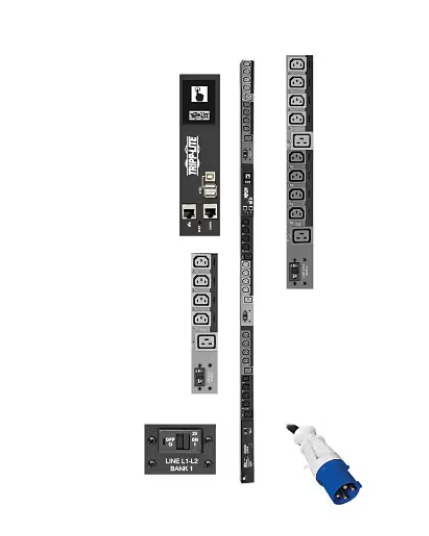

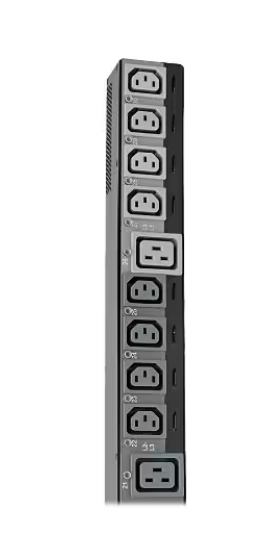

The 0U PDU features 30 switched outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with IEC 309 60A Blue plug connects the PDU to a compatible AC power source, generator or protected UPS.
TheĀ  Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet, SSH, or CLI. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

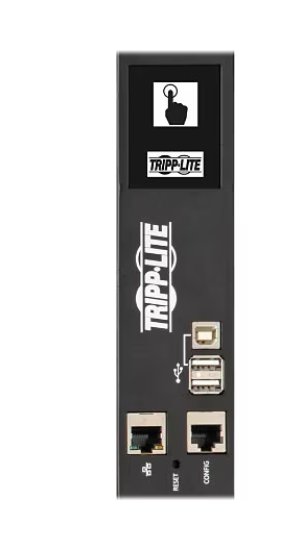

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
SKU: PDU3EVSR6G60 Category: Tag:
Overview
Specification Details
Brand Tripp Lite
Product Line Tripp Lite
Model 14.5kW 3-Phase Switched PDU, LX Interface, 200/208/240V Outlets (24 C13/6 C19), LCD, IEC 309 60A Blue, 1.8m/6 ft. Cord, 0U 1.8m/70 in. Height, TAA
Manufacturer Tripp Lite
Network & Communication
Specification Details
Remote Management HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, Serial, USB
Connectivity
Specification Details
Input Connectors 1
Interface Provided 1 x management (Fast Ethernet) – RJ-45, 1 x serial – RJ-45, 1 x USB – 4 pin USB Type B, 2 x USB – 4 pin USB Type A
Power
Specification Details
Emergency Power Off Amp meter, Current meter, Email alerts support, Firmware upgradable, LCD display
Frequency Provided 50/60 hertz
Input Connector Type Power IEC 60309 60A
Input Wiring 3-phase
Max Input Current 24 ampere
Output Connector Quantity 30
Output Connector Type Power IEC 60320 C13, Power IEC 60320 C19
Power Output Connectors Details 24 x power IEC 60320 C13, 6 x power IEC 60320 C19
Power Provided 14.5 kilograms per millimetere
Provided Voltage AC 200/208/240 volt
Required Voltage AC 200/208/240 volt
Technical Information
Specification Details
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 122 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Product Information
Specification Details
Cord Length 6 ft
Features Vertical orientation
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Specification Details
Cables Power cable – external – 6 ft
Included Accessories 30 plug-lock inserts
Dimensions & Weight
Specification Details
Height 70 inch
Height (Rack Units) 0
Weight 20.02 lbs
Width 2.2 inch
Depth 2.6 inch
Physical Characteristics
Specification Details
Color Category Black, Gray
