Tripp Lite 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch, Metal Housing – switch – 16


Quick tech specs

  • Unmanaged switch provides gigabit network connection for multiple devices
  • Ideal for home or small offices
  • 16 auto-negotiable 10/100/1000Mbps
  • Supports auto MDI/MDIX cross-over function
  • 2 Gbps switching capacity per port with full duplex
  • Unmangaged switch/ Desktop Ethernet Switch/ Network Switch
  • workgroups and creative production environments.
  • Dual mini-GBIC SFP ports
  • consumes very little input power 20W max
  • Tripp Lite is now a part of the Eaton family

999.00 د.إ

Know your gear

The NG16 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds 10/100/1000 Mbps Ethernet capacity to your home office, small office, workgroup or creative production environment. Share large bandwidth-intensive files, such as CAD drawings and videos, at Gigabit speeds, improving efficiency and cutting costly downtime.

This rack-mount/desktop switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. No configuration is required, so you can have your Gigabit network up and running immediately. Easy-to-read LEDs indicate connection and activity status for each port. IEEE 802.3x flow control allows smooth transmission of large files.

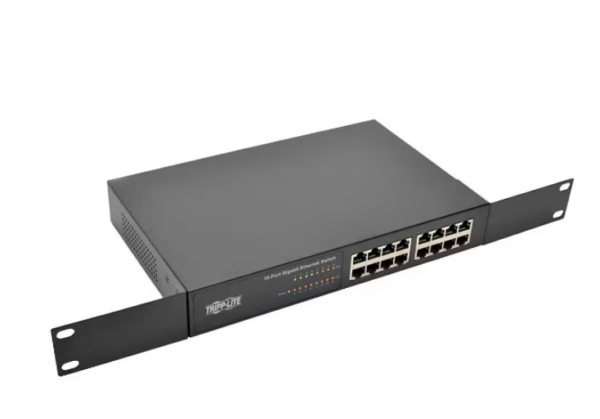

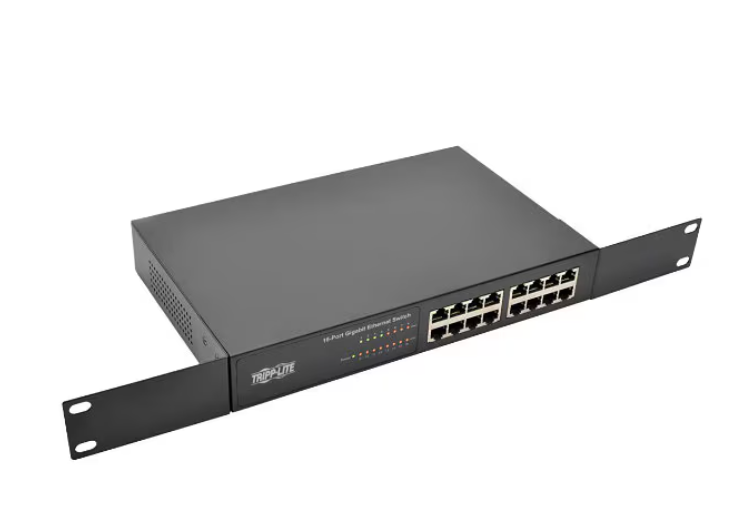

The NG16 supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. It consumes very little input power – just seven watts max. The detachable five-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.

Category: Tag:
Category Details
Overview
Brand Tripp Lite
Product Line Tripp Lite
Model 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch, Metal Housing
Manufacturer Tripp Lite
Network & Communication
Compliant Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Features Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Crossover detection, Energy Efficient Ethernet, Flow control, Full duplex capability, MAC address aging, MAC address learning
Form Factor (Hubs & Switches) Desktop, Rack-mountable
Jumbo Frame Support 9000 bytes
Manageable No
Ports 16
Product Type Switch
Status Indicators Link/activity, Port status, Port transmission speed, Power
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 16 x 1000Base-T RJ-45
Port Quantity 16
Port Type 10/100/1000
Power
Frequency 50/60 hertz
Power Consumption Operational 7 watt
Technical Information
Max Operating Temperature 104 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 10 – 90% (non-condensing)
Product Information
Device Type Internal power supply
Packaged Quantity 1
Performance Switching capacity: 32 Gbps
Rack Mounting Kit Included
Included Items

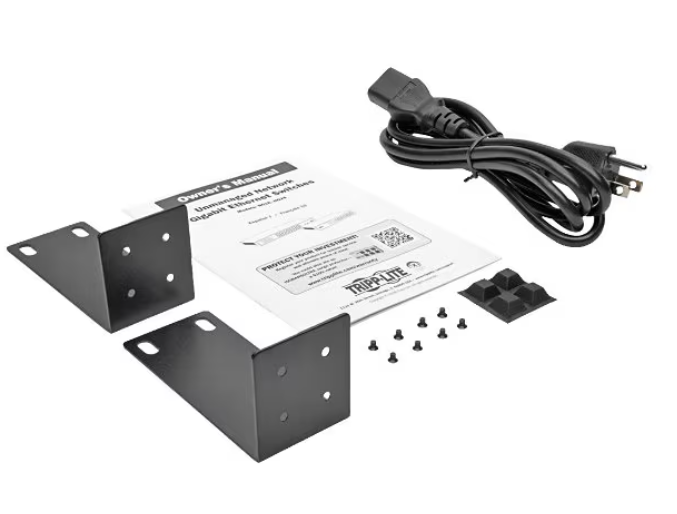

Included Accessories 4 rubber feet
Dimensions & Weight
Height 3 inch
Height (Rack Units) 1
Weight 3.2 lbs
Width 9.6 inch
Depth 17.1 inch
Physical Characteristics
Color Black
Color Category Black
Certifications & Listings
Compliant Standards CAN/CSA C22.2 No. 60950-1-07 Second Edition 2014-10, EMI, FCC Class B certified, Plug and Play, RoHS, UL 60950-1:2007 Second Edition
ENERGY STAR Certified No
