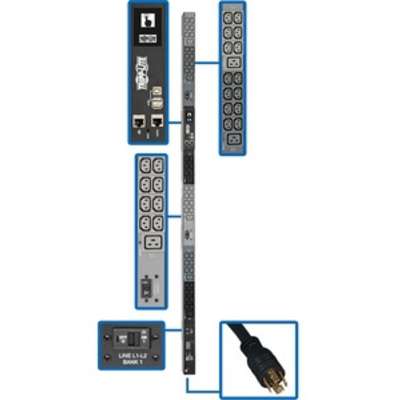

Tripp Lite 3-Phase PDU Monitored 10kW 200/208/240V 42 C13; 6 C19; L21-30P


  • 10kW 200/208/240V 3-phase 0U monitored PDU
  • 48 outlets-42 C13
  • Built-in LX Platform interface for remote access 24/7
  • NEMA L21-30P input with 10 ft. AC power cord
  • Touchscreen LCD with mobile access option via QR code

AED12,099.00

The PDU3EVN10L2130B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

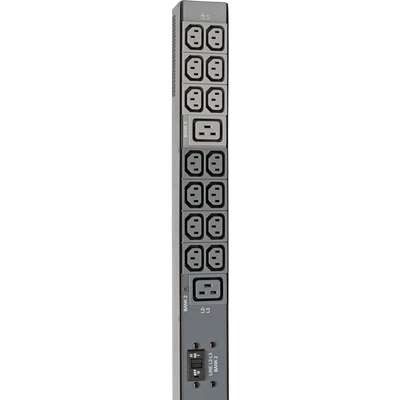

Recommended for your IT or industrial application, the monitored PDU features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L21-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.

SKU: PDU3EVN10L2130B Category: Tag:
Category Attribute Details
General Information Product Name Tripp Lite 3-Phase PDU Monitored 10kW 200/208/240V 42 C13; 6 C19; L21-30P
Product Model PDU3EVN10L2130B
Product Type PDU
Technical Information PDU Type Monitored
Phase Three Phase
Plug / Connector Type NEMA L21-30P
Receptacle Type IEC 60320 C13, IEC 60320 C19
Receptacle Detail 42 x IEC 60320 C13
6 x IEC 60320 C19
Protection Type Overload Protection
Interfaces/Ports Network (RJ-45) Yes
Power Description Input Voltage 230 V AC
Output Voltage 200 V AC, 208 V AC, 240 V AC
Power Rating (Watt) 10 kW
Input Current 24 A
Physical Characteristics Mounting Orientation Vertical
Mount Type Rack-mountable
Rack Height 0U
Height 70″
Width 2.2″
Depth 2.9″
