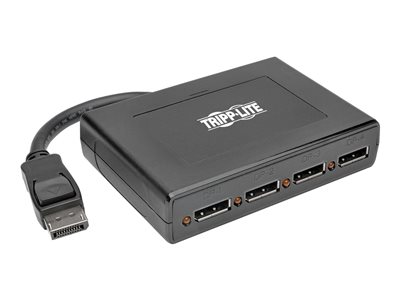

Tripp Lite 4-Port DisplayPort Multi Stream Transport MST Hub, DP 1.2 to DP, UHD 4Kx2K (B156-004-V2)
Computers with small screens and a limited number of video ports can hamper creativity and efficiency. To overcome these challenges, use the Tripp Lite 4-Port DisplayPort 1.2 Multi-Stream Transport (MST) Hub to connect up to four DisplayPort monitors to the DisplayPort output on your computer. With the B156-004-V2, you can display the same image all four monitors, extend the desktop across them or combine them into one large monitor in video wall mode. Itās a convenient way to get your message across in schools, places of worship, conference rooms, trade shows, hotels and retail outlets.Ā Typical Applications
- Display the same image on multiple DisplayPort monitors
- Display different windows on each DisplayPort monitor to enhance productivity
- Create a video wall for digital signage installations
Displays Video in 3 WaysIn mirror mode, you can display the same image on each monitor. In extended desktop mode, you can show your computerās desktop on the connected monitors with a different window open on each monitor. You can work on multiple documents at the same time, or display notes or reference data on one screen while showing a video on a different screen. Another option is creating a video wall: combine the monitors in your setup so they act as one monitor (requires computer with a DisplayPort 1.2-compatible graphics card). You can arrange the monitors vertically or horizontally.
Supports High-Definition Video The B156-004-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1920 x 1080 per monitor. In video wall mode, it supports expanded video resolutions, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration. This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, DolbyĀ® TrueHD and 7.1-channel surround sound audio.]
Quickly Connects with Built-In CableĀ You can use the B156-004-V2 with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a DisplayPort source. An external power supply is included to power the unit. LEDs indicate when the monitors are receiving a signal.
TAA-Compliant for GSA Schedule PurchasesĀ TheĀ B156-004-V2Ā is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.Ā Ā Ā Comes Backed by a Three-Year WarrantyĀ The B156-004-V2 comes with a three-year warranty. Itās manufactured in compliance with strict RoHS specifications, reflecting Tripp Liteās commitment to environmental responsibility.
Tripp Lite B156-004-V2 Product Summary
- Connects up to 4 DisplayPort monitors to a DisplayPort video source
- Displays same image on 4 monitors simultaneously in mirror mode
- Extends desktop across 4 monitors in extended mode
- Combines 4 monitors into one large monitor in video wall mode (requires computer with DisplayPort 1.2-compatible graphics card)
- Supports HD video resolutions up to 1920 x 1080 per monitor
- Supports expanded resolutions in video wall mode, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration
- Plug and playāno software or drivers required
- Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Three-year warranty
- Note:Ā Supported video resolutions and number of monitors may vary with the capabilities of your graphics card.
Overview
The B156-004-V2 4-Port DisplayPort 1.2 MST Hub connects up to four DisplayPort monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all four monitors, extend the desktop across them, or combine all four into one large monitor in video wall mode.
The B156-004-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1920 x 1080 (1080p) per monitor. In video wall mode, this hub supports expanded video resolutions, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration.
This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal.
- Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings
- Displays same image on 4 monitors simultaneously in mirror mode
- Extends desktop across 4 monitors in extended mode
- Combines 4 monitors into one large monitor in video wall mode
- Built-in 6 in. cable connects directly to DisplayPort source
- LEDs indicate when monitors are receiving a signal
- Supports HD video resolutions up to 1920 x 1080 per monitor
- Supports expanded resolutions in video wall mode, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration
- Supports HDCP, EDID and DDC
- Supports 48-bit Deep Color (16 bits per channel)
- Supports DTS-HD, Dolby True HD and 7.1-channel surround sound audio
- Backward compatible with DisplayPort 1.1 and 1.1a
- Works with all operating systems
- Plug and playāno software or drivers required
- Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
