Tripp Lite’s B020-016-17-IP NetDirector™ 16-Port Rackmount Console KVM Switch is the smart solution for controlling multiple computers and servers in IT applications. It combines a keyboard, touchpad, 17-in. color LCD and 16-port KVM switch in a 1U rack drawer for compact storage and easy access without compromising control over connected servers. Its convenient, space-saving dual-rail design allows the LCD screen to remain open and visible while the keyboard is stowed in the rack to prevent it from blocking rack enclosure doors and data center aisles. The heavy-duty enclosure, high-quality LCD, premium connectors and uncomplicated controls ensure trouble-free operation in demanding high-availability environments. The B020-016-17-IP can control sixteen servers/computers directly, or up to 256 by cascading additional KVM switches. It is compatible with both PS/2 and USB computers using Tripp Lite P774-series (PS/2) and P776-series (USB) KVM cable kits. Built-in IP access capability enables servers/computers to be controlled from any location via LAN, WAN or Internet. The B020-016-17-IP comes with a 1-year product warranty.

Key Features

B020-016-17-IP NetDirector™ 16-Port Rackmount Console KVM Switch Offers: Control an entire network with one keyboard, mouse and monitor from 1U of rack space Includes 16-port KVM switch, keyboard, touch pad, numeric keypad, 17-in. LCD and built-in IP access LCD supports video resolutions of up to 1280 x 1024, DDC2B Compatible with PS/2 and USB computers and servers Supports Windows®, Mac OS®, UNIX® and Linux operating systems

All-in-One Network Management for Critical Systems

The B020-016-17-IP offers complete network management solution. It combines a 16-port KVM switch, keyboard, touch pad, numeric keypad, 17-in. LCD and built-in IP remote access capability in a compact housing that stores neatly in a 1U rack drawer and pulls out when needed. No server-resident software is required, so server performance and reliability are never compromised. Hot pluggable functionality enables servers or computers to be added or removed with no need to power down the KVM switch or disrupt the entire system. Upgradable firmware fine-tunes compatibility with emerging standards.

Flexible Installation Options

The B020-016-17-IP can be mounted in racks with depths ranging from 26.5 to 30 inches (rackmounting hardware included). Its dual-rail configuration enables the keyboard and LCD to be stowed in the rack independently. This gives IT personnel the option to monitor computer activity while keeping the keyboard stowed out of the way in the rack—ideal for applications where continuous system monitoring is necessary yet space is limited.

Accommodates External Consoles

For additional flexibility, the B020-016-17-IP is provided with PS/2 keyboard/mouse connections and an HD15 VGA monitor connection on the back of the unit. This enables an external console to be connected if necessary.

Supports Multiple Platforms

The B020-016-17-IP supports both PS/2 and USB connections (Tripp Lite P774-series PS/2 and P776-series USB KVM cable kits required; two 6-ft. PS/2 cable kits included; USB cable kits available separately). Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated. Connect multiple versions of multiple platforms in any combination, including Windows®, Mac OS®, UNIX®, Linux and more.

Simple, Flexible Network Control

The B020-016-17-IP is designed to ease multi-server management in data centers, server rooms and other high-density environments. BIOS-level access allows network administrators to solve complex problems efficiently and restore service before downtime affects productivity. An advanced on screen display (OSD) with high-resolution VGA video up to 1280 x 1024 provides a graphical user interface with management tools including custom port labeling, auto-scanning and panel array mode. Users may also select a connected computer using on-console pushbuttons or keyboard hotkey commands. Two LEDs per KVM port indicate (1) when a computer is connected to a KVM port and powered on, and (2) when a computer is selected.

Control Multiple Servers

The B020-016-17-IP is capable of controlling up to 256 servers/computers by cascading additional KVMs (Tripp Lite model B022-U16). This gives network managers the flexibility to add capacity when it’s needed, accommodating growing data center requirements without disrupting existing equipment.

Access Servers Anywhere with Built-In IP Remote Access Capability

The B020-016-17-IP provides secure IP remote access to connected servers/computers via LAN, WAN or Internet without requiring additional rack space. IP remote access enables system administration, BIOS-level troubleshooting, GUI application installations, equipment reboots and more to be accomplished from any location using a standard Web browser or multi-platform client software. Dual bus support permits simultaneous access for one local and one remote user. The LCD incorporates a grayscale option to improve transfer speed in low bandwidth situations.

Secure Every Connection

The B020-016-17-IP offers two levels of password protection (administrator/user) to prevent unauthorized persons from gaining access to connected servers/computers. IP remote access is further protected with security features including password protection, advanced encryption, bandwidth-optimized video and detailed activity logging. A message board feature allows logged-in users to communicate with one other and manage port access.

Peace of Mind

The B020-016-17-IP comes with a 1-year warranty. For government purchasers, it is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Additional KVM Accessories (Sold Separately)

To connect servers/computers to the KVM: a total of one PS/2 (P774-series) or USB (P776-series) KVM cable kit per server/computer is required (see below). To cascade from the B020-016-17-IP: additional B022-U16 KVM switches and cable kits; consult the owner’s manual for detailed information about cascade configurations.

Technical Specifications

Tripp Lite B020-016-17-IP NetDirector™ 16-Port Rackmount Console KVM Switch

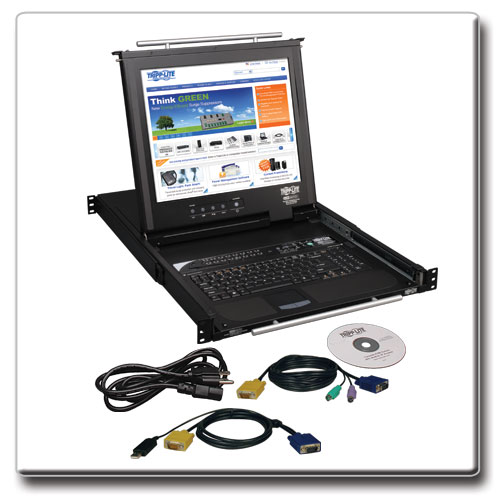

What’s in the Box

• B020-016-17-IP Rackmount Console KVM Switch
• 2 x 6-ft. PS/2 KVM Cable Kits (Tripp Lite model P774-006)
• 1 x 6-ft. C13 to 5-15P power cord
• Rackmounting Hardware
• Owner’s Manual CD & Quick Start Guide

Network Control Solutions from Tripp Lite

Tripp Lite UPS offers a wide range of products to provide reliable, cost-effective network control solutions for network data centers and other IT applications.

P774-Series PS/2 KVM Cable Kits

Connect a PS/2 server/computer to a Tripp Lite B020- or B022-series KVM switch. Combines two PS/2 keyboard/mouse cables and a monitor cable bonded into a single unit. Available in 6-, 10-, 15- and 25-ft. lengths.

P774-006 • P774-010 • P774-015 • P774-025

P776-Series USB KVM Cable Kits

Connect a USB server/computer to a Tripp Lite B020- or B022-series KVM switch. Combines a USB keyboard/mouse cable and a monitor cable bonded into a single unit. Available in 6-, 10- and 19-ft. lengths.

P776-006 • P776-010 • P776-019

The above cable kits are compatible with the following Tripp Lite KVM switches:

B020-008-17 • B020-016-17 • B020-016-17-IP

B020-U08-19-IP NetDirector™ Rackmount Console KVM Switch

Controls an entire network in just 1U of rack space. The B020-U08-19-IP combines a keyboard, touchpad, 19-in. color LCD and 8-port KVM switch in a 1U slide-out rack drawer. Compatible with PS/2 and USB servers/computers. Built-in IP capability provides network access for one local and one remote user. Simple port switching via on-screen display (OSD) or keyboard hot keys. Can directly control 8 servers/computers or up to 128 by cascading additional B022-U16 Rackmount KVM switches. The B020-016-17-IP comes with two 6-ft. USB+PS/2 combo KVM cable kits. 1-year warranty.

B020-U16-19-K NetDirector™ Rackmount Console KVM Switch

Controls an entire network in just 1U of rack space. The B020-U16-19-K combines a keyboard, touchpad, numeric keypad, 19-in. color LCD and 16-port KVM switch in a 1U slide-out rack drawer. Compatible with PS/2 and USB servers/computers. Includes two front-mounted USB ports: one for attachment of a separate USB mouse and one to connect USB peripherals (flash drive, external hard drive, etc.) that can be shared between connected servers. Simple port switching via on-screen display (OSD) or keyboard hot keys. Can directly control 16 servers/computers or up to 512 by daisy-chaining additional B022-U16 Rackmount KVM switches. The B020-U16-19-K comes with eight 6-ft. PS2+USB combo cable kits. 1-year warranty.

B022-U16 NetDirector™ Rackmount KVM Switch

Controls an entire network in just 1U of rack space. The B022-U16 can directly control 16 servers/computers from a single console. Compatible with PS/2 and USB servers/computers. Simple port switching via on-screen display (OSD) or keyboard hot keys. Multiple B022-U16 units can be daisy-chained from compatible Tripp Lite rackmount console KVM Switches to control up to 512 servers/computers. The B022-U16 comes with two USB+PS2 combo KVM cable kits and rackmounting hardware. 1-year warranty.

SR42UB SmartRack™ Enclosure

Premium 42U rack enclosure with doors and side panels. The SR42UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load capacity. The SR42UB ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.
