Tripp Lite B020-U08-19KTAA 8-Port 1U Rack Console

Overview

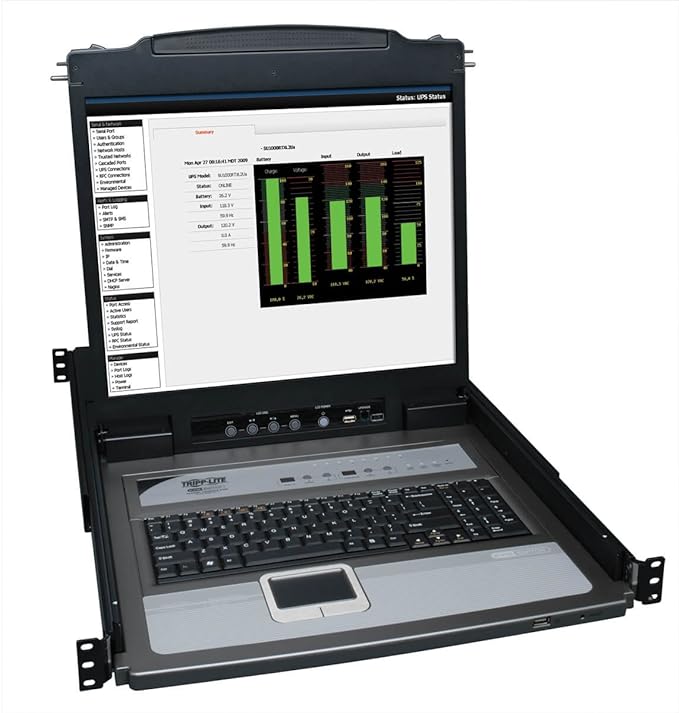

Tripp Lite’s B020-U08-19KTAA KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers.

The B020-U08-19KTAA has a built-in 19” LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.

The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external mouse, and an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19KTAA stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features
Saves Space and Money

• Combines 8-port KVM switch, 19” LCD screen, keyboard and touchpad in a 1U rack-mountable drawer
• Mounts into 19”-wide rack, 26”-38” deep
• Control up to 8 computers/servers from one easily accessible console – ideal when rack space is at a premium
• Includes eight P778-Series cables that support computers with either PS/2 or USB connections
• Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use
• Eliminates need to buy separate monitors, keyboards and mice for each computer/server

Simplifies IT Tasks

• Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
• Hot pluggable; add or remove computers without having to power down the switch
• Auto-scan mode automatically sequences through all active ports that are accessible to the user

Large 19” LCD

• Extra-wide display makes multitasking easier
• Supports video resolutions up to 1280 x 1024
• DDC emulation allows optimal output to LCD

Multi-Level Password Security

• Enhances security by limiting access to an administrator and up to 4 local users
• Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

• A console cable kit is included for connecting the external console port to a keyboard, mouse or monitor, or a Tripp Lite B051-000 IP Remote Access Unit
• An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral with all the connected servers
• Compatible with all major operating systems for easy integration into your existing structure
• Firmware is upgradable with included cable and utility
• Heavy-duty steel housing stands up to frequent use

TAA Compliant

• Complies with the Federal Trade Agreement Act (TAA) for GSA Schedule purchases

System Requirements

• Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports
• P778-006 USB/PS2 combo KVM cable kit is required for each connected computer/server
• Compatible with all major operating systems
• Power consumption: 120V, 60Hz, 28.5W; 230V, 50Hz, 29.1W

Package Includes

• B020-U08-19KTAA 1U rackmount console KVM switch with 19” LCD
• (x8) P778-006 6 ft. USB/PS2 combo KVM cable kits
• USB/PS2 combo console cable kit
• RJ11 to DB9 firmware upgrade cable
• C13 to 5-15P power cord
• Grounding wire
• Rackmount hardware
• CD with owner’s manual
• Quick start guide
