Tripp Lite BCPRO600 600VA Standby UPS Tower Battery Backup


Interface Types:Ā IEC 5-15P

Bays/Ports/Slots:Ā 6

U Height:Ā 2U

Wattage/VA:Ā 1000W

Voltage:Ā 110-120V

1,299.00 د.إ

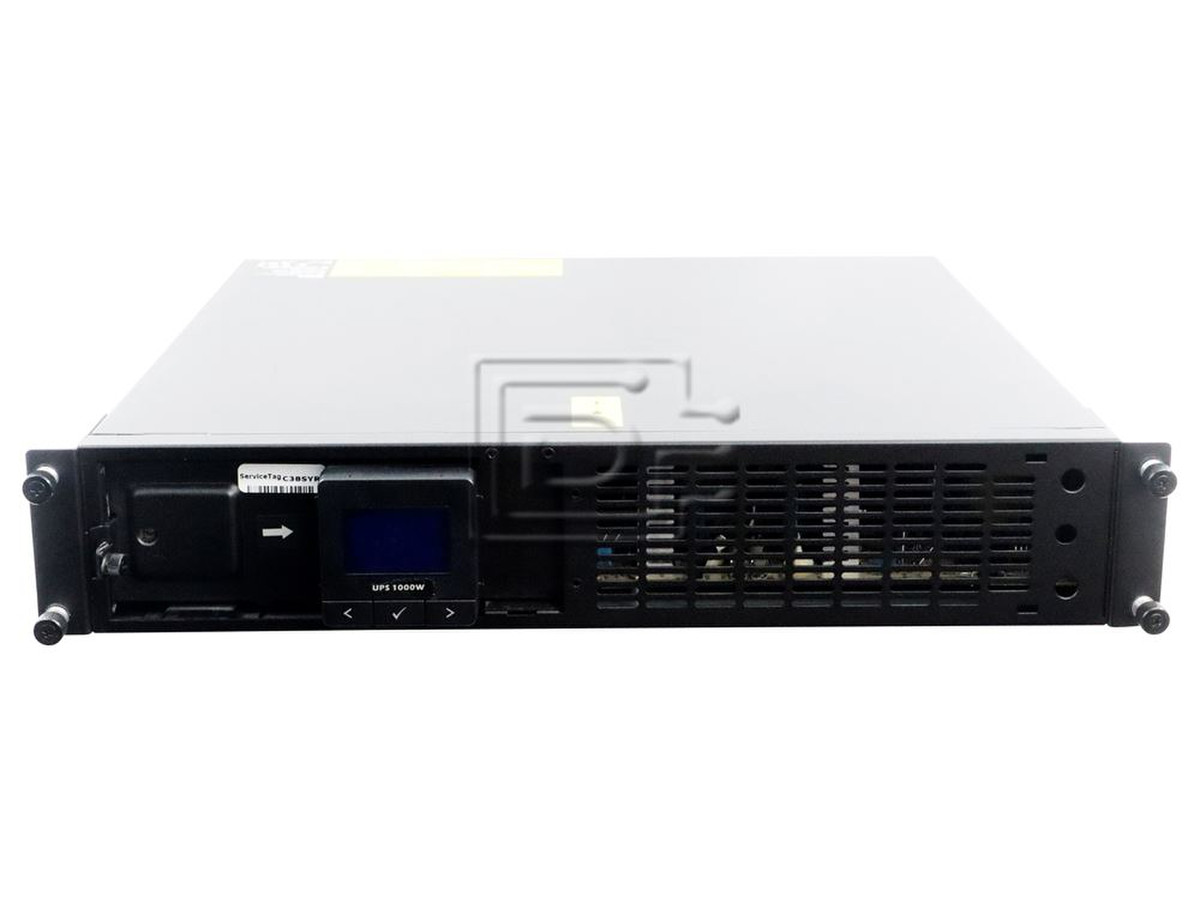

Dell 1000R 225-2392 / 0WCJKH / WCJKH / H919N 1000W 120/100V 2U Rack Standby UPS Battery Backup – Open Box

Dell Line-Interactive 1000R 225-2392 / 0WCJKH / H919N / 0H919N 1000W 120/100V 2U Rack Standby UPS / Uninterruptible Power Supply Battery Backup with (4) 5-15R, 15A; (2) IEC 320-C13, 15/10A – Open Box

System Features

Providing outstanding performance and reliability, the UPS’s unique benefits include:

  • Buck and Boost voltage regulation that ensures regulated voltage to your load by correcting voltage fluctuations.
  • Start-on-battery capability for powering up the UPS even if utility power is not available.
  • Extended runtime with an optional External Battery Module (EBM) for 1500–2700W UPS models.
  • Emergency shutdown control through the Remote Emergency Power-off (REPO) ports.
  • Two standard communication ports (USB and DB-9 serial port).
  • Optional Dell Network Management Card with enhanced communication capabilities for increased power protection and control.
  • Advanced power management with the Dell UPS Management Software for graceful shutdowns and power monitoring.
  • Sequential shutdown and load management through separate receptacle groups called load segments.
  • Firmware that is easily upgradable without a service call.
  • Backed by worldwide agency approvals.
SKU: 225-2392 Category:
Dell UPS BATTERY BACKUP
Model Number 1000R
OVERVIEW
UPS Type Standby
Wattage 100W
Voltage 120/100V
Dimensions 438 x 84.5 x 483 mm 2U
Weight 19kg (41.8 lb)
Input
Nominal Voltage 100/120V
Voltage Range 84-150V
Nominal Frequency 50/60 Hz
Efficiency >95%
Noise Filtering Full-time EMI/RFI filtering
Connections IEC 320-C14 Input connector, 15A
Output
Power Levels 1000W
Regulation (Normal Mode) 92-108V
Regulation (Battery Mode) 92-108V
Voltage Waveform Sine Wave
Output Receptacles (4) 5-15R, 15A;
(2) IEC 320-C13, 15/10A
Environmental and Safety
Operating Temperature Up to 1,500 meters: 0°C to 40°C (32°F to 104°F)
Above 1,500 meters: 0°C to 35°C (32°F to 95°F)
Transit/Storage Temperature -15°C to 60°C (5°F to 140°F)
Relative Humidity 0–95% noncondensing
Audible Noise Normal mode: less than 40 dBA typical Battery mode: less than 50 dBA typical
Battery
Configuration (3) 12V, 9Ah internal batteries
Voltage 36 Vdc internal
Fuses (2) 30A fuses
Charging Approximately 4 hours to 90% usable capacity at nominal line and noĀ supplementary power supply load
