Tripp Lite by Eaton 10kW 200-240V 3PH Switched PDU LX Interface Gigabit 30 Outlets L15-30P Input LCD 3 m Cord 0U TAA

Add to Wishlist

Quick tech specs

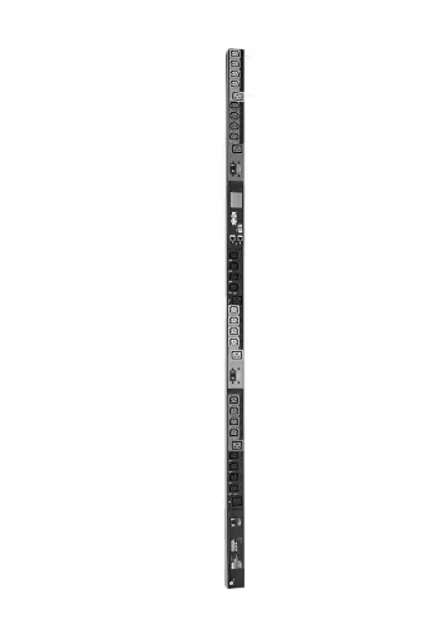

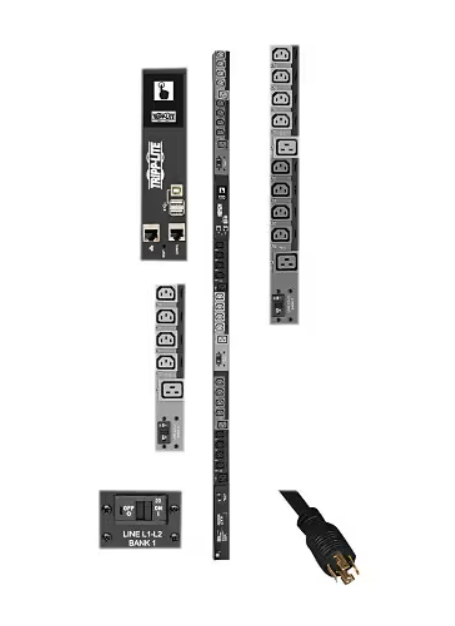

  • 10kW 200/208/240V three phase switched 1.8-meter 0U PDU
  • 30 individually controllable outlet with included plug-lock insert sleeves
  • Touchscreen LCD with mobile access option via QR code
  • Tripp Lite is now a part of the Eaton family
  • NEMA L15-30P PDU input with 10 ft. AC power cord
  • Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
  • Rack-mount PDU/ Power Distribution Unit/ Switched PDU/ rack pdu/ pdus/ data center pdu/ network pdu

AED13,199.00

Add to Wishlist

Know your gear

The PDU3EVSR10L1530 10kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

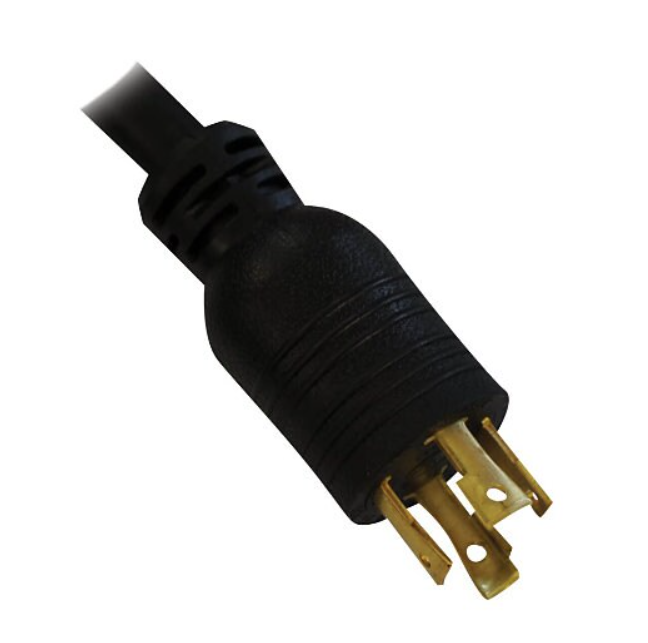

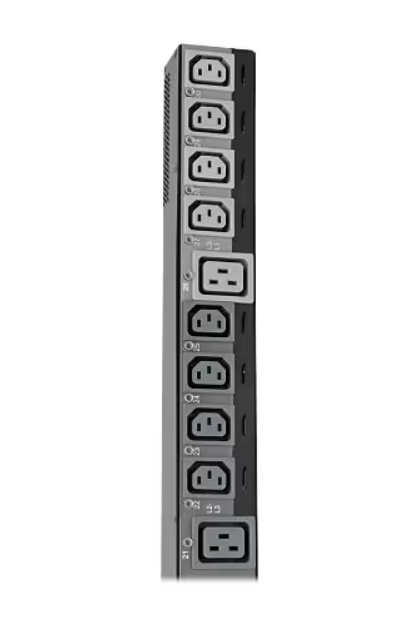

The 0U PDU features 30 switched outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L15-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.
 Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

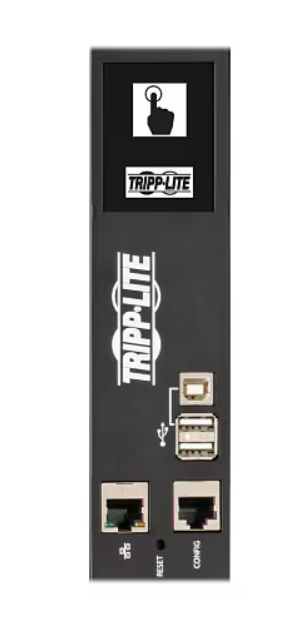

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
SKU: PDU3EVSR10L1530 Category: Tag:
Category Attribute Value
Overview Brand Tripp Lite
Product Line Tripp Lite
Model 10kW 3-Phase Switched PDU, LX Interface, 200/208/240V Outlets (24 C13/6 C19), LCD, NEMA L15-30P, 10 ft Cord
Manufacturer Tripp Lite
Network & Communication Remote Management HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, Serial, USB
Connectivity Input Connectors 1
Interface Provided 1 x management (Fast Ethernet) – RJ-45, 1 x serial – RJ-45, 1 x USB Type B, 2 x USB Type A
Power Emergency Power Off Amp meter, Current meter, Email alerts support, Firmware upgradable, LCD display
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA L15-30
Input Wiring 3-phase
Max Input Current 24 ampere
Output Connector Quantity 30
Output Connector Type Power IEC 60320 C13, Power IEC 60320 C19
Power Output Connectors Details 24 x power IEC 60320 C13, 6 x power IEC 60320 C19
Power Provided 10 kilograms per millimetre (Note: Unit may be incorrect—likely a mislabeling of wattage or kVA)
Provided Voltage AC 200/208/240 volt
Required Voltage AC 200/208/240 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 122 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 5 – 95% (non-condensing)

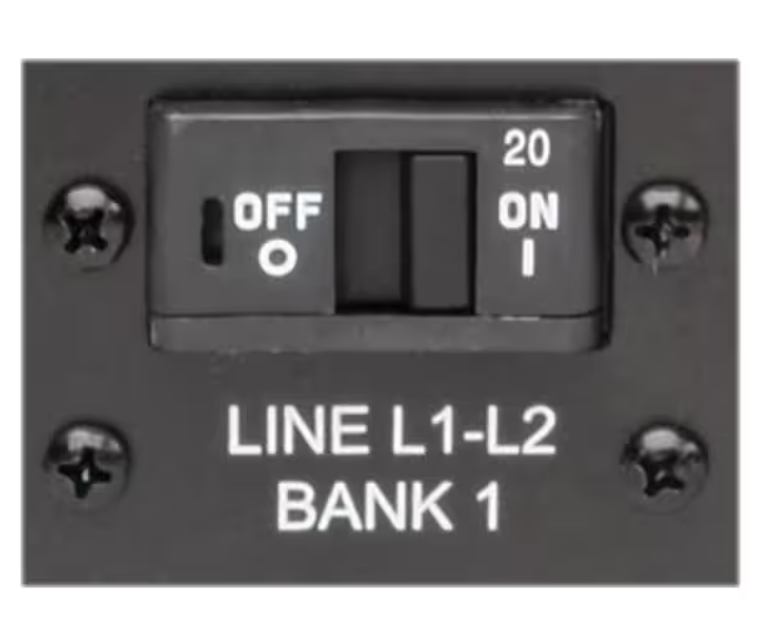

Protection Type Circuit breaker
Product Information Cord Length 10 ft
Features Vertical orientation
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items Cables Power cable – external – 10 ft
Included Accessories 30 plug-lock insert sleeves
Dimensions & Weight Height 70 inch
Height (Rack Units) 0U
Weight 20 lbs
Width 2.2 inch
Depth 2.9 inch
Physical Characteristics Color Category Black, Gray
