Tripp Lite Industrial Gigabit Ethernet Switch Unmanaged 5-Port – 10/100/1000 Mbps – TAA Compliant


Quick tech specs

  • TAA Compliant Industrial-grade switch expands Gigabit Ethernet connectivity to environments with space constraints/wide temperature ranges
  • EIP QoS control mechanism widely used for Ethernet/IP data stream

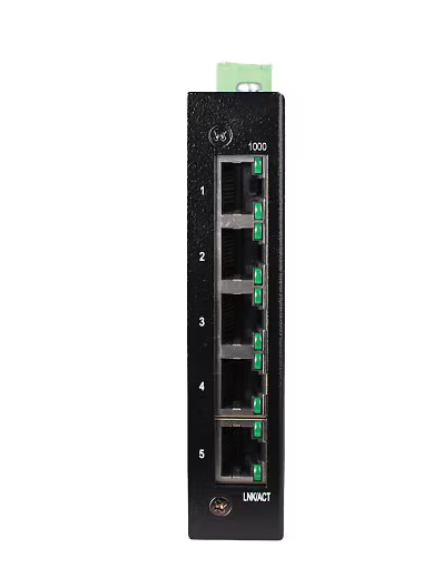

  • LEDs indicate connection/activity status for all Ethernet ports
  • 5 auto-negotiable 10/100/1000 Mbps RJ45 ports connect devices over a LAN
  • Industrial-grade switch supports operating temperature range of -40 C to 75 C
  • Tripp Lite is now part of Eaton

AED1,199.00

Know your gear

5-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN

This space-saving switch with EIP QoS transmits data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Ethernet/IP Quality of Service (EIP QoS)

The EIP QoS control mechanism is widely used for Ethernet/IP data streams. Based on the application requirements, this feature helps provide different priorities for different users or data streams. This helps ensure that the performance of data streams deliver at a certain level.

Note

: While NGI-U05E does support QoS, the feature is handled automatically by our product. If you want to control network traffic flow or prioritize specific ports to your personal preference, you must use a router in your network with a QoS tool to achieve this level of control.

Ruggedized Metal Housing Built to Last in Harsh Environments

The compact NGI-U05E adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).

Unmanaged Switch Requires Little to No Configuration

Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05E supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

Works with the Most Popular Web Browsers

The NGI-U05E is browser-based and works independently from the connected computer’s operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-U05E accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

Flexible Mounting Options

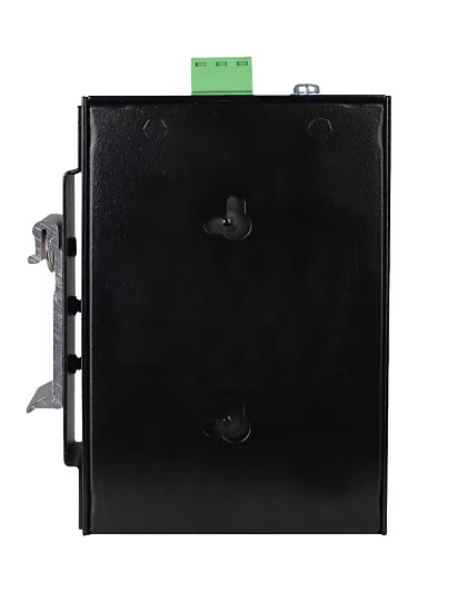

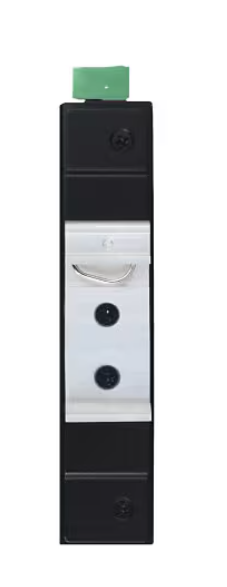

The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted vertically or horizontally using the rear mounting holes. A 3-pin 12–48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.

TAA-Compliant for GSA Schedule Purchases

The NGI-U05E is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

SKU: NGI-U05E Category: Tag:
Category Attribute Value
Overview Brand Tripp Lite
Product Line Tripp Lite
Model 5-Port Unmanaged Industrial Gigabit Ethernet Switch – 10/100/1000 Mbps, Ruggedized, -40° to 75°C, EIP QoS, DIN/Wall Mount
Manufacturer Tripp Lite
Network & Communication Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Features Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Flow control, MAC address auto-learning, Metal housing, Quality of Service (QoS), Rugged
Form Factor (Hubs & Switches) DIN rail mountable, Wall-mountable
Jumbo Frame Support 9000 bytes
MAC Address Table Size 2000 entries
Manageable No
Ports 5
Product Type Switch
Status Indicators LAN, Power, Receive, Transmit
Subcategory Network hubs and switches
Connectivity Interface Provided 5 x 10/100/1000 Base-T RJ-45
Port Quantity 5
Port Type 10/100/1000
Power Power Consumption Operational 3 watt
Required Voltage DC 12 – 48 volt
Technical Information Max Operating Temperature 167 degree Fahrenheit
Max Storage Temperature 185 degree Fahrenheit
Min Operating Temperature -40 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Product Information Packaged Quantity 1
Performance Switching capacity: 1 Gbps
Included Items Included Accessories DIN-rail clip, Wall mount brackets
Dimensions & Weight Height 4.3 inch
Weight 6.7 ounce
Width 0.9 inch
Depth 2.9 inch
Physical Characteristics Color Black
Color Category Black
Certifications & Listings Compliant Standards FCC (USA), IEEE 802.3, IEEE 802.3u, IEEE 802.3x, REACH, RoHS
TAA Compliant Yes
