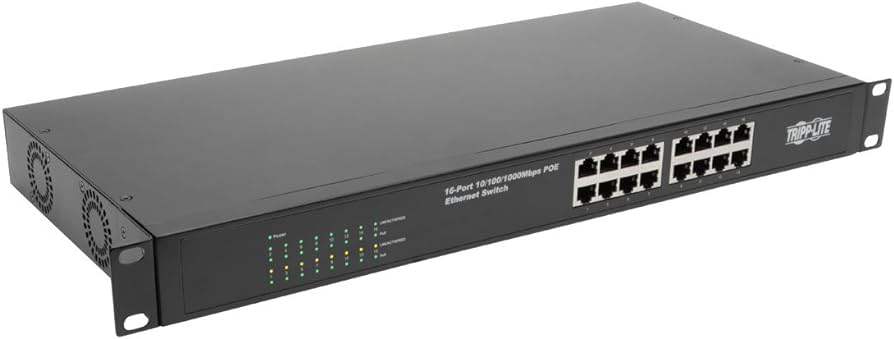

Tripp Lite NG16POE 16-Port Unmanaged Ethernet Switch With PoE+

Tripp Lite Unmanaged NG16POE 16-Port 10/100/1000 Mbps Gigabit Ethernet Rack-Mount / Desktop Switch w/ PoE+ – Brand New

Tripp Lite Unmanaged NG16POE 16-Port 10/100/1000 Mbps Gigabit Ethernet Rack-Mount / Desktop Switch with PoE+ / Power Over Ethernet Plus in Metal Casing – Brand New

16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch with PoE+, 230W, Metal Housing
Ethernet switch provides Gigabit network connection for multiple devices. Recommended for small offices, workgroups, creative workspaces and security applications using IP cameras and other PoE-compatible devices.

• 16 auto-negotiable 10/100/1000 Mbps PoE+ RJ45 ports
• Up to 30W PoE+ per port; 230W total PoE budget
• Supports auto MDI/MDIX cross-over function
• 2 Gbps switching capacity per port with full duplex
• Plug-and-play with no configuration required

Overview
The NG16POE 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds a Gigabit Ethernet connection with PoE+ capacity to your small office, workgroup or creative workspace.

Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this Ethernet switch provides PoE+ compatibility with wireless access points and other devices with up to 30W per port and a PoE budget of 230W. Sharing large bandwidth-intensive files, such as CAD drawings and high-definition videos, at Gigabit speeds improves efficiency and cuts costly downtime. IEEE 802.3x flow control allows smooth transmission.

This unmanaged switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection. It’s plug-and-play with no configuration required and can be up and running immediately. Easy-to-read LEDs indicate power, connection, activity and PoE status for each port.

The detachable six-foot power cord with NEMA 5-15P plug connects to any compatible AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.

Features

Unmanaged Network Switch for Home/Small Offices, Workgroups and Security Applications

• 16 twisted-pair RJ45 Gigabit Ethernet ports with PoE+ capability
• Auto-negotiable 10/100/1000 Mbps
• Automatic MDI/MDIX cross-over detection
• 32 Gbps switching capacity (2 Gbps per port with full duplex)
• LEDs indicate power, connection, activity and PoE status per port
• Supports 9k jumbo frames, MAC address auto-learning and auto-aging, and 802.3x flow control (full duplex) and back pressure (half duplex)

230W Total PoE+ Budget

• Up to 30W PoE per port
• Each port supplies PoE+ power to connected devices via network cable

Heavy-Duty metal Housing

• Detachable 6 ft. AC power cord with NEMA 5-15P plug
• Plug-and-play—no configuration necessary

Versatile Installation Options

• Includes rubber feet for secure placement on flat desktop surface
• Mounts in 1U of EIA-standard 19 in. rack with included brackets
• Grounding lug included

Highlights

• 16 auto-negotiable 10/100/1000 Mbps PoE+ RJ45 ports
• Up to 30W PoE+ per port; 230W total PoE budget
• Supports auto MDI/MDIX crossover function
• 2 Gbps switching capacity per port with full duplex
• Plug-and-play with no configuration required

Package Includes

• NG16POE 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch
• Detachable AC power cord with NEMA 5-15P plug, 6 ft.
• (2) Rack-mounting brackets
• (8) Screws
• (4) Rubber feet
• Owner’s manual

Compatibility:

This Unmanaged Network Switch is designed for Home/Small Offices, Workgroups and Security Applications
