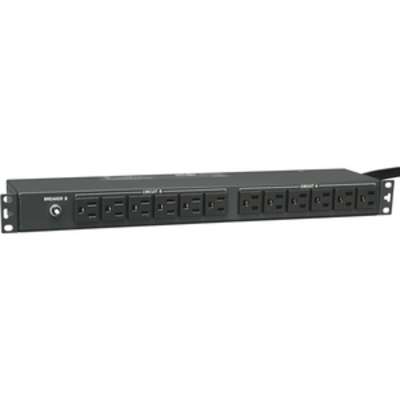

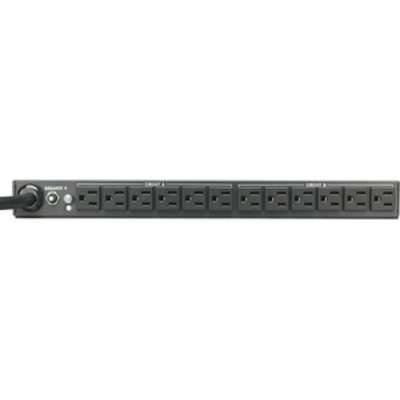

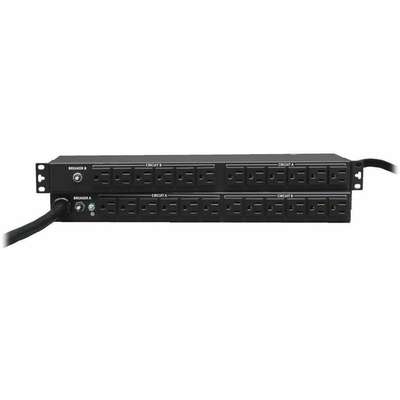

Tripp Lite PDU Single Phase Basic Horizontal 120V 2.9kw 24 5-15R 30A


  • Basic single phase 30A 120V PDU
  • 1U horizontal rackmount installation
  • NEMA L5-30P input; 15 ft. / 4.5m line cord
  • 24 5-15R outlets (12 front / 12 rear)

AED1,599.00

The PDU2430 2.9kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU2430 features 24 total NEMA 5-15R outlets with 12 in front and 12 in the rear. The NEMA L5-30P input plug with long 15-foot(4.5 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 15A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite’s PDUSIDEBRKT accessory(sold separately), you can adapt the PDU2430 for vertical 0U rack-mounting.

SKU: PDU2430 Category: Tag:
Category Attribute Details
General Information Product Name Tripp Lite PDU Single Phase Basic Horizontal 120V 2.9kW 24 5-15R 30A OPEN BOX
Product Model PDU2430
Product Type PDU
Technical Information PDU Type Basic
Plug / Connector Type NEMA L5-30P
Plug / Connector Detail 1 x NEMA L5-30P
Receptacle Type NEMA 5-15R
Receptacle Detail 24 x NEMA 5-15R
Power Description Input Voltage 120 V AC
Output Voltage 120 V AC
Physical Characteristics Mount Type Rack-mountable
Rack Height 1U
Miscellaneous Country of Origin China
Other Information Number of Cord / Cable 1
Certifications & Standards cUL, UR
