Tripp Lite SMX1200XLHG 230V 1000VA Line-Interactive UPS Tower Battery Backup

Add to Wishlist

Interface Types:Ā IEC 5-15P

Bays/Ports/Slots:Ā 6

U Height:Ā 2U

Wattage/VA:Ā 750W

Voltage:Ā 220-240V

3,499.00 د.إ

Add to Wishlist

DescriptionĀ

Tripp Liteā€™s SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load, or 11 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.

Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX1200XLHGā€™s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.

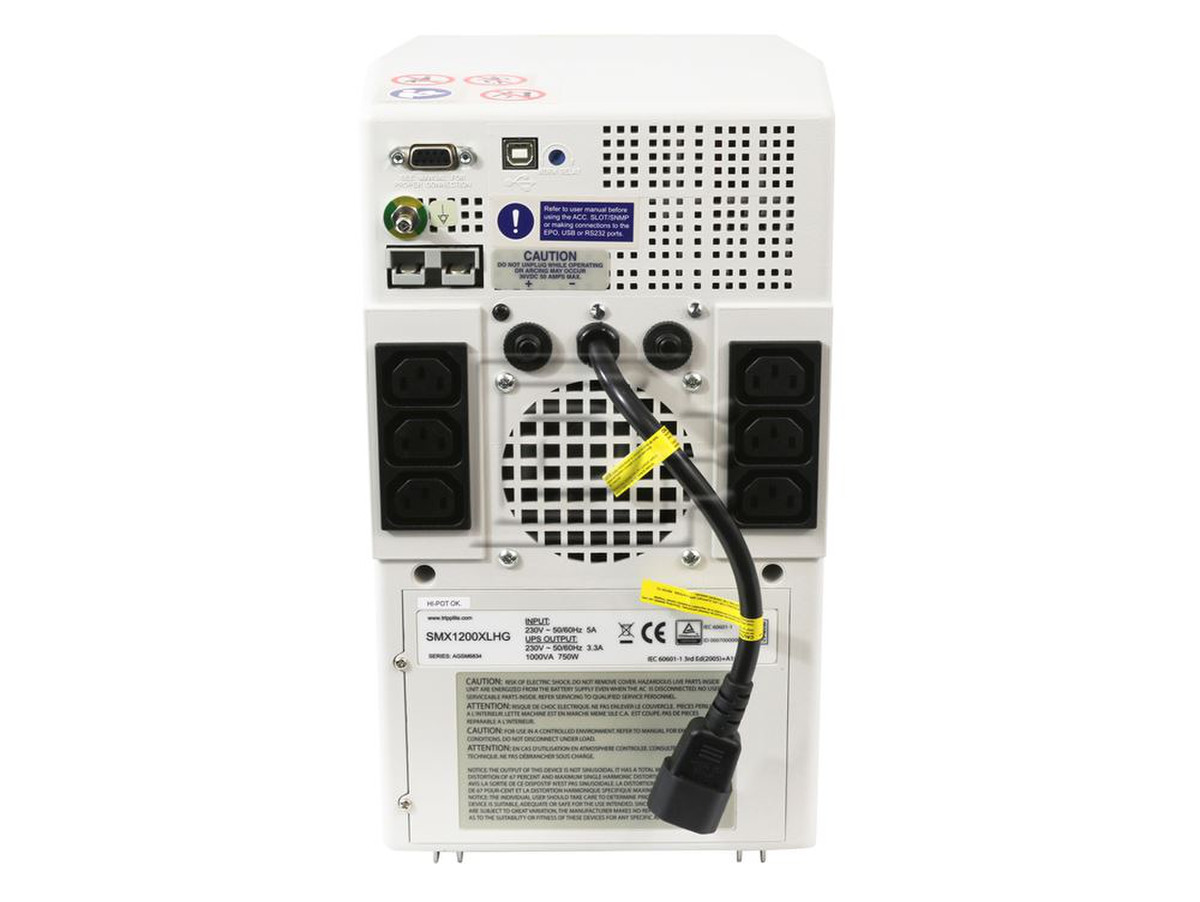

This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15 cm (6 in.) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.

The SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Liteā€™s included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.

Application UsageĀ

This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty.

Provides Ideal UPS Backup in Healthcare Facilities



  • Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospitalgrade outlet
  • Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise

Battery Backup and Full Surge Protection





  • 27.5 minutes runtime for half load (375W); 11 minutes for full load (750W)
  • Ā All six hospital-grade outlets provide surge protection rated to 340 joules
  • EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference
  • Resistant to electrostatic discharge

LEDs and Audible Alarms Keep You Aware of Power Status

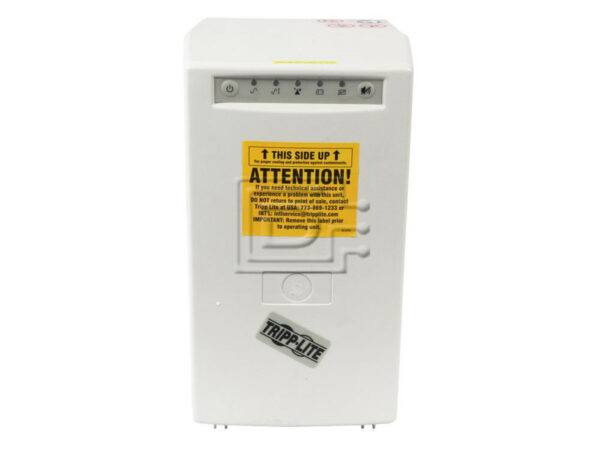

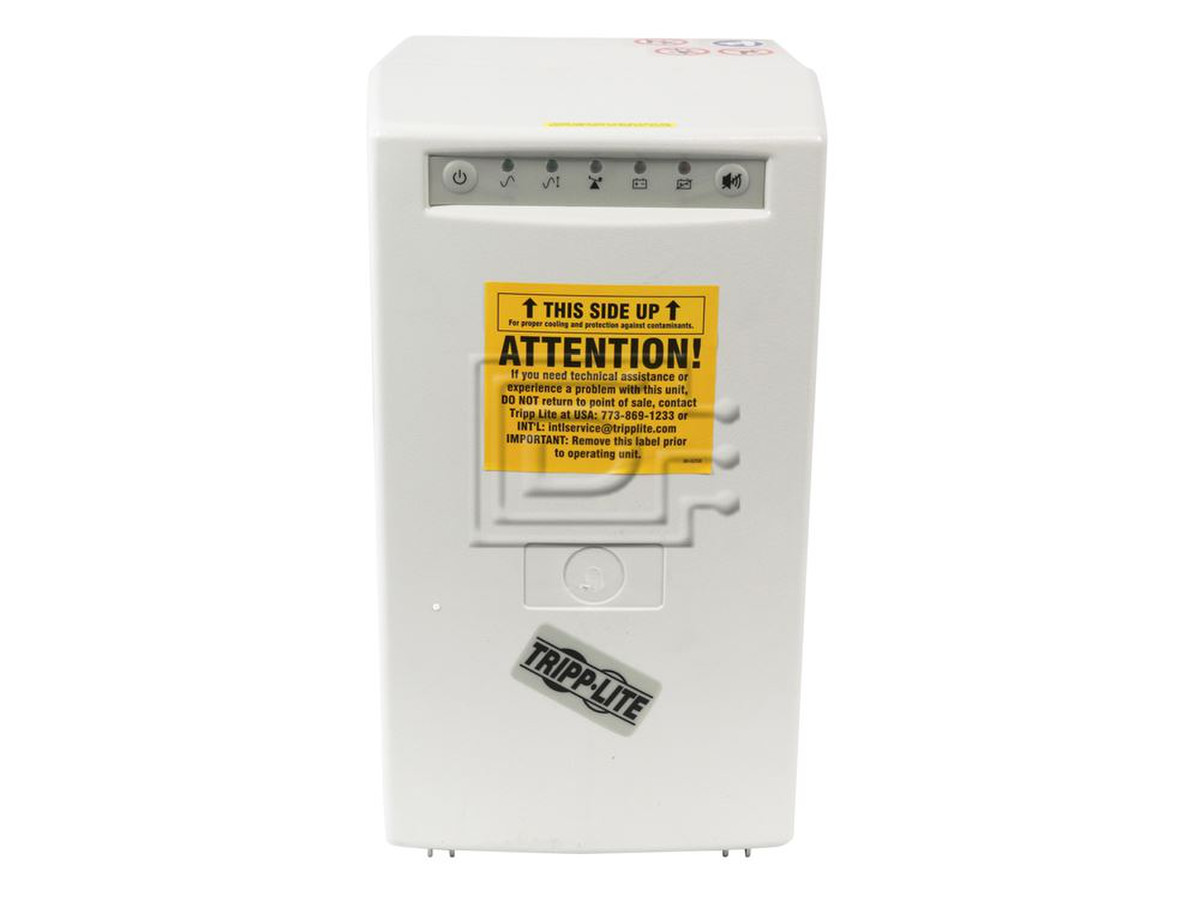

  • Indicator lights on the front of the unit show you when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load level and low-battery warning
  • Audible alarms alert you to power failure, overload and low battery conditions; the alarmā€™s mute/quiet mode ensures patients are not disturbed
SKU: SMX1200XLHG Category:
TRIPP LITE UPS BATTERY BACKUP
Model Number SMX1200XLHG
OVERVIEW
UPS Type Line-Interactive
OUTPUT
Output Volt Amp Capacity (VA) 1000
Output Watt Capacity (Watts) 750
Nominal Voltage Details 230v nominal inverter output voltage
Frequency Compatibility 50 / 60 Hz
Frequency Compatibility Details Automatic frequency selection
Output Voltage Regulation (Line Mode) 120V (+8% / -18%)
Output Voltage Regulation (Battery Mode) PMW sine wave
UPS Output Receptacles (Surge Suppression Only) (6) C13
Nominal Output Voltage(s) Supported – 220V
– 230V
– 240V
Output Receptacles (6) C13
Individually Controllable Load Banks No
INPUT
Rated input current (Maximum Load) 5A
Nominal Input Voltage(s) Supported 230 AC
UPS Input Connection Type C14 inlet
Voltage Compatibility (VAC) 230
UPS Input Cord Length 0.50 ft / 0.20 meter
Recommended Electrical Service 10A 230V
Input Phase Single-Phase
BATTERY
Battery Type Valve Regulated Lead Acid (VRLA)
DC System Voltage (VDC) 36
Battery Recharge Rate (Included Batteries) Less than 4.5 hours from 10% tp 90%
Internal UPS Replacement Battery Cartridge RBC36SLT
Battery Access Battery access door allows hot swap battery replacement without powering connected equipment off
Typical Battery Lifespan 3-6 years, depending on usage
Expandable Runtime Yes
Half Load Runtime (min.) 27.5 minutes (375w)
Full Load Runtime (min.) 11 minutes (750w)
VOLTAGE REGULATION
Voltage Regulation Description Line interactive UPS offers 2 boost levels of brownout correction and a single level of overvoltage adjustment to maintain usable, computer grade output without consuming battery power over an input voltage range of 155 toĀ 274V AC
Overvoltage Correction

A feature found in line conditioners and select UPS systems that maintains mains-level power to equipment when prolonged line voltages are higher than normal

 Input voltages between 245 and 274V ACĀ are reduced by 9%
Undervoltage Correction

A feature found in line conditioners and select UPS systems that maintains main-level power to equipment when prolonged line voltages are lower than normal

 Input voltages between 183 and 199 are boosted by 10%
Severe Undervoltage Correction

A feature found in line conditioners and select UPS systems that maintains main-level power to equipment when prolonged line voltages are lower than normal

 Input voltages between 156 and 182 are boosted by 21%
USER INTERFACE, ALERTS & CONTROLS
Switches Yes, includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions
Audible Alarm Audible Alarm Audible Alarm is factory muted for silent operation; Audible alarm can be restored to indicate power failure, overload conditions and Low Battery events using our Free Power Alert UPS management software.
LED Indicators 5 LEDs indicate

  • Line power availability
  • Battery power mode
  • Overload
  • Voltage Regulation
  • Battery Low / replace status
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 340
UPS AC Suppression Response Time Instantaneous
UPS Dataline Suppression N/A
EMI / RFI AC Noise Suppression

Technology found in select UPS systems that protects against EMI (electromagnetic interference) and RFI (radio frequency interference) line noise and protects equipment against associated incremental hardware damage, data corruption and audio/video transmission problems.

 Yes
PHYSICAL
Installation Form Factors Supported with Included Accessories Tower
Primary Form Factor Tower
Primary UPS Depth (mm) 231
Primary UPS Height (mm) 323
Primary UPS Width (mm) 191
Shipping Dimensions (hwd / in.) 18.50 x 12.20 x 13.38
UPS Housing Material PVC
UPS Power Module Dimensions (hwd, in.) 12.7 x 7.5 x 9.1
UPS Power Module Weight (kg) 20.64
UPS Power Module Weight (lbs.) 45.50
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
Relative Humidity Up to 95%, non-condensing
AC Mode BTU / Hr. (Full Load)

The amount of heat a UPS generates when operating under a full load on mains (AC) power. Measured in British Thermal Units (BTU).

 252.2
COMMUNICATIONS
Communications Interface USB ; DB9 Serial
LINE / BATTERY TRANSFER
Transfer Time

The time it takes for a UPS to switch from AC on-line mode to DC battery-powered mode. Measured in milliseconds (ms)

 2-4 milliseconds
Low Voltage Transfer to Battery Power (Setpoint) 155
High Voltage Transfer to Battery Power (Setpoint) 274
SPECIAL FEATURES
Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
High Availability UPS Features Surge/noise protection
Grounding Lug Ground Potential Equalization Connector: POAG-S6/20
CERTIFICATIONS
UPS Certifications CE; Tested to UL60601-1 (medical grade)
WARRANTY
Product Warranty Period (U.S. & Canada) 2-year limited warranty
