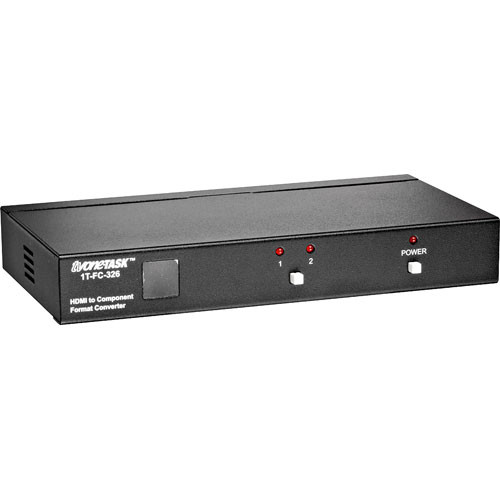

TV One 1T-FC-326 HDMI-YPbPr Format Converter

Add to Wishlist
Key Features
  • HDMI Signal Conversion
  • Audio Support
  • SDTV & HDTV Compatible
  • HDCP 1.1 Compliant
  • Multiple Control Options

1,499.00 د.إ

Add to Wishlist

Convert HDMI signals into analog video and audio signals with the 1T-FC-326 HDMI-YPbPr Format Converter from TV One. Compact and easy to use, it features two HDMI inputs and converts either input signal to an analog YPbPr or YUV output. Audio output on this device includes coaxial digital and analog stereo (R/L) that has been de-embedded from the HDMI digital signal stream. It supports all SDTV and HDTV resolutions and is HDCP compliant.

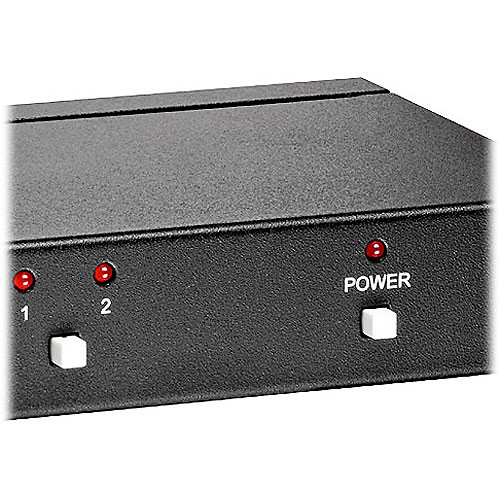

The unit can be controlled via its front-panel pushbuttons or IR remote control. LED lights on the front panel also provide visual indication of line status. It will accommodate cables with standard or locking type connectors. A locking DC connector is a standard feature for increased security.

HDMI Signal Conversion
Use this device to convert either of (2) HDMI inputs to an analog YPbPr or YUV output.
Audio
Audio output on this device includes coaxial digital and analog stereo (R/L) that has been de-embedded from the HDMI digital signal stream.
SDTV & HDTV
It supports all SDTV and HDTV resolutions.
HDCP
This device is HDCP compliant.
Small Footprint
This device’s small size and optional rackmount kit makes it easy to use in either a desktop or rackmount configuration.
SKU: 1T-FC-326 Category: Tag:

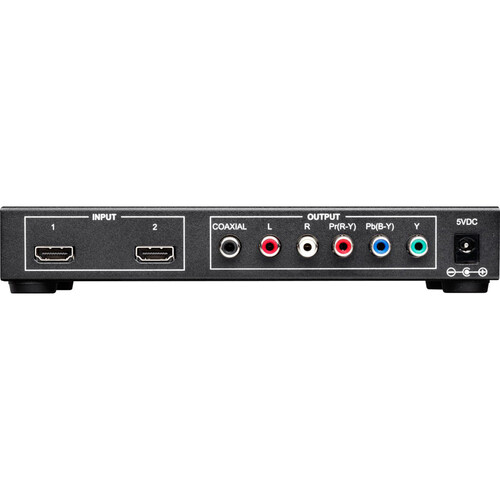

Inputs / Outputs
Video Inputs
2x HDMI (2.0a) Female
Audio Inputs
No
Video Outputs
1x 3RCA (Component) Female
Audio Outputs
1x 2RCA Analog Female
1x RCA S/PDIF Female
Expansion Slots
No
Format Support
Output Audio Format
Analog
S/PDIF
Embedded Audio
HDMI
Standards
HDCP Support
Yes, Version 1.1
HDR Support
Not Specified by Manufacturer
Power
Power I/O
1x Barrel (5 VDC at 2 A) Input
General
Dimensions
7.9 x 3.5 x 1.2″ / 200 x 90 x 30 mm
Weight
1.1 lb / 500 g
Packaging Info
Package Weight
2.05 lb
Box Dimensions (LxWxH)
11 x 7.25 x 3″
