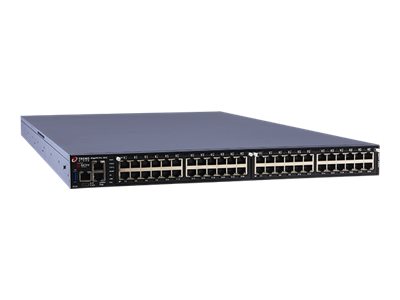

TXOne EdgeIPS Pro 1048 – security appliance


TXOne EdgeIPS Pro 1048 – Security appliance – GigE – rack-mountable

AED102,899.00

The EdgeIPS Pro comes equipped with a standard 1U rack-mount with 48 ports (24 segments) or a 2U rack-mount with 96 ports (48 segments) for large-scale production lines. The swappable extendable module card provides the flexibility to support different network segmentation requirements, set up for smooth maintenance. EdgeIPS Pro can be switched between “Monitor” and “Prevention” modes based on business intention for the best in-line protection or non-disruptive security awareness.

SKU: TENN0043 Category: Tag:
Category Details
General
Device Type Security appliance
Width 17.2 in
Depth 29.5 in
Height 1.7 in
Weight 34.83 lbs
Networking
Form Factor Rack-mountable
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol Modbus
Performance
IPS throughput 10 Gbps
Latency < 200 µs
IPS throughput (1518-byte UDP) 20 Gbps
Capacity
Concurrent TCP connections 2000000
ICS protocol filter profiles 256
Policy enforcement rules 50000
Features Manageable, Intrusion Prevention System (IPS), built-in hardware bypass, CIP support, FINS support, S7Comm+ support
Expansion / Connectivity
Interfaces 48 x 1000Base-T – RJ-45 ¦ 1 x USB – Type A ¦ 1 x USB – Type C ¦ 2 x 10GBase-T (management) – RJ-45 ¦ 1 x 1000Base-T (HA) – RJ-45
Miscellaneous
MTBF 50,000 hours
Compliant Standards UL, VCCI, FCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, China RoHS
Power
Power Device Internal power supply – hot-plug
Installed Qty 2
Max Supported Qty 2
Power Redundancy Yes
Voltage Required AC 120/230 V
Power Provided 800 Watt
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
