Wireless Access Points AP
U6-LR
Enterprise-grade WiFi 6 access point with 4X4 MIMO and OFDMA functionality.
AED1,199.00
U6-LR Overview
Enterprise-grade WiFi 6 access point with 4X4 MIMO and OFDMA functionality.
Quick Specs

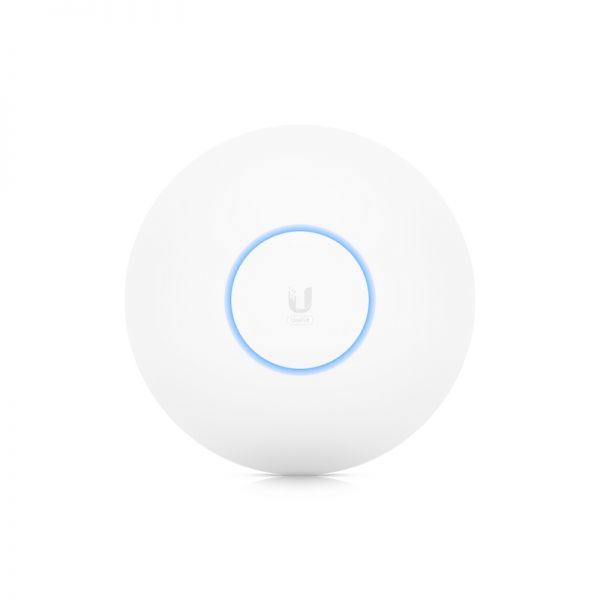

Figure 1 shows the appearance of U6-LR.
Table 1 shows the Quick Specs.
| Product Code | U6-LR |
| Dimensions | Ø220 x 48 mm (Ø8.66 x 1.89″) |
| Power method | 802.3at PoE+, passive PoE (48V) |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (not included) |
| Supported voltage range | 44 to 57VDC |
| Max. power consumption | 16.5W |
Product Details
Figure 2 shows the front panel of U6-LR.
Figure 3 shows the back panel of U6-LR.
U6-LR provides these features:
- High-efficiency 4×4 WiFi 6 (802.11ax)
- 5 GHz band (4×4 MU-MIMO and OFDMA) with 2.4 Gbps throughput rate
- 4 GHz band (4×4 MIMO) with 600 Mbps throughput rate
- Powered by 802.3at PoE (PoE injector sold separately)
- IP54-rated water and dust protection for indoor/outdoor mounting versatility
Compare to Similar Items
Table 2 shows the comparison of U6-LR.
| Module | U6-LR | UAP-AC-M-PRO |
| Dimensions | Ø220 x 48 mm (Ø8.66 x 1.89″) | 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37″) |
| Power method | 802.3at PoE+, passive PoE (48V) | 802.3af PoE |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (not included) |
PoE Injector 48VDC -0.5A Gigabit |
| Max. power consumption | 16.5W | 9W |
U6-LR Specification
U6-LR Specification |
|||||
| Mechanical | |||||
| Dimensions | Ø220 x 48 mm (Ø8.66 x 1.89″) | ||||
| Enclosure material | Plastic | ||||
| Mount material | SGCC Steel | ||||
| Weatherproofing | IP54 | ||||
| Hardware | |||||
| Management interfaces | Ethernet Bluetooth |
||||
| Networking interface | (1) GbE RJ45 port | ||||
| Button | Factory reset | ||||
| LED* | White/Blue
*Due to chip supply shortages, the U6 LR’s LED has been limited to only white and blue color modes. |
||||
| Power method | 802.3at PoE+, passive PoE (48V) | ||||
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (not included) |
||||
| Supported voltage range | 44 to 57VDC | ||||
| Max. power consumption | 16.5W | ||||
| Max. TX power |
|
||||
| MIMO |
|
||||
| Throughput rate |
|
||||
| Antenna gain |
|
||||
| Mounting | Wall/ceiling (included) | ||||
| Operating temperature | -30 to 60° C (-22 to 140° F) | ||||
| Operating humidity | 5 – 95% noncondensing | ||||
| Certifications | CE, FCC, IC | ||||
| Software | |||||
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
||||
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) | ||||
| BSSID | 8 per radio | ||||
| VLAN | 802.1Q | ||||
| Advanced QoS | Per-user rate limiting | ||||
