UAP-AC-HD Overview
The UAP-AC-HD, is an indoor/outdoor, high-performance, 802.11AC Wave 2 dual-band access point, capable of throughput speeds of up to 2533 Mbps and a maximum range of up to 122 meters. Engineered from the ground up to take advantage of 802.11AC Wave 2, the UAP-AC-HD provides unparalleled multi-user support.
Quick Specs

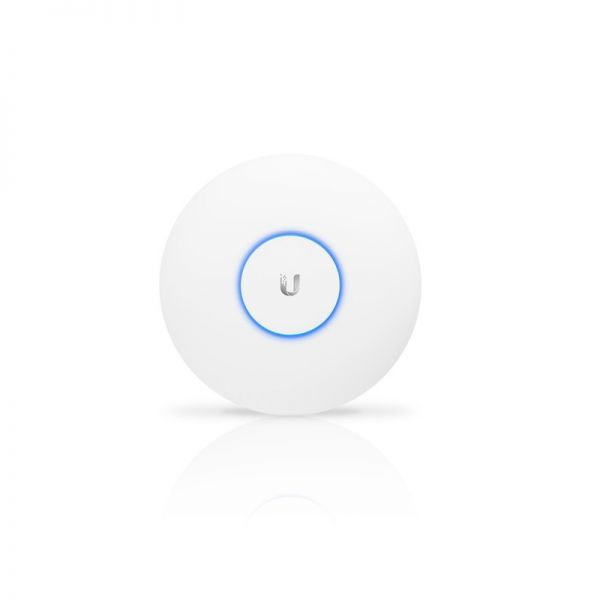

Figure 1 shows the appearance of UAP-AC-HD.
Table 1 shows the Quick Specs.
Product Code | UAP-AC-HD |
Dimensions | ā 220 x 48.1 mm |
Environment | Indoor/Outdoor |
2.4 GHz Radio Rate | 800 Mbps |
5 GHz Radio Rate | 1733 Mbps |
PoE ModeĀ Ā Ā | 802.3at PoE+ |
Ports | (2) 10/100/1000 Ethernet |
WiāFi Users | 500+ Users |
Product Details
Figure 2 shows the front panel of UAP-AC-HD.
Figure 3 shows the back panel of UAP-AC-HD.
UAP-AC-HD provides these features:
HighāDensity Applications Powered by MUāMIMO Technology
802.11ac Wave 2 MUāMIMO (MultiāUser, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time ā significantly increasing multiāuser throughput and overall user experience.
Radio Hardware Acceleration
Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multiāuser throughput and reduced latency
CPU Hardware Acceleration
Dedicated hardware offload for QoS, Guest Control, and Client Management
Optimized for MUāMIMO
Antenna System Optimized for 802.11ac Wave 2 MU-MIMO Beamforming
Beamforming
Data is sent and received using multiple antennas to increase throughput and range.
Advanced Features in UniFi Controller
UniFi is the premiere Software Defined Networking (SDN) solution with seamless integration of highāperformance switching, gateways, and more.
Compare to Similar Items
Table 2 shows the comparison of UAP-AC-HD.
Model
|
UAPāACāPRO | UAPāACāHD |
Dimensions | ā 196.7 x 35 mm | ā 220 x 48.1 mm |
Environment | Indoor/Outdoor | Indoor/Outdoor |
2.4 GHz Radio Rate | 450 Mbps | 800 Mbps |
5 GHz Radio Rate | 1300 Mbps | 1733 Mbps |
PoE Mode | 802.3af PoE/802.3at PoE+ | 802.3at PoE+ |
Ports | (2) 10/100/1000 Ethernet | (2) 10/100/1000 Ethernet |
WiāFi Users | 200 Users | 500+ Users |
