Small and sleek, yet powerful, the 802.11ac 4×4 AP is ideal for enterprises, businesses, and homes. The modern yet discreet design allows placement near users for optimal performance.

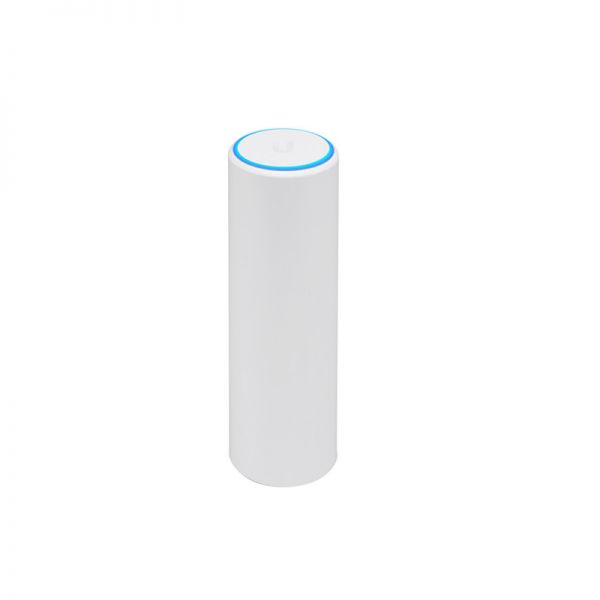

Figure 1 shows the appearance ofĀ UAP-FlexHD.
Table 1 shows the Quick Specs.
| SKU | UAP-FlexHD |
| Dimensions | Ć 48.50 x 159.49 mm (1.90 x 6.28″) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Button | Reset |
| LED | System / Status |
| Power Method | 802.3af |
| Power Supply | 802.3af 48V, 0.32A Gigabit PoE Adapter |
| Max Power Consumption | 10.5W |
| Voltage Range | 44 – 57VDC |
Figure 2 shows the front panel of UAP-FlexHD.
Figure 3 shows the back panel ofĀ UAP-FlexHD.
UAP-FlexHD provides these features:
ā 802.11ac Wave 2 Technology
ā”5 GHz Radio: 802.11ac Wave 2, 4×4 MU-MIMO with Radio Rate of 1.733 Gbps
ā¢2.4 GHz Radio 802.11n: 2×2 MIMO with Radio Rate of 300 Mbps
ā£Indoor and Outdoor Use
ā¤Tabletop, Wall, and Pole Mounting Brackets Included
ā„Seamless Integration and Management with UniFi Network Solution
Table 2 shows the supported devices.
|
Supported Devices |
|
|
US-8 |
UBNT UniFi US-8 Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
US-8-60W |
UBNT US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch, Enterprise |
|
US-8-150W |
UBNT UniFi US-8-150W Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
US-16-150W |
UBNT UniFi US-16-150W Enterprise PoE 16-Port Managed PoE Gigabit Switch |
|
US-24 |
UBNT US-24 UniFi 24-Port Gigabit PoE Compliant Managed Switch, Enterprise |
| US-24-250W | UBNT UniFi US-24-250W Enterprise PoE 24-Port Managed PoE Gigabit Switch |
|
USG-Pro-4 |
UBNT UniFi USG-PRO-4 Security Gateway USG Enterprise Wired Router, 1 Gigabit Ethernet, Dual-Core, 1G |
|
UCK-G2-Plus |
UBNT Wireless AP, AC Gen2 Controller, UCK-G2-Plus, Remote Management |
|
UAP-FlexHD Ceiling Mount |
UBNT UniFi UAP-FlexHD Ceiling Mount, Installation Accessories |
Table 3 shows the comparison.
| Product Name | UAP-FlexHD | UAP-AC-LR | UAP-AC-LITE |
| Dimensions | 48.50 x 159.49 mm | 175.7 x 43.2 mm | 160 x 31.45 mm |
| Environment | Indoor and Outdoor | Indoor | Indoor |
| 2.4 GHz Radio Rate | Ā 300 Mbps | 450 Mbps | 300 Mbps |
| 5 GHz Radio Rate | 1733 Mbps | 867 Mbps | 867 Mbps |
| PoE Mode | 802.3af &
48V POE |
802.3af/A PoE & 24V PoE | 802.3af/A PoE & 24V PoE |
| Networking InterfaceĀ | (1)10/100/1000 Ethernet Port | (1)10/100/1000 Ethernet | (1)10/100/1000 Ethernet |
UAP-FlexHD Specification |
|
| Dimensions | 48.50 x 159.49 mm (1.90 x 6.28″) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Button | Reset |
| LED | System / Status |
| Power Method | 802.3af |
| Power Supply | 802.3af 48V, 0.32A Gigabit PoE Adapter |
| Max Power Consumption | 10.5W |
| Voltage Range | 44 – 57VDC |
| Operating Frequency | 2.4 GHz 5 GHz |
| Max TX Power EIRP | 2.4 GHz: 23 dBm 5 GHz: 26 dBm |
| Throughput | 2.4 GHz: 300 Mbps 5 GHz: 1733 Mbps |
| Antenna Gain | 2.4 GHz: 1.6 dBi 5 GHz: 4 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Mounting | Ceiling / Pole / Tabletop / Wall |
| Operating Temperature | -30 to 70Ā° C (-22 to 158Ā° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
